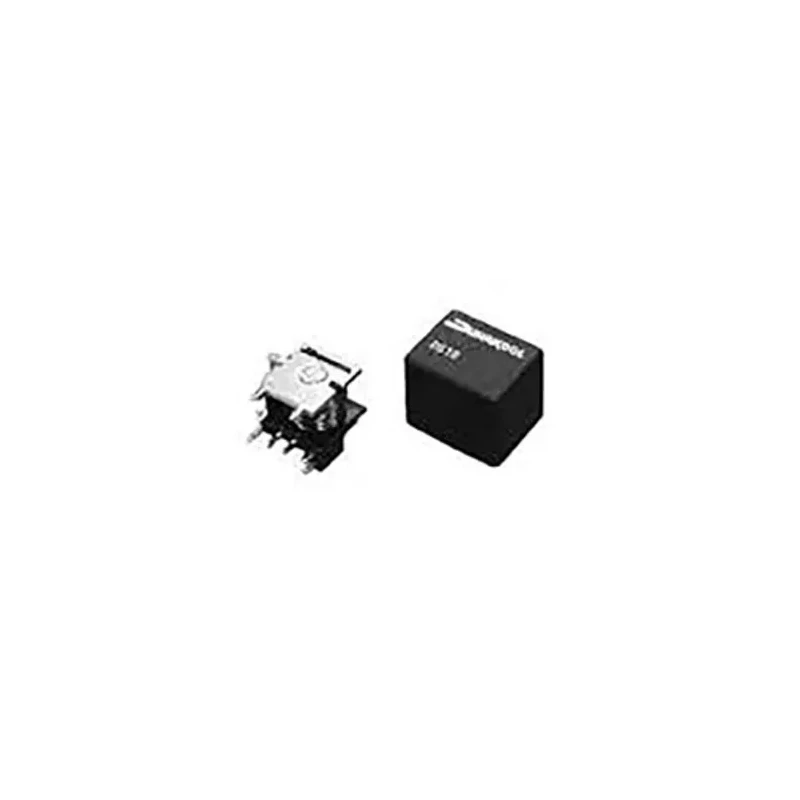

Durakool Automotive Relay 12V Coil Voltage 1.5W Coil Power 60A Switching Current SPDT DG19-7011-35-1012-11
Specifications
| Country of Origin | China |
|---|---|
| Brand | Durakool |
| Height | 21.4mm |
| Length | 26.5mm |
| Model | DG19-7011-35-1012-11 |
| Depth | 21.5mm |
| Mount Type | PCB |
| Contact Material | Silver Tin Oxide Indium Oxide |
| Series | DG19 |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | PCB Terminal |
| Number of Poles | 1 |
| Coil Resistance | 90Ω |
| Coil Power | 1.5W |
| Isolation Coil To Contact | 500Vrms |
Key Features
- The relay uses a SPDT contact configuration for flexible switching.
- It is designed for PCB mounting with PCB terminals for easy integration.
- Capable of operating in temperature ranges from -40°C to 125°C.
- Contact material includes silver tin oxide indium oxide for reliable conductivity.
- This automotive relay has an isolation voltage of 500Vrms between coil and contacts.
- High resistance to inrush current enhances durability in automotive use.
- RoHS compliant, ensuring environmental and safety standards.
Product Description
Durakool DG19-7011-35-1012-11 is a miniature automotive relay designed for PCB mounting applications requiring high reliability and long life cycles. Featuring a 12V coil voltage and a coil power of 1.5W, this relay supports a switching current of 60A, making it suitable for general-purpose automotive and industrial relay needs.
The relay's SPDT contact configuration provides flexible switching options, while its PCB terminals simplify installation on printed circuit boards. It withstands extreme operational temperatures ranging from -40°C to 125°C, ensuring stable performance in harsh environments.
With contact materials composed of silver tin oxide and indium oxide, the relay offers excellent conductivity and durability. The isolation voltage between the coil and contacts reaches 500Vrms, enhancing safety and operational reliability.

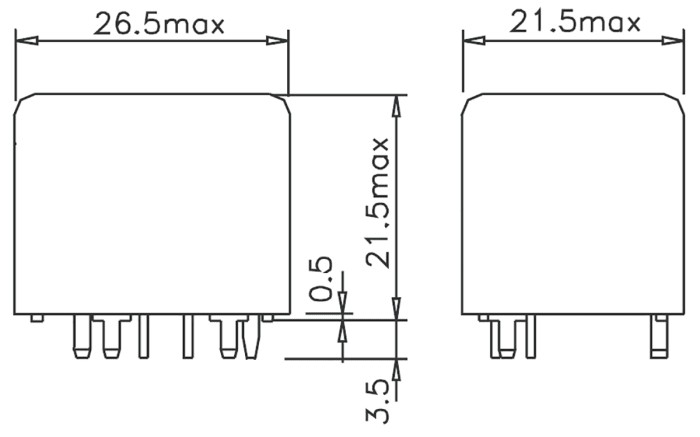

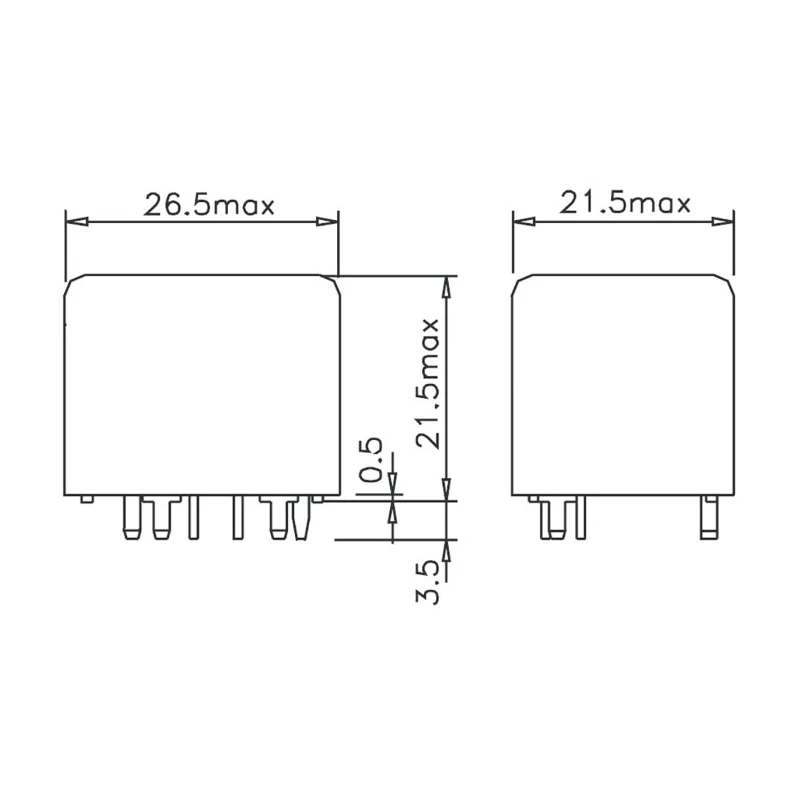

This product’s compact size with dimensions 26.5mm length, 21.4mm height, and 21.5mm depth makes it ideal for space-constrained industrial and automotive applications. The DG19 series is known for its high resistance to inrush current, providing enhanced durability and performance longevity.
The relay is RoHS compliant, supporting environmentally responsible manufacturing and usage standards. It is made in China, reflecting quality manufacturing standards for the automotive relay market.
The relay uses a SPDT contact configuration for flexible switching. It is designed for PCB mounting with PCB terminals for easy integration. Capable of operating in temperature ranges from -40°C to 125°C. Contact material includes silver tin oxide indium oxide for reliable conductivity.
This automotive relay has an isolation voltage of 500Vrms between coil and contacts. Compact dimensions: length 26.5mm, height 21.4mm, depth 21.5mm, suitable for miniature power relay applications. High resistance to inrush current enhances durability in automotive use.
RoHS compliant, ensuring environmental and safety standards.
This product is ideal for industrial, automotive, and manufacturing electronic applications requiring precise relay performance. Explore more Automotive Relays and electrical components in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates at a coil voltage of 12V.
It supports a maximum switching current of 60A.
The dimensions are 26.5mm in length, 21.4mm in height, and 21.5mm in depth.
It features a Single Pole Double Throw (SPDT) contact configuration.
It can operate in temperature ranges from -40°C to 125°C.
It is designed with PCB terminals for easy integration into printed circuit boards.
The contact materials include silver tin oxide and indium oxide, providing reliable conductivity.
The isolation voltage between the coil and contacts is 500Vrms.
The coil power is 1.5W.
Yes, it is RoHS compliant, ensuring it meets environmental and safety standards.
This relay is manufactured in China.
It belongs to the DG19 series of automotive relays.
