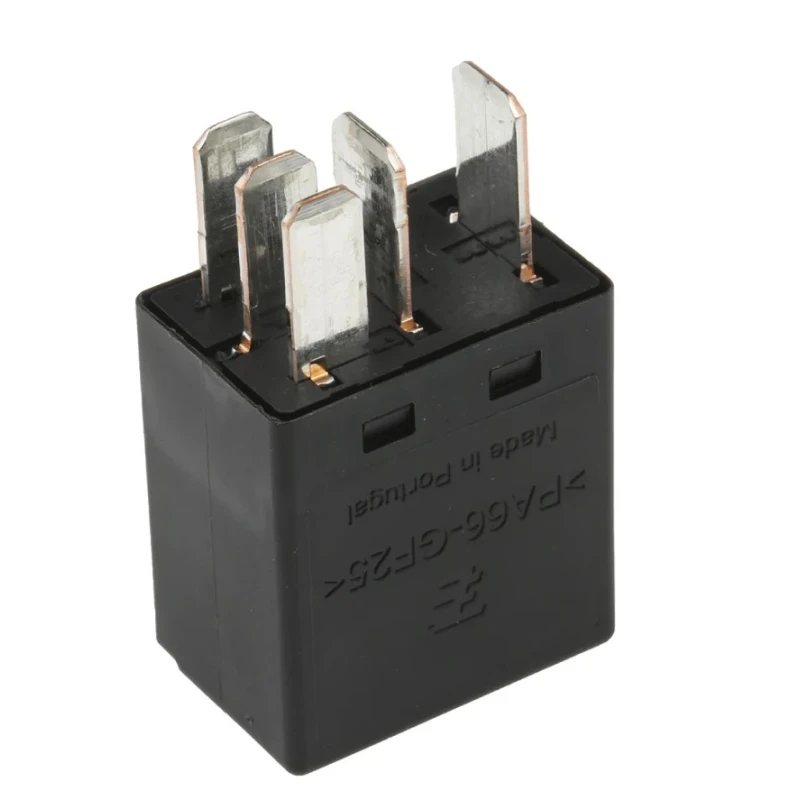

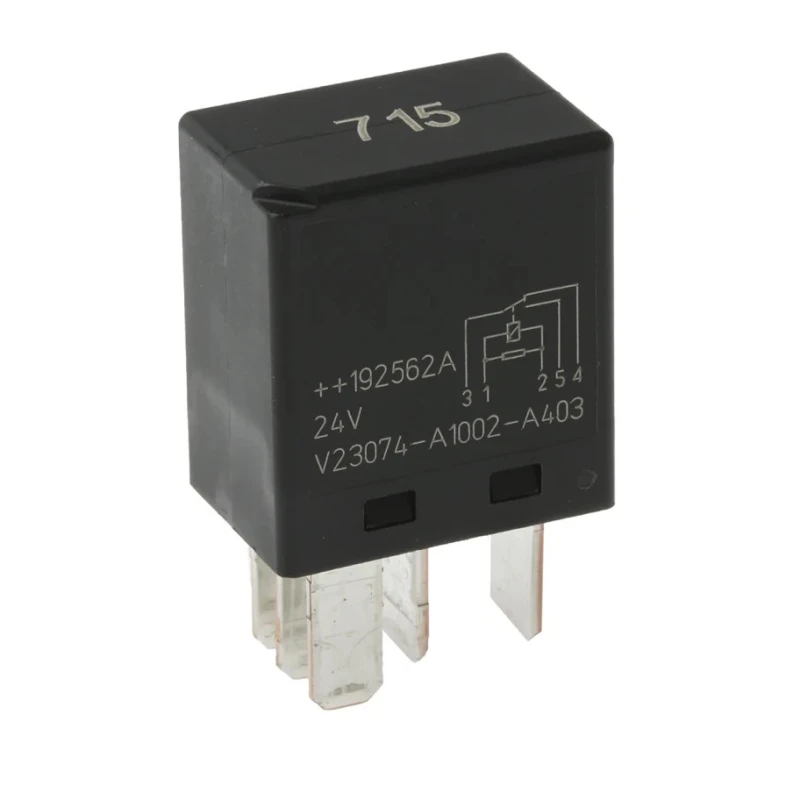

TE Connectivity Automotive Relay SPDT 24V DC Coil Voltage 30A Switching Current V23074A1002A403 3-1393292-8

TE Connectivity V23074A1002A403 3-1393292-8 is a high-quality automotive relay designed for reliable switching in vehicle electrical systems. This SPDT (Single Pole Double Throw) relay operates at a coil voltage of 24V DC and supports a limiting continuous current of 30A, making it suitable for demanding automotive control circuits.

The relay features a coil power consumption of 1.6W and a coil resistance of 430 ohms, ensuring efficient energizing and reliable operation. Its quick connect terminals facilitate fast and secure wiring in automotive installations.

Constructed with silver alloy contacts, the relay ensures low contact resistance and excellent conductivity, enhancing the performance and longevity of vehicle electrical assemblies. The relay body is rated IP54, which protects it from dust ingress and water splashes, suitable for harsh automotive environments.

Operating reliably within a broad ambient temperature range from -40°C to +125°C, it is ideal for various automotive applications including lock control circuits, seat adjustment motors, window defoggers, and starter solenoid switches. The coil-to-contact isolation rating of 500V provides additional electrical safety for connected systems.

Compactly sized at 23mm length, 36.6mm height, and 15.5mm depth, this automotive relay is designed for easy integration into tight spaces within vehicle electrical panels. Manufactured in Portugal, it meets high standards of quality and durability expected in automotive components.

The relay incorporates SPDT contact configuration suitable for versatile switching tasks. Equipped with a coil power of 1.6W and coil resistance of 430 ohms ensuring reliable actuation. Features quick connect terminal type allowing for efficient and secure electrical connections.

Robust ambient operating temperature range from -40°C to +125°C for extreme environment durability. Contact material composed of silver alloy providing excellent conductivity and corrosion resistance. IP54 rated for protection against dust ingress and water splashes.

Precise isolation between coil and contact rated at 500V ensuring electrical safety. Compact dimensions of 23mm length, 36.6mm height, and 15.5mm depth optimizing space utilization. Designed and manufactured in Portugal adhering to strict quality standards.

This automotive relay is essential for industrial and commercial automotive electrical applications, providing reliable switching for safety and control systems. Compatible with automotive manufacturing, repair, and aftermarket service sectors.
