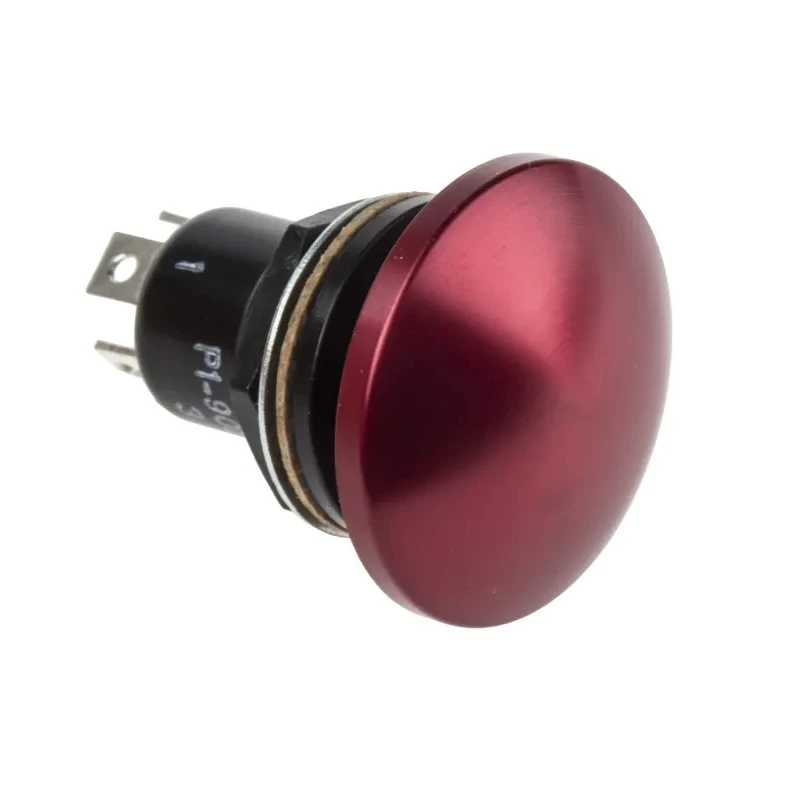

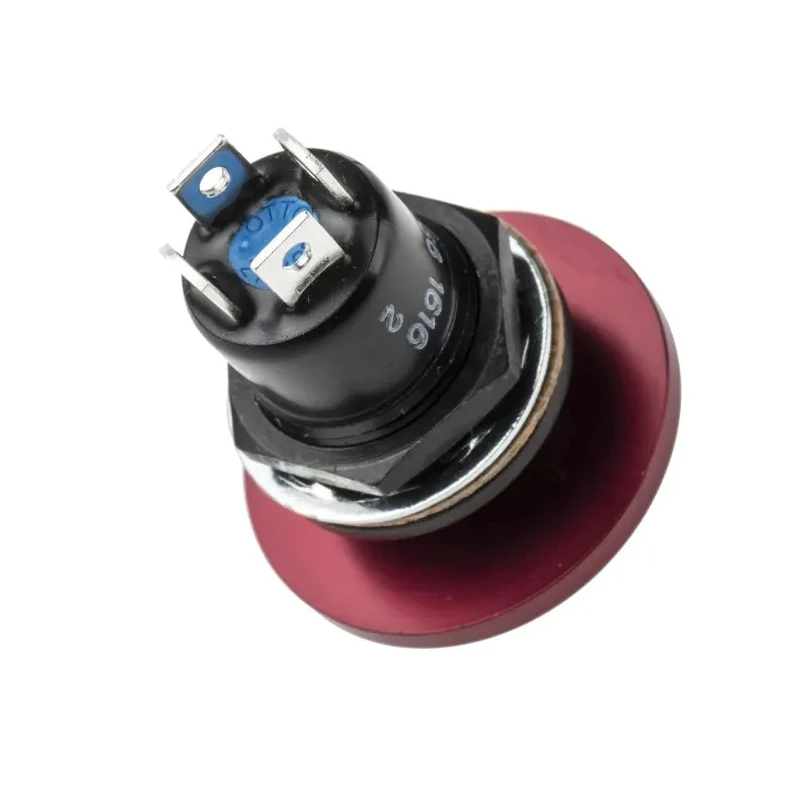

Otto Push Button Switch SPDT Momentary Panel Mount Violet LED IP68S 115 V AC P1-90266
Specifications
| Country of Origin | India |
|---|---|
| Brand | Otto |
| Operating Temperature Range | -55 °C to +85 °C |
| Model | P1-90266 |
| IP Rating | IP68S |
| Mount Type | Panel |
| Series | P1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -55°C |
| Terminal type | Solder |
| Standards/Approvals | UL, CSA, WEEE, REACH |
| LED Colour | Violet |
| Switch Operation | Momentary |
| Actuator Colour | Red |
| Contact DC Voltage | 115V |
| Actuator Style | Push Button |
| Switch Contact Current | 10A |
| Mechanical Life | 250,000 cycles |
| Contact AC Voltage | 115V ac |
| Electrical Life | 25,000 cycles at full load |
Key Features
- The switch features a red anodized aluminium alloy mushroom pushbutton actuator for durability.
- Electrical life rated at 25,000 cycles under full load ensures long-term operation.
- Mechanical life extends to 250,000 cycles, suitable for frequent usage.
- Operating temperature ranges from -55 °C to +85 °C, allowing use in harsh environments.
- IP68S rating provides excellent ingress protection against dust and liquids.
- The switch has a SPDT contact configuration and a 10A switch contact current capacity.
- Includes hex nut, lock washer, and panel seal gasket for secure mounting.
- Compliance with UL, CSA, WEEE, and REACH standards ensures quality and safety.
Product Description
Otto P1-90266 Push Button Switch is a momentary contact device designed for panel mounting with a durable anodized aluminium alloy red mushroom-shaped actuator. It operates at 115 V AC, featuring SPDT contact configuration and violet LED indication, suitable for industrial and automation environments.
This switch offers exceptional reliability with an electrical life of 25,000 cycles at full load and a mechanical life reaching 250,000 cycles, ensuring extended service in demanding applications. It withstands extreme temperatures from -55 °C up to +85 °C, making it ideal for harsh condition installations.
Rated IP68S, the switch is well protected against ingress of dust and liquids, guaranteeing operational integrity in challenging environments. The 10A contact current rating supports medium power loads.
Installation is facilitated by included hex nut, lock washer, and panel seal gasket, ensuring secure and professional panel mounting. Its compliance with multiple standards including UL, CSA, WEEE, and REACH underscores its safety and environmental considerations.
The switch features a red anodized aluminium alloy mushroom pushbutton actuator for durability. Electrical life rated at 25,000 cycles under full load ensures long-term operation. Mechanical life extends to 250,000 cycles, suitable for frequent usage.
Operating temperature ranges from -55 °C to +85 °C, allowing use in harsh environments. IP68S rating provides excellent ingress protection against dust and liquids. The switch has a SPDT contact configuration and a 10A switch contact current capacity.
Includes hex nut, lock washer, and panel seal gasket for secure mounting. Compliance with UL, CSA, WEEE, and REACH standards ensures quality and safety.
This push button switch is suitable for use in industrial automation, electrical control panels, manufacturing equipment, and other commercial and industrial applications requiring reliable panel-mounted momentary switches.
Explore more Push Button Switches and electrical components on EnvMart for your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The electrical life of this push button switch is rated at 25,000 cycles under full load.
It features a Single Pole Double Throw (SPDT) contact configuration.
The maximum operating temperature for this switch is +85 °C.
This switch has an IP68S rating, providing excellent protection against dust and liquids.
The switch has a contact current capacity of 10A.
It includes a hex nut, lock washer, and panel seal gasket for secure mounting.
The mechanical life of this switch extends to 250,000 cycles, suitable for frequent usage.
The operating temperature range is from -55 °C to +85 °C.
It has a red anodized aluminium alloy mushroom pushbutton actuator.
This switch complies with UL, CSA, WEEE, and REACH standards.
The terminal type for this switch is solder.
It is suitable for industrial automation, electrical control panels, and manufacturing equipment.
