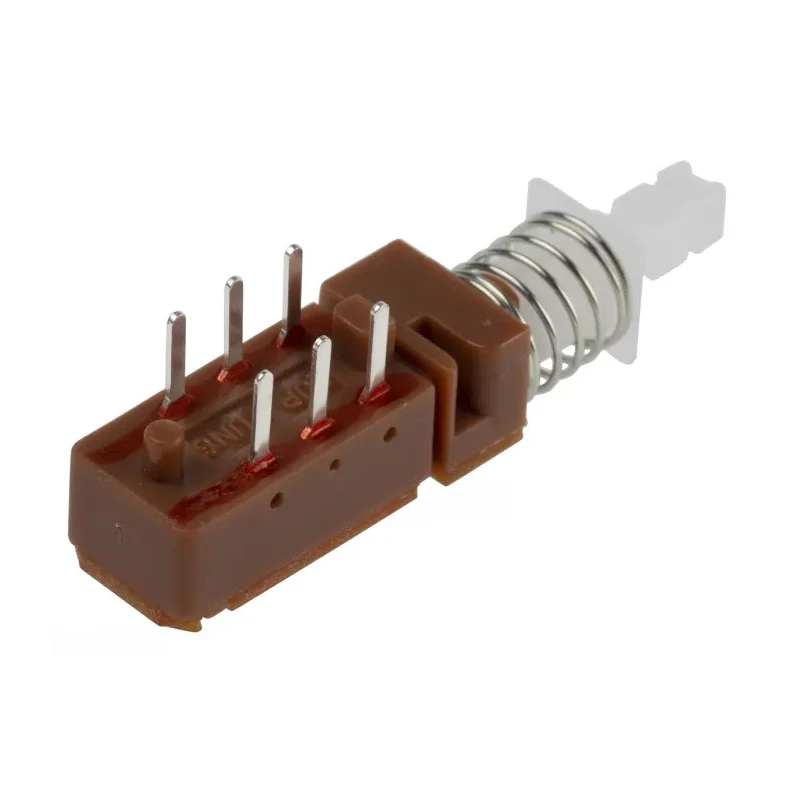

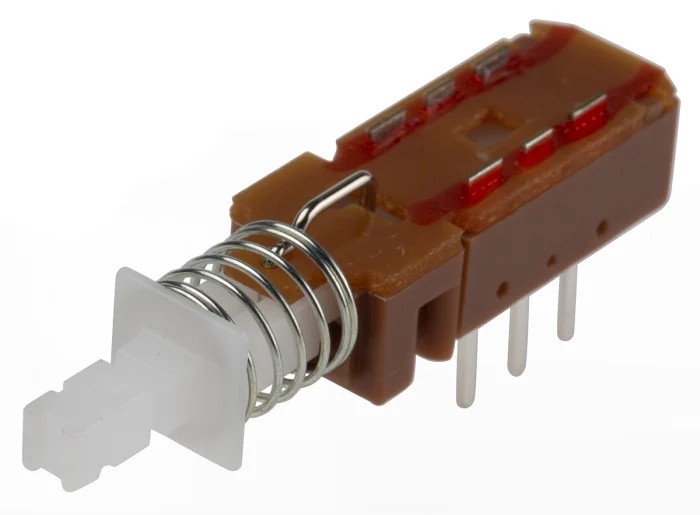

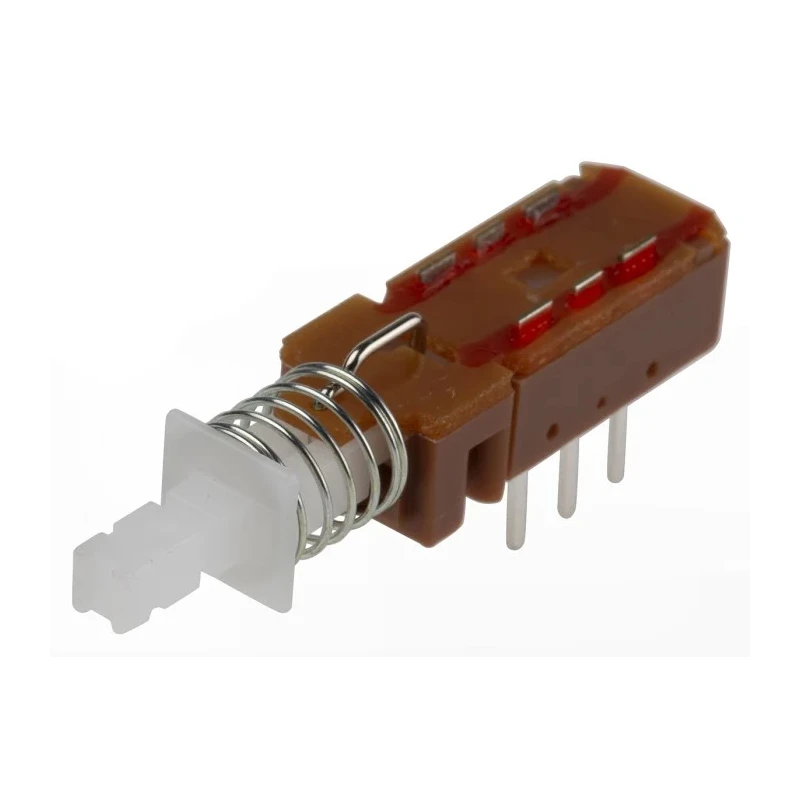

KNITTER-SWITCH Miniature Push Button Switch , Latching, DPDT, PCB Mount, White LED, IP40 IP67, 100 V AC 100 MPBS-22H01-LF-14
Specifications
| Country of Origin | China |
|---|---|
| Brand | KNITTER-SWITCH |
| Model | MPBS-22H01-LF-14 |
| IP Rating | IP40, IP67 |
| Mount Type | PCB |
| Series | MPB |
| Maximum Operating Temperature | 120°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-Off |
| Terminal type | PCB Pin |
| Standards/Approvals | CSA, UL |
| LED Colour | White |
| Switch Operation | Latching |
| Actuator Colour | Silver |
| Contact DC Voltage | 100V |
| Actuator Style | Plunger |
| Switch Contact Current | 1A |
| Contact AC Voltage | 100V ac |
Key Features
- The switch features a silver plunger actuator with a latching operation mode for secure on-off control.
- It offers dual pole double throw (DPDT) contacts suitable for various circuit configurations.
- The switch is rated for 100 V AC and 100 V DC contact voltage with a 1 A contact current capacity.
- IP40 and IP67 ingress protection ratings ensure reliability in moderate to high moisture environments.
- Silver plated terminals and contacts provide long mechanical life of at least 30,000 operations.
- The maximum operating temperature rating is 120°C, supporting demanding applications.
- The white LED illumination aids visual status indication without affecting switching function.
- PCB pin terminals allow easy and stable mounting on printed circuit boards.
Product Description
KNITTER-SWITCH MPBS-22H01-LF-14 miniature push button switch is a highly reliable, latching type switch designed for printed circuit board mounting. With a plunger-style silver actuator and white LED illumination, it allows for clear user interface feedback and durable operation.
This switch features a DPDT (Double Pole Double Throw) contact configuration suitable for complex switching needs in automation and electrical circuits. It supports contact voltages of 100 V AC and 100 V DC with a maximum contact current of 1 A, making it versatile for low voltage control applications.
The ingress protection ratings IP40 and IP67 ensure this switch performs reliably in environments with moderate to high dust and moisture exposure. It can operate safely up to temperatures of 120°C, supporting industrial and commercial use cases.
Silver plated terminals and contacts contribute to an extended mechanical life of at least 30,000 operations, ensuring long-term durability. PCB pin type terminals enable easy and firm integration into circuit boards, which is essential for compact electronic device layouts.
The switch uses a silver-coloured plunger actuator with latching operation for stable on/off control. White LED illumination provides clear status indication while maintaining the switch functionality. Rated for 100 V contact voltage in both AC and DC forms with a 1 A switching current.
IP40 and IP67 rating protect against environmental contaminants and moisture ingress. Complies with recognized CSA and UL safety standards, guaranteeing performance and safety. Designed for industrial, automation, control panels, and electrical equipment use cases.
Overall, this KNITTER-SWITCH MPBS series miniature push button switch offers a robust solution for PCB mounting applications requiring precise switching control, durability, and environmental protection. Its reliable performance makes it well suited for electrical, automation, manufacturing, and commercial equipment.
Explore our full range of Push Button Switches and components to find compatible products tailored to your electrical and automation system requirements on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a dual pole double throw (DPDT) contact configuration, which is suitable for various circuit configurations.
The maximum operating temperature rating for this switch is 120°C, making it suitable for demanding applications.
It has IP40 and IP67 ingress protection ratings, ensuring reliability in moderate to high moisture and dust environments.
The switch is rated for contact voltages of 100 V AC and 100 V DC, with a contact current capacity of 1 A.
This model features PCB pin terminals, allowing for easy and stable mounting on printed circuit boards.
It uses a plunger-style actuator, which provides a stable on/off control mechanism.
The switch is designed for a mechanical life of at least 30,000 operations, ensuring long-term durability.
The illumination provided by this switch is white, aiding in visual status indication without affecting the switching function.
It complies with recognized CSA and UL safety standards, ensuring performance and safety in its applications.
The switch configuration is latching, allowing for secure on-off control.
The KNITTER-SWITCH MPBS-22H01-LF-14 is manufactured in China.
This switch is designed for use in industrial, automation, control panels, and electrical equipment applications.
