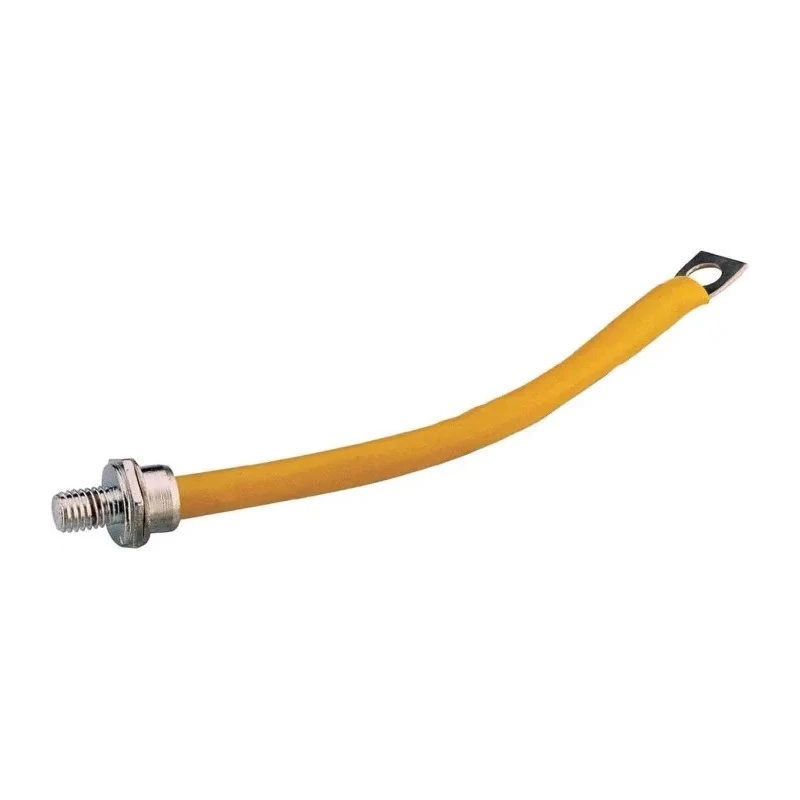

Semikron Danfoss High Voltage Rectifier Diode 1200 V 95 A Stud Cathode Mount SKR 70/12

Semikron Danfoss SKR 70/12 high voltage rectifier diode offers robust and reliable performance for industrial power electronics. This stud cathode diode is housed in a standard E-12 stud-mount package, providing excellent thermal coupling between the device and heat sink for efficient heat dissipation. Rated for a peak reverse repetitive voltage of 1200 V and a maximum continuous forward current of 95 A, it is built to handle demanding rectification tasks in various industrial and commercial applications.

The diode’s stud cathode configuration means the cathode is connected to the stud body, optimizing mounting reliability and thermal transfer. It supports a peak non-repetitive forward surge current of 700 A, providing protection against transient spikes during operation. With a maximum operating temperature of 180°C and a minimum of -40°C, this diode ensures long-lasting performance in harsh environmental conditions.

Its maximum forward voltage of only 1.6 V helps reduce power losses, boosting overall system efficiency. The compact physical dimensions including a 146 mm height and length, along with a diameter of 17 mm and width of 12 mm, allow for integration in space-constrained assemblies.

This diode is ideal for high power rectification tasks in industrial machines, power supplies, manufacturing equipment, and other electrical systems requiring reliable high current and high voltage components. The robust and hermetically sealed stud-mount case ensures durability and longevity in demanding electrical environments.

High voltage rating of 1200 V for demanding industrial power rectification. Rated continuous forward current of 95 A for robust current handling. Stud cathode mounting ensures excellent thermal management and stability. Durable E-12 package with hermetically sealed case construction.

Wide operating temperature range from -40°C to 180°C for harsh environments. Low maximum forward voltage of 1.6 V reduces power dissipation. Peak surge capability up to 700 A for transient robustness. Compact dimensions allow integration into diverse power systems.

Housed in a robust stud mounting case for reliable industrial usage.

Semikron Danfoss products are well-suited for use in industrial electronics, power conversion, and manufacturing sectors. Explore the wide range of semiconductor components for your system design at EnvMart.
