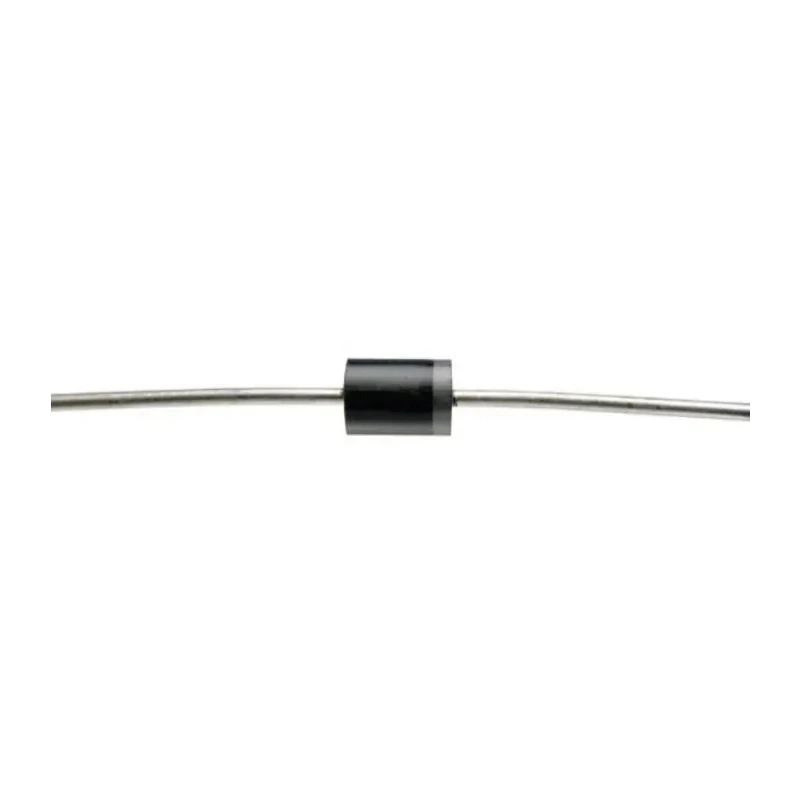

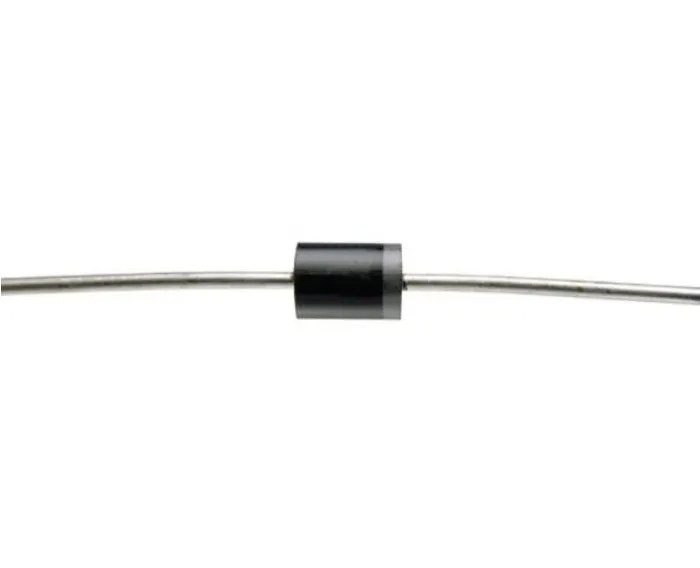

HY Electronic Corp Schottky Barrier Rectifier Diode 45 V 15 A 2-Pin Through Hole R-6 Package 15SQ045
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 9.1mm |
| Brand | HY Electronic Corp |
| Height | 8.6mm |
| Length | 9.1mm |
| Model | 15SQ045 |
| Width | 55.6mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 200°C |
| Case | Moulded plastic JEDEC R-6 |
| Package Type | R-6 |
| Minimum Operating Temperature | -55°C |
| Polarity | Colour band indicates cathode |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 15A |
| Peak Reverse Repetitive Voltage Vrrm | 45V |
| Diode Configuration | Single |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 350A |
| Maximum Forward Voltage Vf | 550mV |
Key Features
- Features a 2-pin configuration in an R-6 package for through hole mounting.
- Peak Reverse Repetitive Voltage rated at 45 V with single diode configuration.
- Maximum continuous forward current of 15 A and peak surge current of 350 A.
- Operates between -55°C to 200°C with a maximum forward voltage of 550 mV.
- Constructed with moulded plastic JEDEC R-6 case and colour band indicating cathode polarity.
- Suitable for photovoltaic solar cell bypass diode protection and polarity protection circuits.
- Low power loss with high surge and current capability.
- Ideal for high frequency inverter and freewheeling circuit applications.
Product Description
The HY Electronic Corp 15SQ045 Schottky Barrier Rectifier Diode is a high-performance semiconductor designed for applications requiring a peak reverse voltage of 45 volts and a continuous forward current capacity of 15 amps. Packaged in a moulded plastic JEDEC R-6 through hole format with a 2-pin configuration, this diode features a colour band marking the cathode for easy identification.
This diode supports peak non-repetitive forward surge currents up to 350 amps and maintains reliable operation over a broad temperature range from -55°C up to 200°C, making it suitable for demanding industrial environments.
Its low forward voltage drop of 550 mV results in reduced power dissipation, enhancing efficiency in power applications. The device is primarily used for photovoltaic solar cell applications functioning as bypass diode protection, preventing damage from reverse currents without reverse bias voltage. It also finds use in polarity protection, freewheeling circuits, and high frequency inverter designs.
Built to withstand typical operating and environmental stresses with a peak reverse current of only 500 microamperes, the diode is ideal for tasks requiring fast switching and high surge capabilities.
2-pin R-6 package ensures easy mounting and robust physical integrity. Designed to fulfill the requirements of renewable energy systems and other power electronics industries. Colour band polarity marking assists in error-free installation.
Non-automotive standard component with country of origin China.
This product is categorized under Schottky Diodes & Rectifiers in the semiconductor component space, making it a key component for electrical engineers and system designers requiring efficient rectification at moderate voltages and currents.
Explore more semiconductor solutions and related components in the Electronics & Electricals category on EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage of the 15SQ045 Schottky Barrier Rectifier Diode is rated at 45 V.
This model can handle a maximum continuous forward current of 15 A.
The diode operates within a temperature range of -55°C to 200°C.
The maximum forward voltage drop of this diode is 550 mV.
It supports peak non-repetitive forward surge currents up to 350 A.
The cathode polarity is indicated by a colour band on the diode.
This diode features a through hole mounting type in an R-6 package.
The dimensions of this diode are 9.1 mm in diameter, 9.1 mm in length, and 8.6 mm in height, with a width of 55.6 mm.
The peak reverse current for the 15SQ045 is 500 μA.
This diode is suitable for photovoltaic solar cell bypass protection, polarity protection circuits, and high frequency inverter applications.
The diode is constructed with a moulded plastic JEDEC R-6 case.
The brand of this Schottky diode is HY Electronic Corp.
