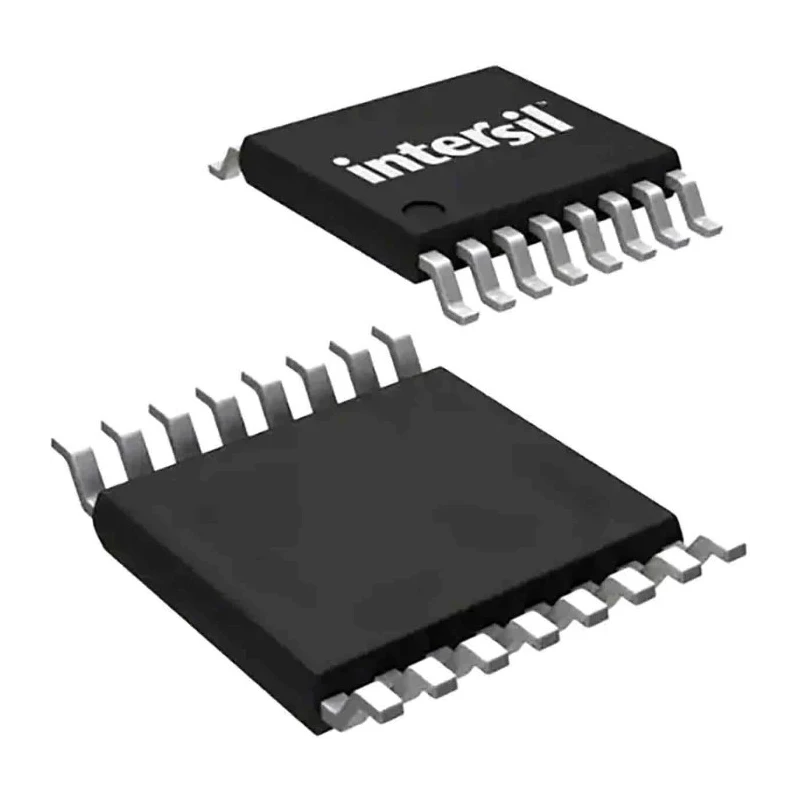

Renesas Electronics Multiplexer 4 Ttl/Cmos Quad SPST 16-Pin SOIC HI9P0201HS-5Z
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Model | HI9P0201HS-5Z |
| Mount Type | Surface |
| Output type | CMOS |
| Series | HI-201HS |
| Configuration | Quad SPST |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | IPC/JEDEC J STD-020C, Pb Free |
| Pin Count | 16 |
| Number of Elements per Chip | 4 |
| Maximum Supply Voltage | 36V |
| Logic Family | Ttl/Cmos |
| Minimum Supply Voltage | -15V |
| Multiplexer/Demultiplexer | Multiplexer |
| Maximum On State Resistance | 75Ω |
Key Features
- Features four independently selectable single-pole single-throw switches.
- Operates with a wide supply voltage range from -15V to 36V.
- Has a maximum ON state resistance of 75 ohms for efficient signal transmission.
- Wide operating temperature from -55°C to 125°C ensures robust performance.
- Compatible with TTL/CMOS logic families and surface-mount design.
- Pin compatible with industry standard HI-201 series for easy replacement.
- Provides symmetrical analog current switching up to 80mA.
- Conforms to IPC/JEDEC J STD-020C and is Pb-free for environmental compliance.
Product Description
Renesas Electronics HI9P0201HS-5Z is a high-performance multiplexer featuring four TTL/CMOS quad SPST switches housed in a 16-pin SOIC surface-mount package. It offers fast switching speeds and low ON resistance, facilitating efficient analog signal routing in complex electronic systems.
This device supports a wide supply voltage range from -15V to 36V, enabling its use across various industrial and commercial environments. Its maximum ON state resistance of 75 ohms ensures minimal signal loss, while the symmetrical analog current capability of up to 80mA allows for balanced performance.
Designed for robust operation, this multiplexer operates reliably in temperature conditions ranging from -55°C to 125°C. Its TTL and CMOS logic compatibility make it suitable for integration in a broad array of digital and analog circuit designs.
The HI9P0201HS-5Z is pin compatible with the standard HI-201 switches, simplifying upgrades or replacements within existing systems. The SOIC package type supports surface mounting for streamlined production and assembly.
Certified under IPC/JEDEC J STD-020C and compliant with Pb-free regulations, this product meets stringent quality and environmental standards. Features four independently selectable SPST switches. Wide analog voltage range from ±15V supplies.
Low charge injection for signal integrity. Fast switching speeds suitable for telecom and instrumentation. Pin compatible with industry standards aiding design replacement. Surface mount SOIC package for efficient PCB assembly.
Conforms to industrial quality and environmental standards. Ideal for industrial electronics, communications, and instrumentation systems. Explore more semiconductors and multiplexer ICs in the EnvMart catalog for reliable and efficient component sourcing.
Explore more products in our Multiplexer & Demultiplexer ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates with a wide supply voltage range from -15V to 36V.
The maximum ON state resistance is 75 ohms, ensuring efficient signal transmission.
This multiplexer operates reliably within a temperature range of -55°C to 125°C.
It features four independently selectable single-pole single-throw (SPST) switches.
The HI9P0201HS-5Z is housed in a 16-pin SOIC surface-mount package.
It has a pin count of 16, suitable for surface mounting.
It conforms to IPC/JEDEC J STD-020C and is Pb-free for environmental compliance.
It can switch symmetrical analog currents up to 80mA.
The output type is CMOS, facilitating compatibility with various electronic systems.
Yes, it is pin compatible with the industry standard HI-201 series, allowing for easy replacement.
It is suitable for industrial electronics, communications, and instrumentation systems.
