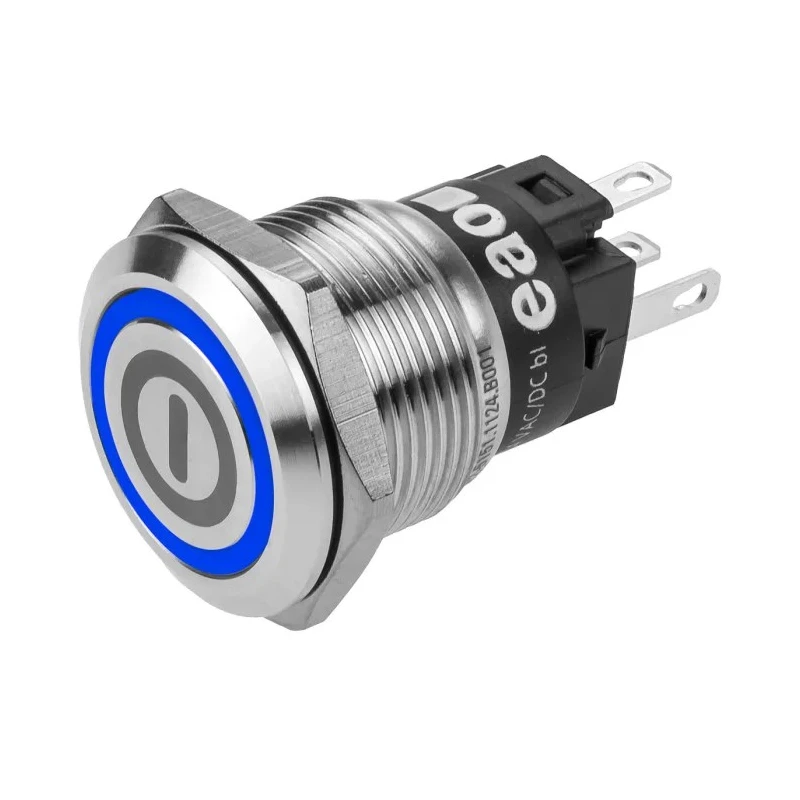

EAO 82 Series Illuminated Momentary Push Button Switch Panel Mount, 19 mm Cutout, SPDT, Blue LED, IP65 82-5151.1124.B001

EAO 82-5151.1124.B001 is an illuminated momentary push button switch engineered for panel mounting with a precise 19 mm cutout size. This SPDT switch features blue LED illumination to indicate operation status clearly in both industrial and commercial settings.

Constructed to meet IP65 and IP67 ratings, the switch is protected against dust and water ingress, making it suitable for exposed public areas such as ticketing and vending machines, as well as industrial environments including machinery and factory equipment.

The switch actuator is round styled and provides a vandal-resistant, impact-resistant design enhanced with gold-plated silver contacts for optimum electrical reliability with low voltages and currents. EAO's 82 Series switch offers excellent tactile feedback and a long service life exceeding one million operation cycles, ensuring durability and reliability in critical applications.

Supporting a contact current of 3A and capable of handling 240 V AC and 240 V DC voltage, this push button switch is ideal for control systems in lifting and moving equipment like elevators, building security access control, audio/video equipment, medical instruments, and the food industry where corrosion-resistant versions are also available on request.

SPDT contact configuration for flexible switching needs. Blue LED illumination provides clear visual indication. IP65 and IP67 rated for dust and water resistance. Robust round actuator with vandal-resistant design. Gold-plated silver contacts for reliable performance.

Long service life of over 1 million cycles. Wide operating temperature range from -30°C to 70°C. Application suitability in industrial, medical, and commercial sectors. Explore further Push Button Switches from EAO and other top brands in our Electronics & Electricals category at EnvMart for all your industrial automation and control needs.
