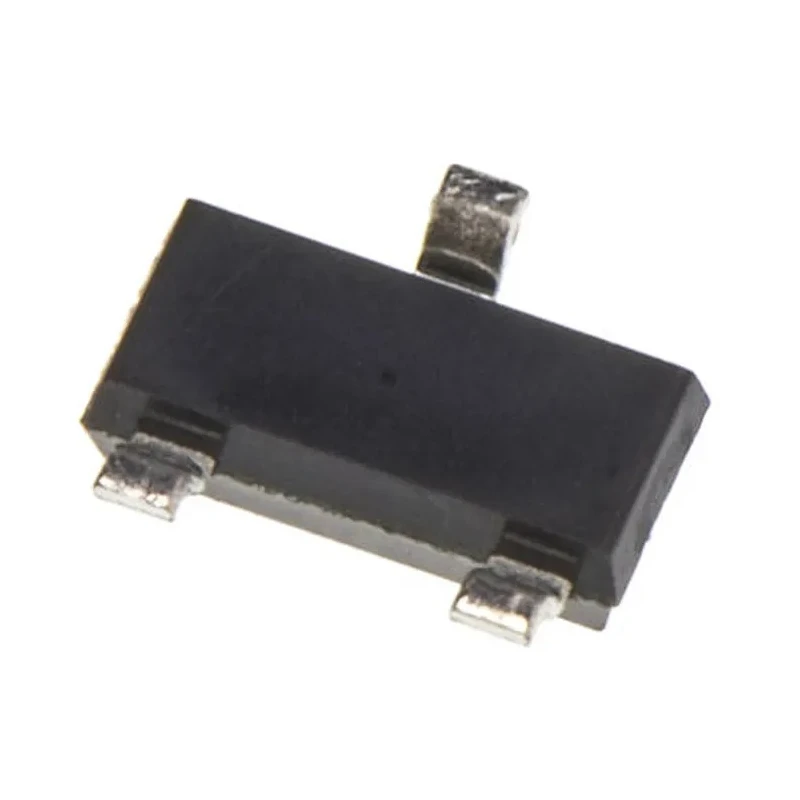

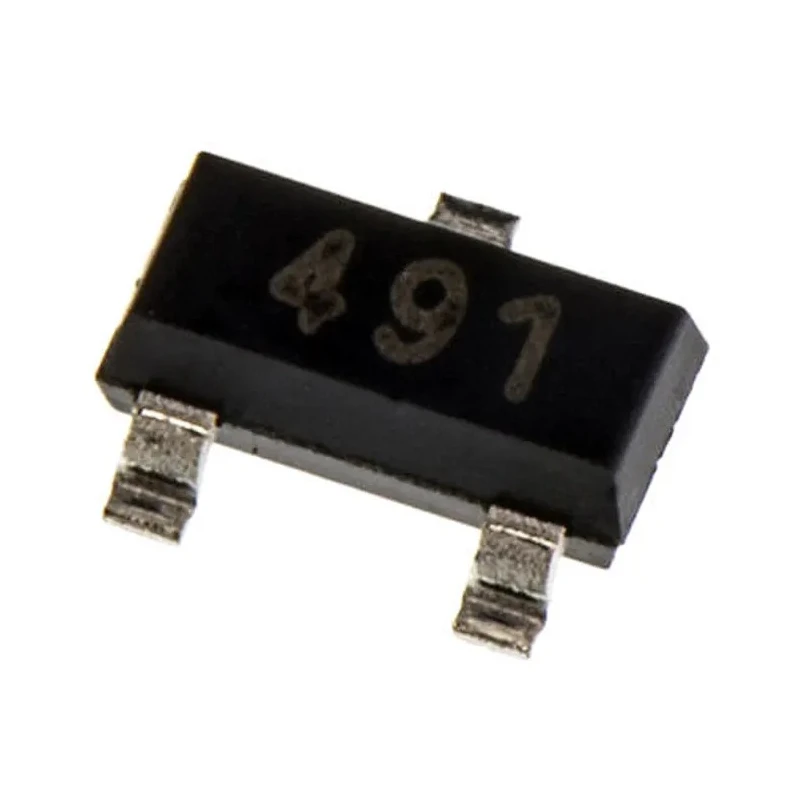

DiodesZetex Digital Transistor PNP 3-Pin SOT-23 -100 mA, 250 MHz Frequency, 200 mW Power Dissipation DDTA124ECA-7-F

DiodesZetex DDTA124ECA-7-F Digital Transistor is a high-performance PNP transistor designed for surface-mount applications with a 3-Pin SOT-23 package. It offers a maximum DC collector current of -100 mA and a transition frequency up to 250 MHz, making it suitable for fast switching and digital signal tasks.

The device features internal bias resistors allowing direct drive from digital signals, simplifying circuit design and reducing component count. It supports operation over a broad temperature range from -55°C up to 150°C, ensuring reliability in demanding industrial and automotive environments.

This transistor dissipates up to 200 mW of power, suitable for low to moderate power switching applications. The compact package dimensions (3 mm length, 2.5 mm width, 1.1 mm height) enable high-density circuit assembly in space-constrained electronics.

Compliance with RoHS directives ensures environmentally friendly manufacturing, while its Automotive Standard AEC-Q101 ratings guarantee robust performance for vehicle electronic systems.

Typical applications include general-purpose switching, digital logic interface circuits, automotive electronics, and industrial control systems. This transistor features a single configuration with integrated resistors for easy digital input drive.

Supports surface mounting and complies with RoHS standards. Operates reliably between -55°C to 150°C operating temperatures. Maximum power dissipation is 200 mW, suitable for low power applications. Compact 3-Pin SOT-23 package with dimensions 3 mm × 2.5 mm × 1.1 mm.

Designed according to Automotive Standard AEC-Q101 for enhanced durability. Explore DiodesZetex products on EnvMart for reliable and quality Digital Transistors suited for electronics manufacturing and design.
