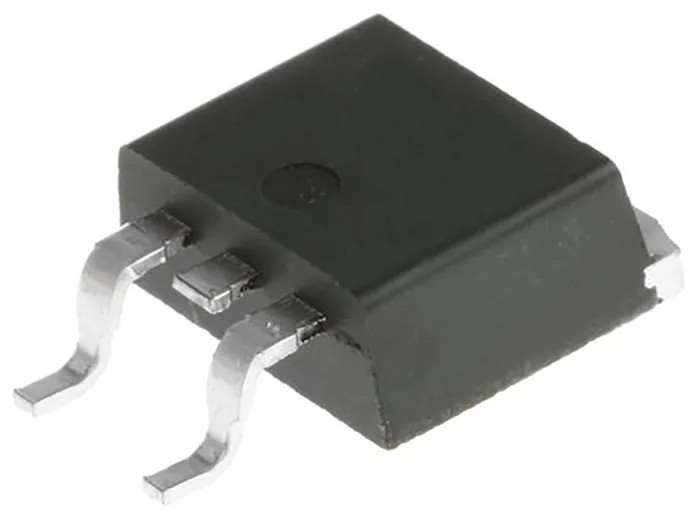

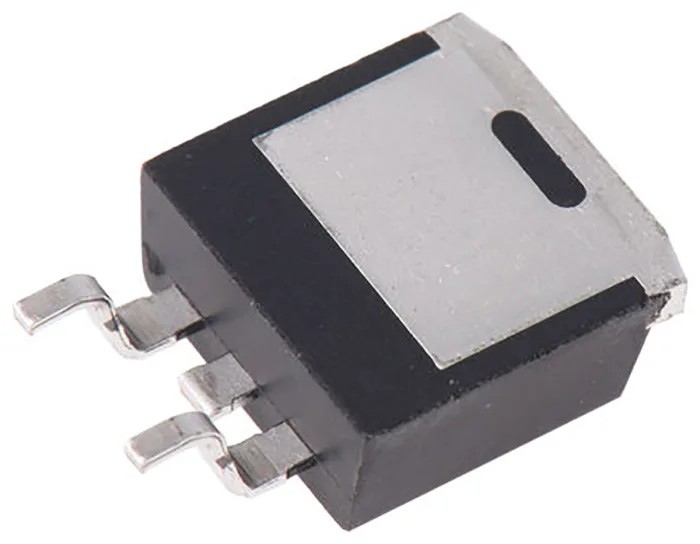

STMicroelectronics 100 V 20 A Surface Mount Schottky Diode 3-Pin TO-263 Package STPS20M100SG-TR

STMicroelectronics STPS20M100SG-TR is a high-performance Schottky diode designed for conductive efficiency in power electronics applications. It supports a maximum continuous forward current of 20 amperes and a peak reverse repetitive voltage of 100 volts, making it suitable for demanding diode rectification tasks.

This diode uses the TO-263 surface mount package, featuring 3 pins for effective PCB integration in power supply and conversion circuits. The device delivers low forward voltage drop of 0.61 volts, helping to reduce power losses and improve overall efficiency in industrial and commercial electronic equipment.

Built to operate in harsh environments, this diode withstands minimum operating temperatures down to -65 degrees Celsius and maximum operating temperatures up to 150 degrees Celsius. Additionally, it can handle high transient currents with a peak non-repetitive forward surge current rating of 530 amperes.

The compact dimensions of 10.4 mm (length), 9.35 mm (width), and 4.6 mm (height) make it an ideal choice for space-constrained circuit boards. Its single diode configuration and effective rectifier type design provide versatility in various semiconductor and discrete component power control applications.

Applications of the STPS20M100SG-TR Schottky diode extend across industrial power supplies, automotive power management, telecommunications, and consumer electronics requiring efficient rectification and low power loss. Although not approved under automotive standards, it remains a trusted product for general semiconductor discrete component use.

Designed for high current applications with 20 A forward current capability. Features a peak reverse repetitive voltage of 100 V for robust blocking. Utilizes a TO-263 package with 3 pins for surface mounting. Low forward voltage drop of 0.61 V improves efficiency.

Operates reliably between temperatures of -65°C to 150°C. Peak non-repetitive forward surge current of 530 A enables transient handling. Compact dimensions at 10.4 mm length, 9.35 mm width, and 4.6 mm height. Single diode configuration optimized for rectifier circuits.

This product is made in China and maintains high quality compliant with the STMicroelectronics manufacturing standards. For customers seeking reliable diode rectifiers for power and signal applications, the STPS20M100SG-TR provides excellent performance and durability.
