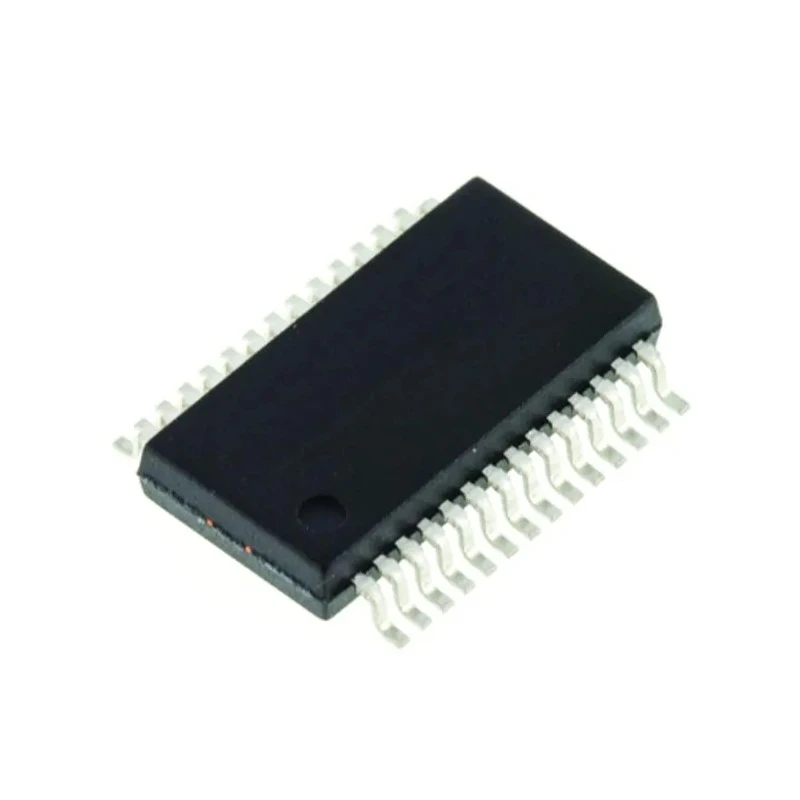

STMicroelectronics Line Transceiver IC, 28-Pin SSOP, Single Ended Input, 3V-6V Supply, 0.15μs Propagation Delay ST3241EBPR

STMicroelectronics ST3241EBPR is a sophisticated Line Transceiver IC designed for RS-232 communication applications, packaged in a 28-pin SSOP for efficient PCB mounting.

This transceiver operates reliably with a supply voltage range between 3V and 6V, providing robust performance with a fast maximum propagation delay of 0.15μs. It supports single-ended input signals and is surface mounted, aiding seamless integration into electronic systems.

The compact dimensions of 10.5mm length, 8.2mm width, and 2mm height facilitate usage in space-constrained environments while operating efficiently within an extended temperature range from -40°C up to 85°C. Featuring maximum output currents of 1mA at high level and 1.6mA at low level, this device ensures stable signal levels.

Conforming to industry standards V.28/V.24, EIA/TIA-232, and IEC 1000-4-2, the ST3241EBPR offers reliable compatibility and electromagnetic compatibility essential for industrial, manufacturing, instrumentation, and communication sectors.

This line transceiver is part of the ST3241E series, optimized for RS-232 line driver and receiver duties. Although not specifically automotive rated, it serves well in a wide variety of electronic equipment requiring line interface communication.

The device supports a minimum supply voltage of 3V and a maximum supply voltage of 6V. It features a maximum propagation delay time of 0.15 microseconds, ensuring rapid signal transmission. The pin count is 28, accommodating complex interfacing requirements.

The package type is SSOP with compact dimensions of 10.5mm length, 8.2mm width, and 2mm height. Operating temperature range spans from -40°C to 85°C, suitable for diverse industrial environments. Maximum high-level output current is 1mA, and maximum low-level output current is 1.6mA.

The device uses a single-ended input type and surface mount technology for PCB integration. It conforms to standards including V.28/V.24, EIA/TIA-232, and IEC 1000-4-2, ensuring compatibility and reliability. This line transceiver is part of the ST3241E series without automotive standard applicability.

Country of origin is Philippines, indicating quality manufacturing standards.

This product is ideal for industrial, laboratory, communication, and electronic manufacturing applications where high speed and reliable line communication is required. It enhances design efficiency by providing ready-to-mount surface package with established standard compliance.
