| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 0.7mm |
| Length | 1.3mm |
| Model | BAT41KFILM |
| Width | 0.9mm |
| Mount Type | Surface |
| Series | BAT41 |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-523 |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 200mA |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 20μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1A |
| Maximum Forward Voltage Vf | 1V |

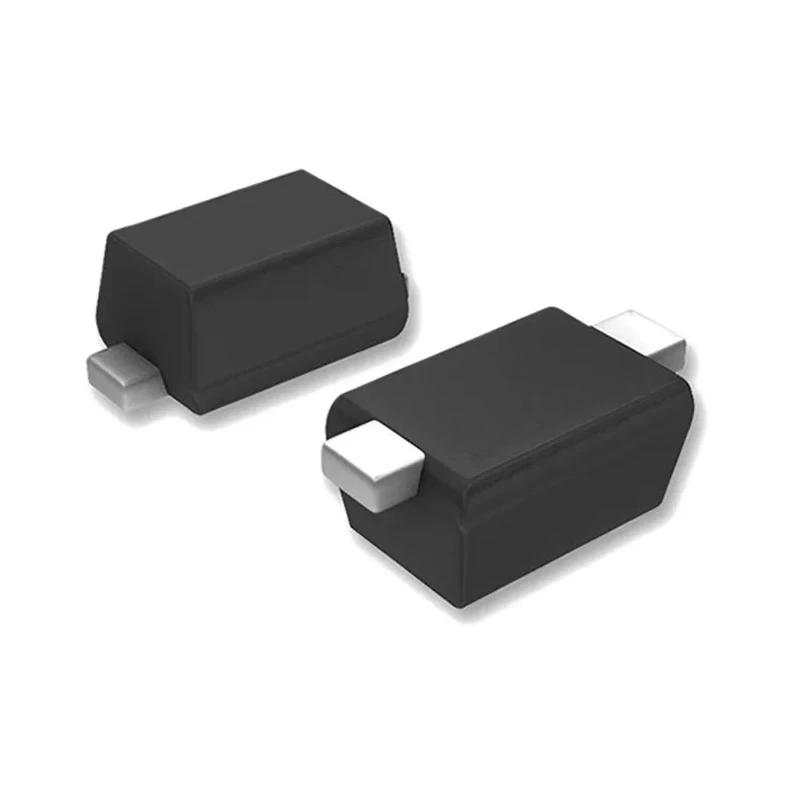

STMicroelectronics BAT41KFILM Schottky Diode is a high-performance semiconductor device designed for use in various electronic and electrical applications. This diode features a surface mount package type SOD-523, making it ideal for compact circuit designs requiring space efficiency.
With a maximum continuous forward current of 200 mA and peak repetitive reverse voltage of 100 V, it offers reliable conduction and blocking capability in power management and signal rectification roles. Its Schottky barrier construction ensures a low forward voltage drop, enhancing energy efficiency and reducing power dissipation.
The device's compact dimensions of 1.3 mm length, 0.9 mm width, and 0.7 mm height facilitate easy integration in high-density PCBs. It can withstand a maximum operating temperature of 150°C, supporting industrial and commercial ambient conditions.
This diode is suitable for applications in consumer electronics, communication devices, power supplies, and other electronic component assemblies requiring efficient, fast switching and rectification with minimal leakage current at 20 μA peak reverse current.
High efficiency Schottky barrier diode suitable for surface mount applications. Maximum forward current rating of 200 mA ensuring reliable operation. Peak repetitive reverse voltage of 100 V providing robust voltage handling.
Compact SOD-523 package with dimensions 1.3 mm length and 0.9 mm width. Maximum operating temperature rating up to 150°C. Low forward voltage drop of maximum 1 V for improved power efficiency. Peak reverse current limited to 20 μA minimizing leakage currents.
Applications in power rectification, switching circuits, and signal processing.
This product is ideal for industrial, commercial, and electronic manufacturing uses where reliable Schottky diodes are required for enhanced performance and reduced power loss. Available in packs of 100 units, it supports production efficiency for volume assembly lines.
