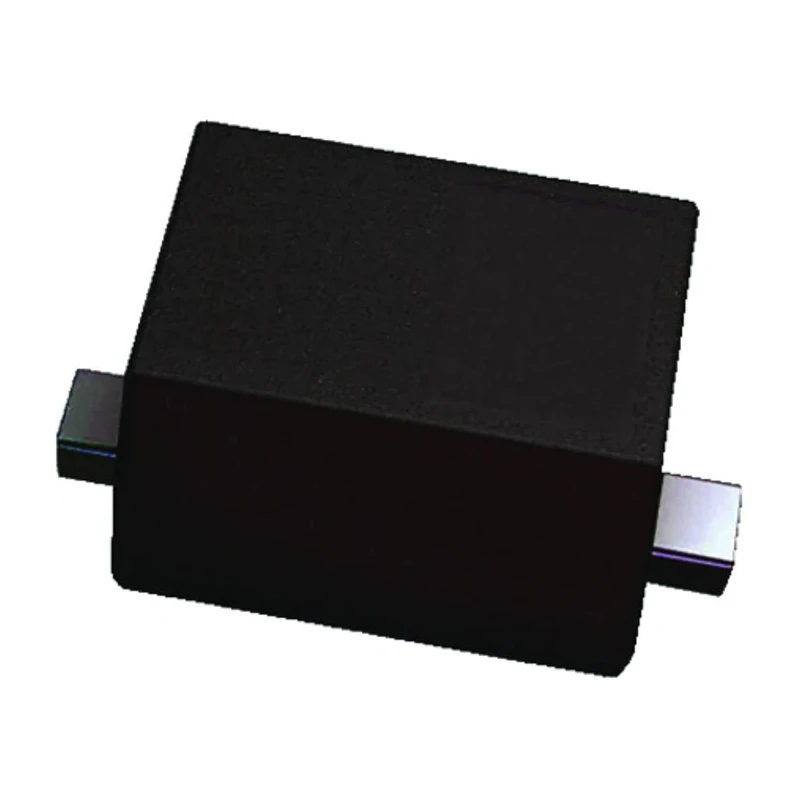

Name: STMicroelectronics 70 V 70 mA Schottky Diode Surface Mount SOD-523 BAS70KFILM
Brand: STMicroelectronics
SKU: 264256
Price: 0.06 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand STMicroelectronics Condition New

Specifications

Country of Origin	China
Brand	STMicroelectronics
Height	0.7mm
Length	1.3mm
Model	BAS70KFILM
Width	0.9mm
Mount Type	Surface
Series	BAS70
Maximum Operating Temperature	150°C
Package Type	SOD-523
Pin Count	2
Maximum Continuous Forward Current If	70mA
Peak Reverse Repetitive Voltage Vrrm	70V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	10μA
Peak Non-Repetitive Forward Surge Current Ifsm	1A
Maximum Forward Voltage Vf	1V

Key Features

Surface mount diode suitable for high efficiency applications.
BAS70 series device with single diode configuration.
Maximum forward voltage is 1 V with low reverse leakage current.
Peak non-repetitive forward surge current of 1 A supports transient conditions.
Compact dimensions of 1.3 mm length and 0.9 mm width for space saving.
Operates reliably up to 150°C maximum temperature.
Ideal for use in switching, rectification, and low voltage power applications.
Package type is SOD-523 with 2 pins for PCB mounting.

Product Description

STMicroelectronics BAS70KFILM is a high-performance Schottky diode designed for surface mount applications requiring fast switching and low forward voltage drop. It delivers a maximum continuous forward current of 70 mA and withstands peak reverse voltage up to 70 V, making it ideal for power-sensitive electronic circuits.

The diode’s single configuration is housed in a compact SOD-523 package, measuring only 1.3 mm in length, 0.9 mm in width, and 0.7 mm in height, enabling efficient PCB space utilization. This form factor suits dense circuit boards in consumer electronics, industrial controls, and automotive systems that do not require automotive-specific certifications.

With a low maximum forward voltage of 1 V and a peak reverse leakage current of just 10 μA, the BAS70KFILM reduces power losses and improves energy efficiency in switching and rectifier circuits. Its peak non-repetitive forward surge current of 1 A allows it to tolerate brief overloads without damage.

The device operates reliably in environments up to 150°C, providing robust performance in demanding industrial, laboratory, and commercial electronic systems. Typical use cases include power supply rectification, voltage clamping, and switching applications within telecommunications, instrumentation, and consumer devices.

Surface mount Schottky diode optimized for low voltage and high efficiency. Compact SOD-523 package suitable for high-density electronic assemblies. 70 V peak reverse voltage and 70 mA maximum forward current ratings. Low forward voltage drop and minimal leakage current for energy savings.

High surge current capability supports transient overload conditions. Robust operation up to 150°C for industrial and commercial applications. Single diode configuration with 2-pin layout for easy PCB mounting. Manufactured in China under STMicroelectronics quality standards.

This product belongs to the Schottky Diodes & Rectifiers category at EnvMart, your source for reliable semiconductor components including diodes, transistors, and rectifiers, essential for electronic circuit design and industrial automation.

Explore more products in our Schottky Diodes & Rectifiers category.
