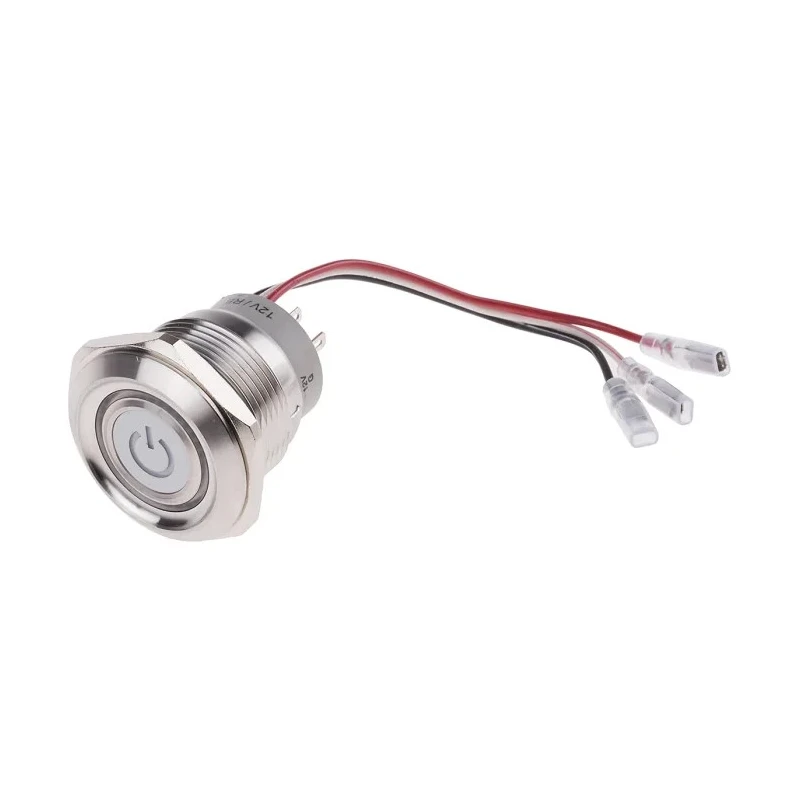

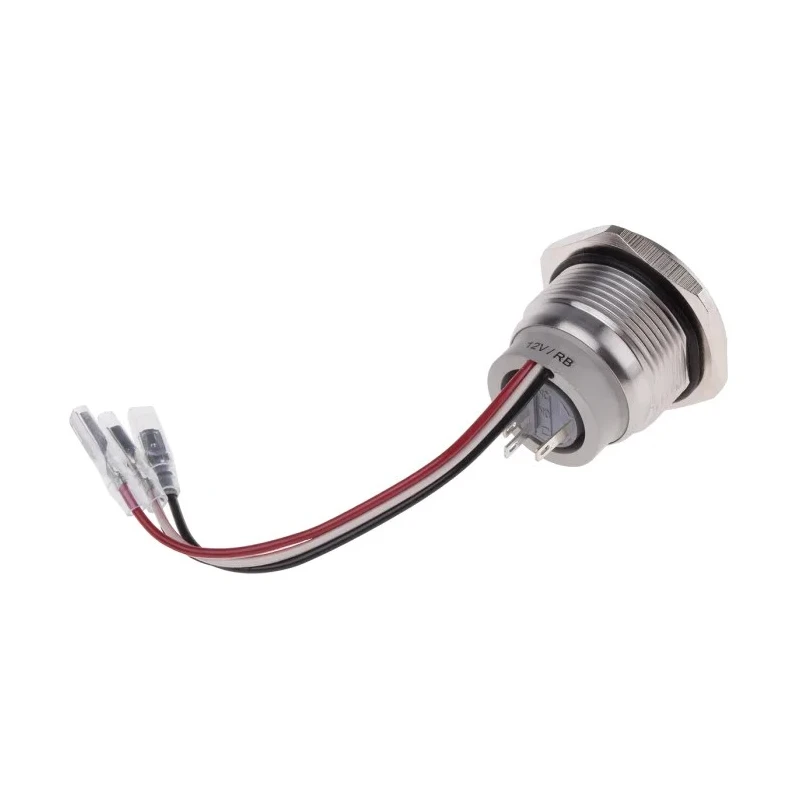

RS PRO Illuminated Momentary Push Button Switch SPDT with RGB LED, Panel Mount, 30.2 mm Cutout, IP67, 250 V AC 5A 877-1854

RS PRO 877-1854 is an illuminated momentary push button switch designed for panel mounting applications. It features a flat white actuator and offers SPDT contact configuration with quick connect terminals, making it suitable for automation and electrical control systems in industrial and commercial environments. The switch is IP67 rated, providing excellent protection against dust and water ingress, ideal for use in harsh conditions.

This switch incorporates RGB LEDs that provide multi-color illumination; non-actuated colors include green at the center and red on the ring, and when actuated, the ring switches to blue while the center LED turns off. Such visual feedback enhances operational safety and user awareness.

Crafted with a varnished and polished stainless steel bushing, the product delivers strong mechanical durability and aesthetic appeal. Its impact resistance rating of IK03 further confirms its robustness against mechanical shocks.

The switch is rated for contact voltages up to 250 V AC and DC with a maximum contact current of 5 A, suitable for a variety of low to medium power applications. It operates reliably in a temperature range from -20°C to 55°C, providing stable performance across typical environmental conditions.

Compliant with RoHS standards, this switch ensures reduced environmental impact and safe disposal. The quick connect terminal design facilitates easy installation and maintenance. Operates with a momentary flat white actuator for easy control.

Features RGB LED illumination with blue, green, and red colors for visual status indication. Designed for a 30.2 mm panel cutout providing secure mounting. Capable of handling 250 V AC and DC contact voltage up to 5 Amps current rating.

Built with a varnished polished stainless steel bushing for durability. Impact resistant to IK03 standard, suitable for demanding environments. Quick connect terminals allow for fast and reliable wiring. Meets RoHS standards ensuring environmental safety compliance.

Operates reliably within -20°C to 55°C temperature range.

This RS PRO push button switch is ideal for use in industrial automation, control panels, HVAC systems, and other electrical switching applications requiring robust, illuminated momentary switches with environmental protection and multi-color LED indicators.
