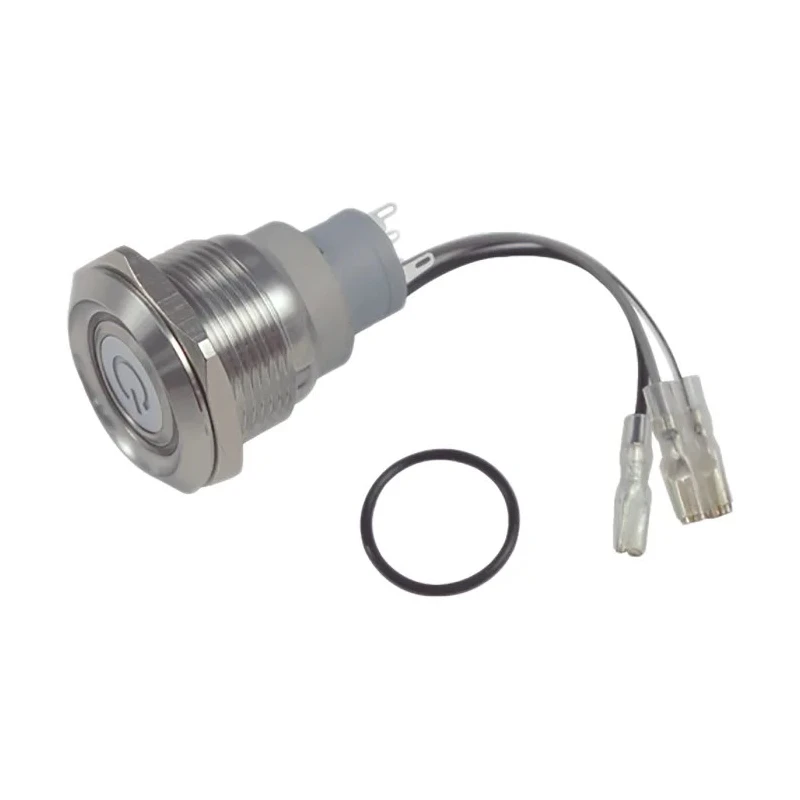

RS PRO Illuminated Momentary Panel Push Button Switch SPDT RGB LED IP67 250V AC 5A 877-1867
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Model | 877-1867 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | RS PRO |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPDT |
| Switch Configuration | SPDT |
| Impact Resistance | IK03 |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 30.2 mm |
| Terminal type | Quick Connect |
| Standards/Approvals | RoHS |
| LED Colour | Blue, Green, Red |
| Switch Operation | Momentary |
| Actuator Colour | White |
| Contact DC Voltage | 250V |
| Actuator Style | Flat |
| Switch Contact Current | 5A |
| Contact AC Voltage | 250V ac |
| Legend | Power Symbol |
| Bushing Material | Varnished / Polished Stainless Steel |
Key Features
- Designed for panel mounting with a 30.2 mm cutout diameter.
- Features white actuator with flat style for ergonomic use.
- Illuminated with blue, green, and red LEDs for clear status indication.
- SPDT switch operation supports 250 V AC/DC voltage and 5 A contact current.
- IP67 rated for waterproof and dustproof protection in harsh environments.
- Operating temperature range from -20°C to 55°C for reliable performance.
- Bushing made of varnished and polished stainless steel for durability.
- Impact resistance rating IK03 enhances robustness against mechanical shocks.
Product Description
RS PRO 877-1867 is an illuminated momentary push button switch designed for robust panel mounting applications requiring a 30.2 mm cutout. This switch provides a Single Pole Double Throw (SPDT) contact configuration paired with RGB LED illumination, offering versatile signalling capabilities with non-actuated green (center) and red (ring) LEDs, which change upon actuation to blue ring illumination.
The actuator is white and flat styled for ease of operation under various industrial and electrical environments. It supports a contact rating up to 250 volts AC or DC and a robust 5 ampere switch contact current, making it suitable for both control and signalling circuits.
Engineered for demanding environments, the switch carries an IP67 ingress protection rating, ensuring it is dust-tight and resistant to temporary water immersion. Its wide operating temperature range from -20°C to 55°C supports stable functionality in diverse climates.
The sturdy bushing is constructed from varnished and polished stainless steel, enhancing corrosion resistance and mechanical strength. Additionally, the product features impact resistance rated as IK03, providing protection against low-energy impacts.
Compliant with RoHS standards, this push button switch aligns with environmental safety regulations, making it suitable for industrial automation, electrical panels, commercial machinery, and other applications requiring reliable and clear indication with durable construction.
Designed for panel mounting with a 30.2 mm cutout diameter. Features white actuator with flat style for ergonomic use. Illuminated with blue, green, and red LEDs for clear status indication. SPDT switch operation supports 250 V AC/DC voltage and 5 A contact current.
IP67 rated for waterproof and dustproof protection in harsh environments. Operating temperature range from -20°C to 55°C for reliable performance. Bushing made of varnished and polished stainless steel for durability. Impact resistance rating IK03 enhances robustness against mechanical shocks.
RoHS compliant, meeting environmental and safety standards. Explore the wide range of Push Button Switches in the Electronics & Electricals category at EnvMart for quality and certified industrial components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile switching capabilities.
The maximum operating temperature for this switch is 55°C, making it suitable for a range of environments.
It has an IP67 rating, which means it is dust-tight and resistant to temporary water immersion.
The required cutout size for panel mounting this switch is 30.2 mm.
This switch is illuminated with RGB LEDs, featuring non-actuated green and red LEDs that change to blue upon actuation.
The switch operates as a momentary switch, meaning it only stays on while being pressed.
The impact resistance rating of this unit is IK03, providing protection against low-energy impacts.
The bushing is made of varnished and polished stainless steel, enhancing its corrosion resistance and mechanical strength.
This model supports a contact current rating of 5A, suitable for various control and signaling applications.
Yes, it is RoHS compliant, meeting environmental safety regulations.
The minimum operating temperature for this unit is -20°C, allowing it to function in colder environments.
The terminal type for this model is Quick Connect, facilitating easy installation.
