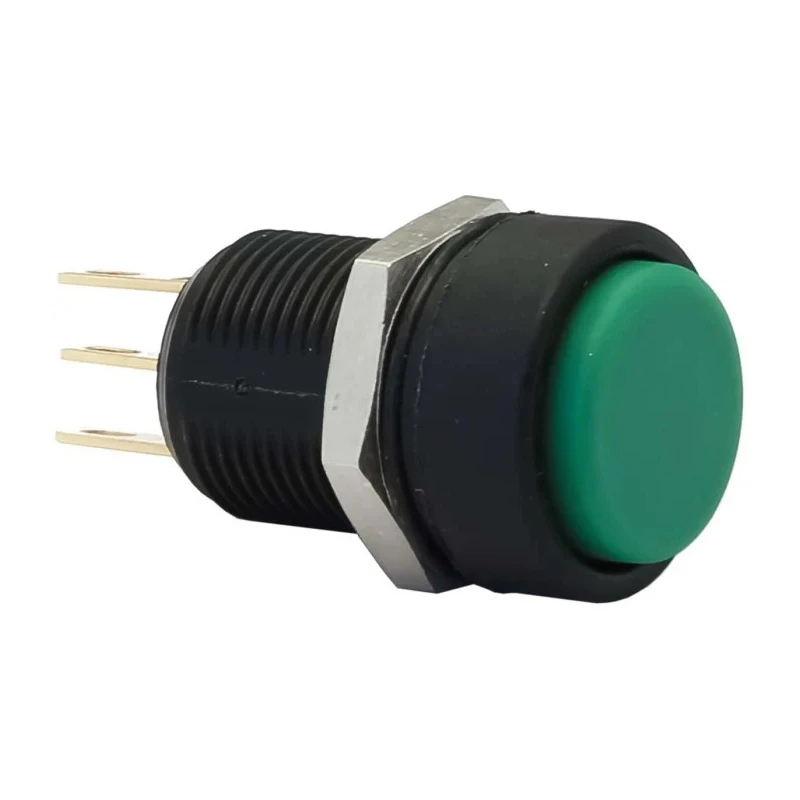

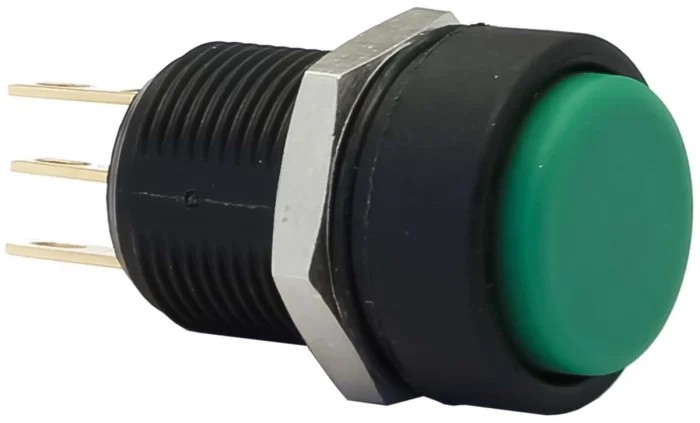

APEM IM Series Green Round Momentary Push Button Switch Panel Mount 13.6 mm Cutout SPDT IP67 IMP7Z432234UL

APEM IMP7Z432234UL is a high-quality IM Series push button switch featuring a green-colored round actuator. It is a momentary switch designed for secure panel mounting with a 13.6 mm panel cutout. This switch uses a Single Pole Double Throw (SPDT) contact configuration and quick connect terminals facilitating straightforward connectivity.

Engineered for industrial and automation uses, it offers robust performance with a rated contact current of 3 A at 28 V DC. The IP67 rating ensures it is dust-tight and water-resistant, making it suitable for harsh and noisy environments. An audible click and tactile snap-action mechanism provide reliable feedback during operation.

The switch operates effectively within a wide temperature range from -40°C up to 85°C and has high shock resistance, certified to withstand 50g impulses for 11 milliseconds according to IEC 68-2-27. Its gold-plated silver contacts contribute to superior conductivity and longevity. The non-illuminated round actuator style provides a simple and functional user interface.

This product is RoHS compliant, manufacturing quality assured in France, supporting diverse industrial, electrical, automation, and control panel applications. The switch is sealed with an IP67 rating for dust and water resistance.

It features a snap-action mechanism with tactile audible feedback for reliable operation. The contacts are gold-plated silver with a rating of 3 A at 28 V DC. Shock resistance of 50g at 11 ms according to IEC 68-2-27 ensures durability in harsh environments.

Operating temperature ranges from -40°C to 85°C suitable for various industrial applications. It has a panel mount type with quick connect terminals for easy installation. Designed without illumination and features a round actuator style.

The switch is RoHS compliant and manufactured in France.

Ideal for use in industrial automation systems, control panels, electrical equipment, and other applications requiring reliable, momentary push button control functions. Available as part of the APEM IM series, supporting design and manufacturing needs in engineering and industrial operations.
