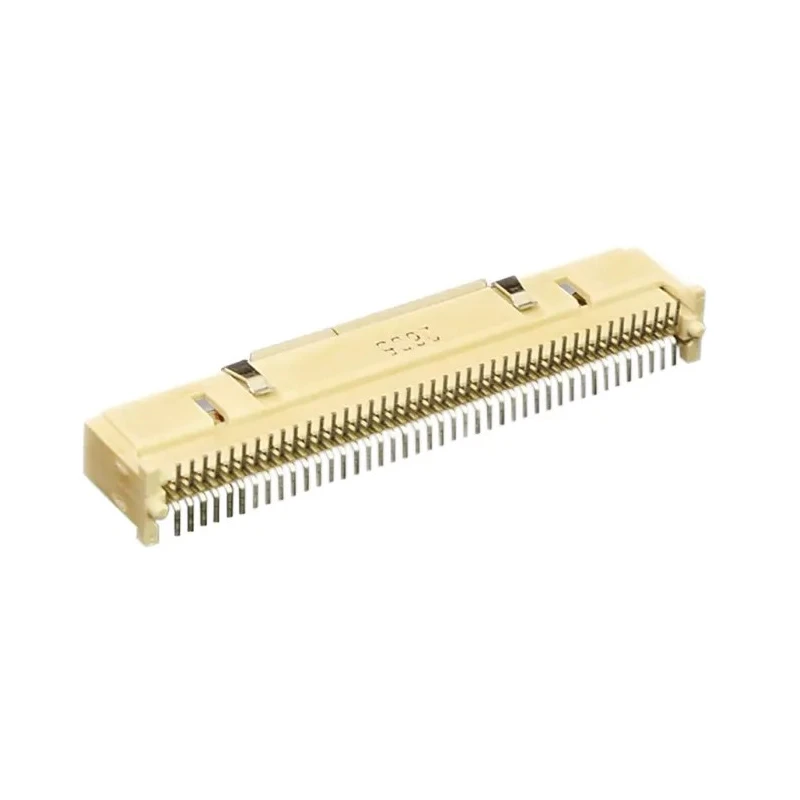

Molex PMC Mezzanine Series Straight Surface PCB Header, 84 Contact(s), 1 mm Pitch, 2 Row, Shrouded 71741-0002

Molex 71741-0002 PMC Mezzanine Series Straight Surface PCB Header is a high-quality 1.0 mm pitch, 84-contact, 2-row shrouded connector designed for board-to-board applications. It offers a robust and reliable connection solution for electronic systems requiring compact mezzanine stacking and surface mounting.

The connector features a thermoplastic housing that provides excellent mechanical support and electrical insulation. The phosphor bronze contacts are plated with gold, enhancing conductivity and resistance to corrosion.

Rated for a maximum current of 1A and voltage of 100V, this PCB header operates effectively across a wide temperature range from -55°C to 85°C, making it suitable for demanding industrial, commercial, and electronic manufacturing environments.

The straight orientation and surface mount design ensure seamless integration onto PCBs with standard SMT assembly methods. The shrouded design protects contacts from accidental damage and helps to align mating connectors correctly.

Designed with thermoplastic housing for durability and insulation. Contact material is phosphor bronze with gold plating to ensure reliable connectivity. Rated for 1A current and 100V voltage applications. Supports surface mount technology with straight orientation and shrouded design.

Operates reliably in temperatures ranging from -55°C to 85°C. Termination type is solder suitable for SMT processes. Ideal for compact mezzanine board stacking and electronic assembly.

This Molex PMC Mezzanine Series PCB Header is widely used in electronics manufacturing, industrial instrumentation, telecommunications, computer systems, and automotive electronics, where reliable board-to-board connections are essential.
