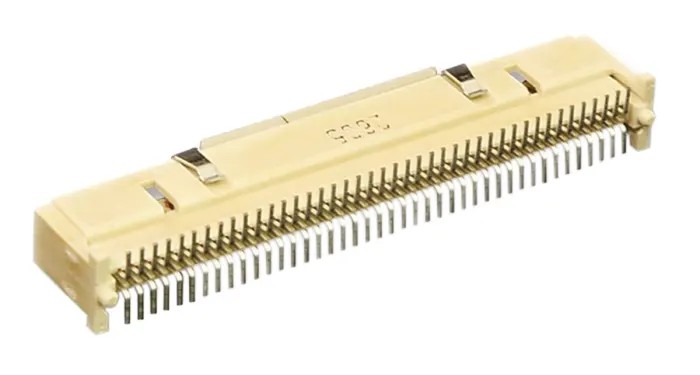

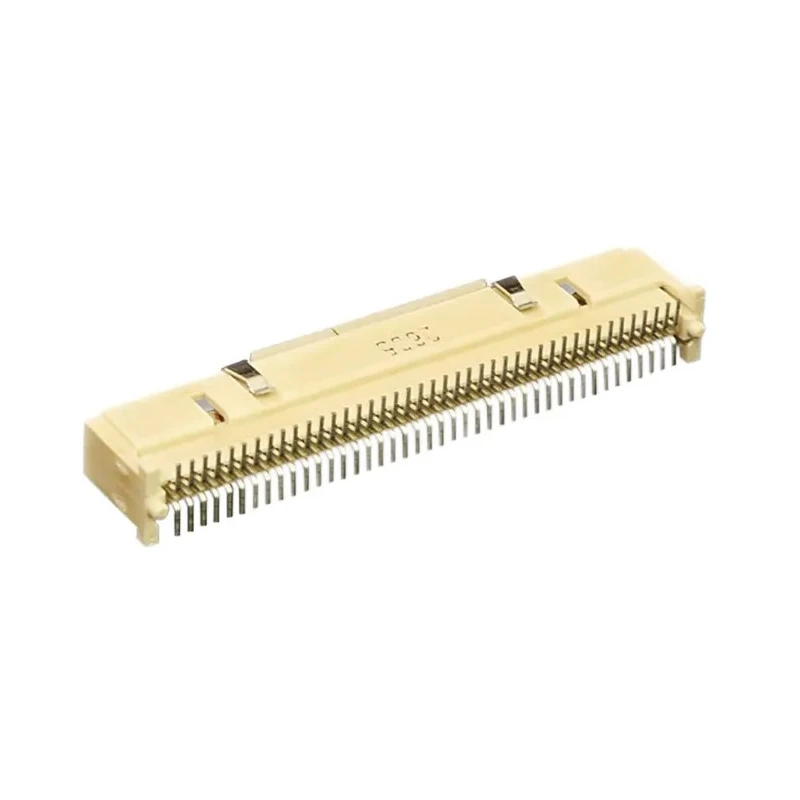

Molex PMC Mezzanine Series Straight Surface PCB Header, 84 Contacts, 1 mm Pitch, 2 Row, Shrouded 71741-0002

Molex 71741-0002 PMC Mezzanine Series Straight Surface PCB Header is a board-to-board connector designed for high-density interconnection applications. Featuring 84 male contacts arranged in two straight rows with a fine 1 mm pitch, this shrouded header ensures precise mating and enhanced mechanical protection around the contacts.

The phosphor bronze contacts plated with gold provide excellent electrical performance with low contact resistance, suitable for currents up to 1 Ampere and voltages up to 100V. The thermoplastic housing offers durability and resistance to environmental stresses, making it appropriate for various industrial electronic equipment.

This connector supports surface mount technology (SMT) with solder termination type, facilitating automated assembly on printed circuit boards. It reliably operates in a temperature range from -55°C to 85°C, accommodating both harsh industrial and commercial environments.

Typical use cases include industrial automation, telecommunications, computing devices, and embedded systems requiring compact, reliable, and high-performance board-to-board connections. The shrouded design enhances safety and durability during repeated insertions and removals.

Board-to-board connection with 1 mm pitch, 2-row straight and shrouded configuration. Phosphor bronze, gold-plated contacts ensure durability and signal integrity. Thermoplastic housing provides mechanical robustness. Surface mount solder termination compatible with modern PCB assembly processes.

Operating temperature range from -55°C to 85°C suitable for demanding environments. Current rating of 1A and voltage rating of 100V. Compact design ideal for dense electronic applications. Explore more PCB connector solutions and enhance your electronic design with Molex connectors available at EnvMart.
