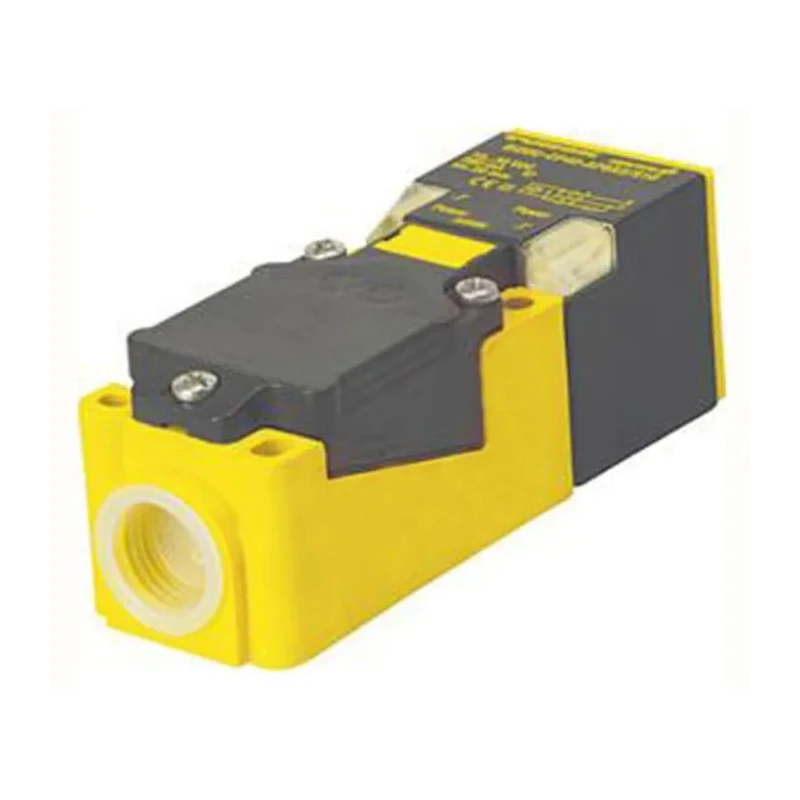

Turck Block Inductive Proximity Sensor 1/2-14 NPT in, 2-Wire Output, CP40 Series, 250 V AC/DC, 35 mm NI35-CP40-FZ3X2

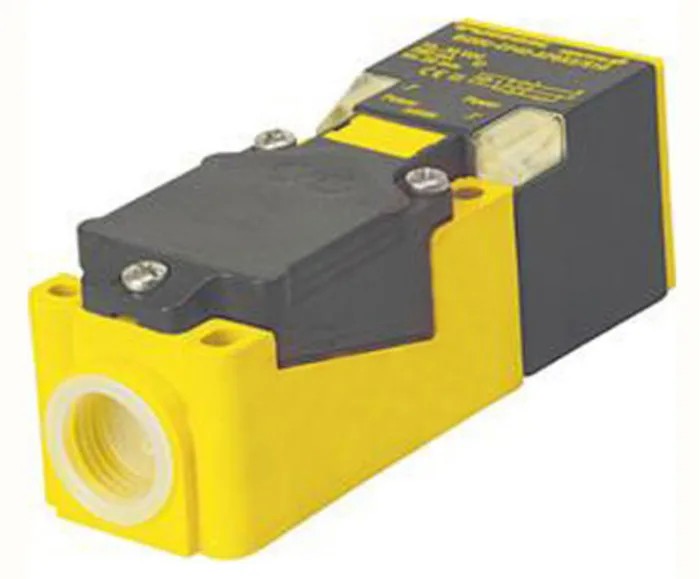

Turck NI35-CP40-FZ3X2 block inductive proximity sensor is engineered for precise, contactless object detection, ideal for automation and control gear applications in industrial settings. Featuring a sturdy block body style with a 1/2-14 NPT in thread size, this sensor supports a rated supply voltage of up to 250 V AC and DC, providing versatile power compatibility. The sensor’s unshielded design enables a maximum detection distance of 35 mm, making it well-suited for detecting metal targets with high reliability.

The device is constructed from durable plastic, specifically Polybutylene Terephthalate, which offers resilience and longevity in harsh environments. Its IP67 protection rating ensures the sensor is dust-tight and can withstand water immersion, guaranteeing dependable operation in wet and dusty industrial conditions.

The NI35-CP40-FZ3X2 sensor supports non-flush mounting with screw terminals, simplifying installation and maintenance. Its robust performance is supported across a wide temperature range from -25°C to 70°C, enabling application in diverse climate conditions. With a maximum switching frequency of 20 Hz and a switching current of 500 mA, it delivers consistent and efficient sensor switching for various automation systems.

Compact dimensions of 114 mm length, 40 mm width, and 40 mm depth allow integration in tight spaces without sacrificing performance. This sensor series offers reliability for sectors such as manufacturing, packaging, brewery processes, and food industries where wear-free and maintenance-free sensing is critical.

Operates at a maximum supply voltage of 250 V AC and DC. Detection range up to 35 mm for contactless sensing. Durable plastic, Polybutylene Terephthalate body. IP67 protection against dust and water ingress. Non-flush mounting and screw terminal type.

Wide operating temperature from -25°C to 70°C. Maximum switching frequency of 20 Hz. Output current rating of 500 mA. Compact size with 114 mm length, 40 mm width, and 40 mm depth.

This Turck Inductive Proximity Sensor meets the demands of industrial automation, electrical engineering, and control systems. Explore more sensors and automation equipment on EnvMart to enhance your industrial applications.
