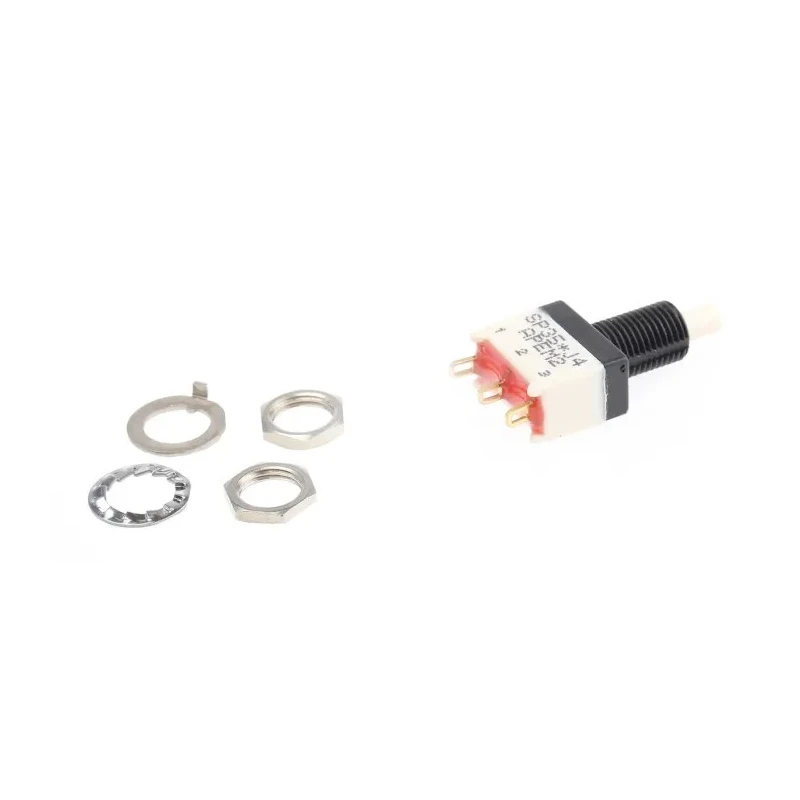

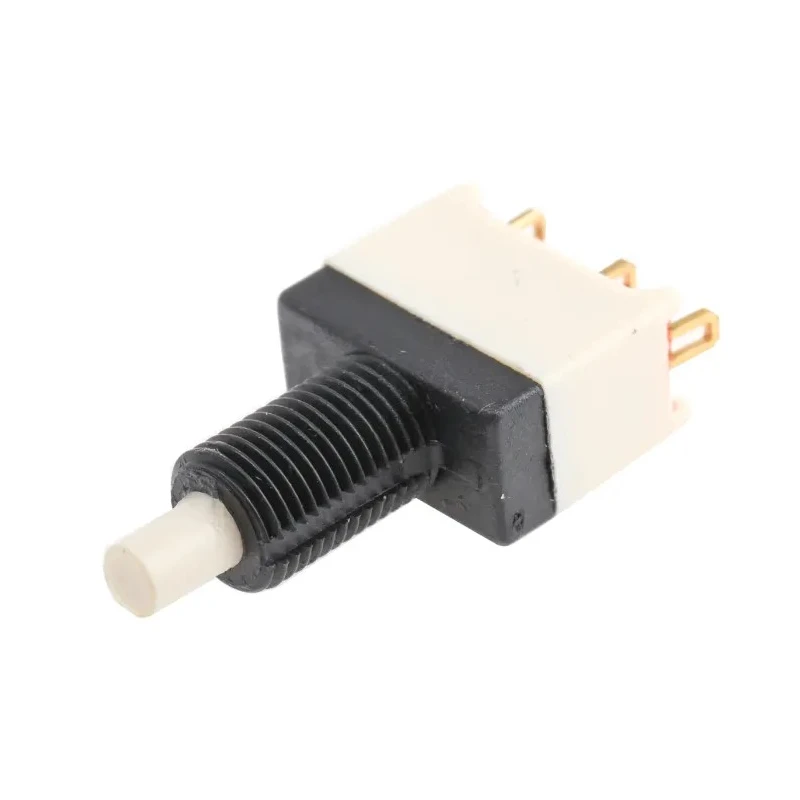

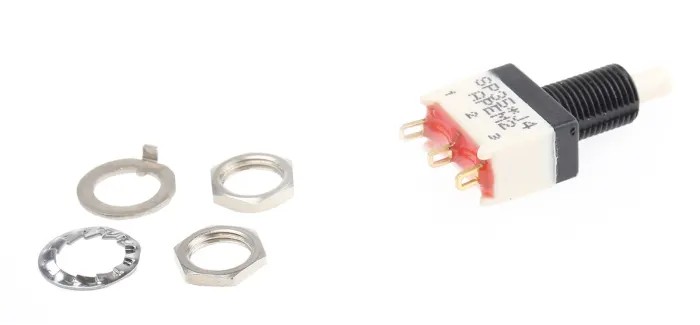

APEM SP Series Momentary Push Button Switch Panel Mount 6.5 mm Cutout SPDT 30V dc 120V ac SP35S000077
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Model | SP35S000077 |
| Mount Type | Panel |
| Series | SP |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | SPST, DPST |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 6.5 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Contact DC Voltage | 30V dc |
| Actuator Style | Plunger |
| Switch Contact Current | 1A |
| Contact AC Voltage | 120V ac |
Key Features
- The switch features a plunger style actuator providing tactile feedback during operation.
- Designed for panel mounting with a precise 6.5 mm cutout dimension.
- SPDT contact configuration supports versatile switching tasks.
- Rated for 30 V dc and 120 V ac contact voltages ensuring compatibility with various electrical systems.
- Terminals utilize solder connections sealed with epoxy resin for durability.
- Operation is momentary, requiring continuous actuation for circuit closure.
- Wide operating temperature range from -20°C to 85°C supports harsh environments.
- The product complies with RoHS standards, ensuring environmentally safe manufacturing.
Product Description
APEM SP35S000077 is a high-quality momentary push button switch from the SP Series designed for panel mounting applications with a 6.5 mm cutout. It features a SPDT contact configuration suitable for switching loads at 30 V dc and 120 V ac. This plunger-style push button provides tactile feedback, enhancing operational reliability for industrial, electrical, and automation uses.
The switch terminals are solder type and sealed with epoxy resin, protecting against environmental factors and ensuring long service life. It is equipped with an O-ring inside the bushing for washability and improved durability. The switch can operate reliably within a temperature range of -20°C to 85°C, making it suitable for diverse climates and installation environments.
RoHS compliance ensures the product meets current environmental standards for hazardous substances. Manufactured in France, this push button switch meets rigorous quality controls, providing dependable performance for various industrial, laboratory, electrical, and automation control panel installations.
The momentary operation type requires the actuator to be held down to maintain circuit continuity. Compact panel cutout size of 6.5 mm enables integration into compact control panels and devices. SPDT contact arrangement allows for versatile switching between two circuits.
Robust solder terminals sealed with epoxy resin guarantee electrical integrity and mechanical stability. High durability due to internal O-ring and epoxy sealing designed to withstand washdown environments. Suitable for use in industrial automation systems, control panels, and electrical switch assemblies.
Operating temperature range supports installation in both cold and warm ambient conditions. Backed by APEM's reputation for manufacturing precision electromechanical components. Explore the wide range of APEM Push Button Switches for diverse applications in electronics and electrical automation systems, available at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a Single Pole Double Throw (SPDT) contact configuration, allowing it to switch between two circuits.
It is rated for 30 V DC and 120 V AC contact voltages, ensuring compatibility with various electrical systems.
This model requires a precise panel cutout size of 6.5 mm for installation.
The switch operates reliably within a temperature range from -20°C to 85°C, making it suitable for diverse environments.
The terminals are solder type and sealed with epoxy resin, providing protection against environmental factors.
This model requires continuous actuation of the plunger-style actuator to maintain circuit closure, as it operates momentarily.
Yes, it complies with RoHS standards, ensuring that it meets current environmental regulations regarding hazardous substances.
The actuator style is plunger, which provides tactile feedback during operation.
This push button switch is manufactured in France, adhering to rigorous quality controls.
It is suitable for various applications in industrial automation systems, control panels, and electrical switch assemblies.
The switch has a contact current rating of 1A, which defines the maximum current it can handle.
It includes an O-ring inside the bushing for washability and improved durability, along with epoxy sealing for environmental protection.
