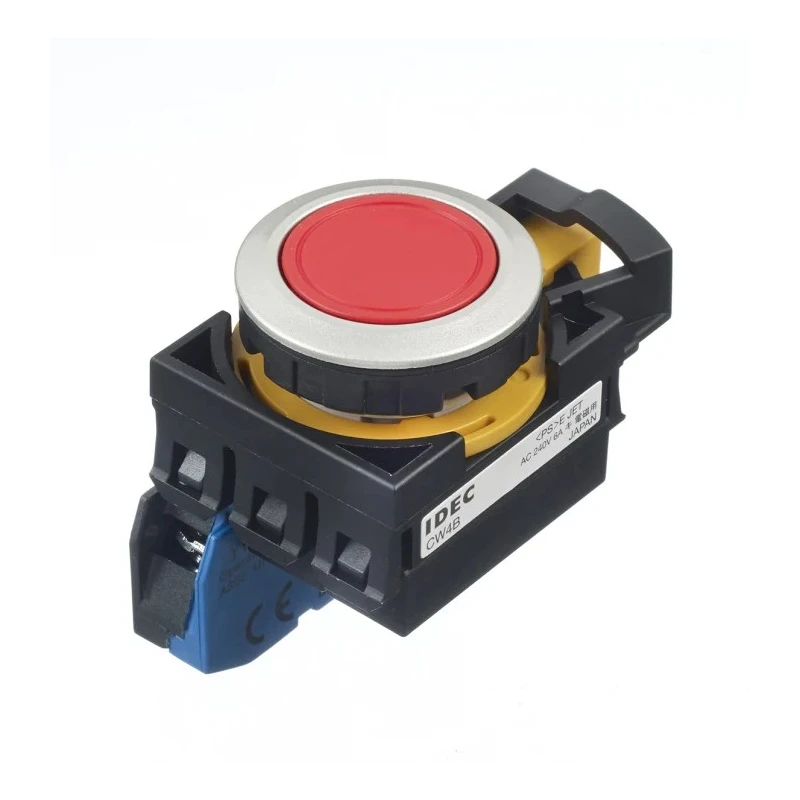

Idec Push Button Switch Momentary Panel Mount 22 mm Cutout SPST IP20 IP65 IP66 IP67 240 V CW4B-M1E10R

Idec CW4B-M1E10R is a high-quality push button switch from the IDEC CW Series featuring a momentary contact operation designed for panel mounting with a 22 mm cutout size. Its contact configuration is SPST and rated for 240 V AC/DC applications, supporting up to 10 amps current.

This red-colored actuator has a round style, which combined with a compact and low-profile design reduces operator errors and panel space requirements. The switch is engineered with a unique two-step locking lever that enhances operator safety and prevents accidental activation. It supports multiple ingress protection ratings IP20, IP65, IP66, and IP67, making it suitable for harsh industrial environments.

The switch operates within ambient temperatures ranging from -25°C to +60°C, providing versatility for industrial, automation, and electrical control system use cases. Terminal type is screw with finger-safe IP20 rating to ensure secure electrical connections and safe handling.

Its 3.5 mm operator travel ensures a tactile, smooth, and reliable pressing experience. The mounting complies with IEC 60947-5-1 standard with a 22.3 mm diameter hole. Up to 6 contacts can be connected to one switch by using dual contact blocks easily removable by the locking lever.

The red actuator provides clear visibility in control panels. Momentary switch operation is ideal for push-to-make circuits. Panel mount with screw terminals enhances ease of installation and maintenance. Multiple IP ratings allow use in a wide range of environmental conditions.

Wide operating temperature range enables use in varied industrial settings. 10 amp contact current rating suits moderate load controls. Compact design reduces panel depth for space-saving applications. Safe electrical connection with finger-safe terminals.

Compliance with international standards ensures reliability and quality.

This push button switch is suitable for industrial automation, manufacturing equipment, electrical panels, HVAC systems, and other applications where reliable, safe momentary switching is essential. Idec’s CW Series is recognized for its durable construction and user-friendly mounting features. For browsing more industrial-grade Push Button Switches and components, explore the EnvMart collection.
