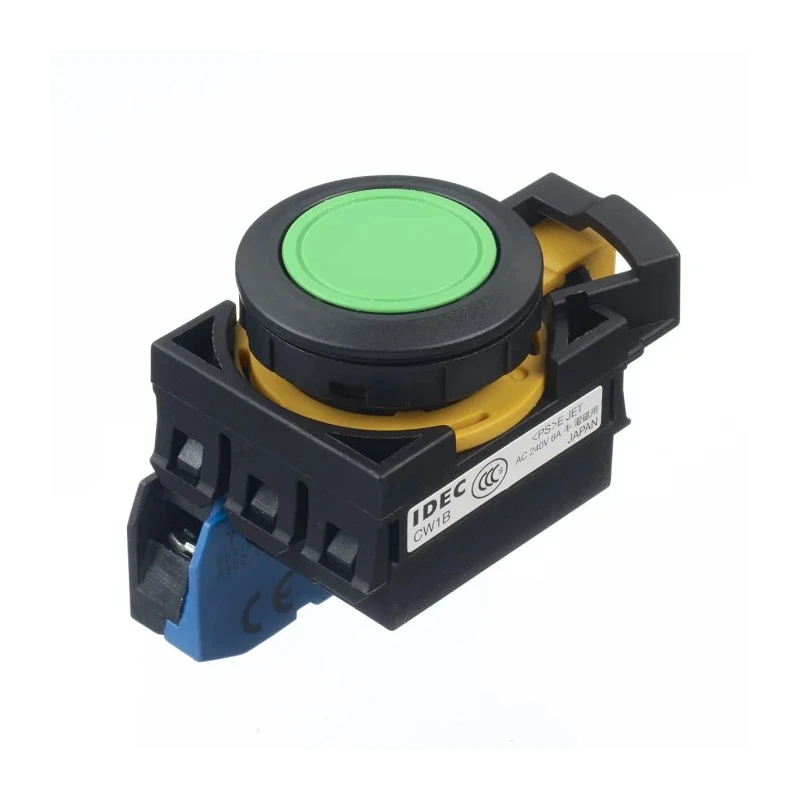

Idec Push Button Switch, Momentary, Panel Mount, 22 mm Cutout, 1 NO, IP20 IP65 IP66 IP67, 240 V Contact, CW1B-M1E10G

Idec CW1B-M1E10G is a high-quality push button switch from the IDEC CW series featuring a momentary switch operation designed for panel mounting with a 22 mm cutout. This switch is suitable for industrial automation, control panels, and electrical systems requiring reliable momentary push button functionality.

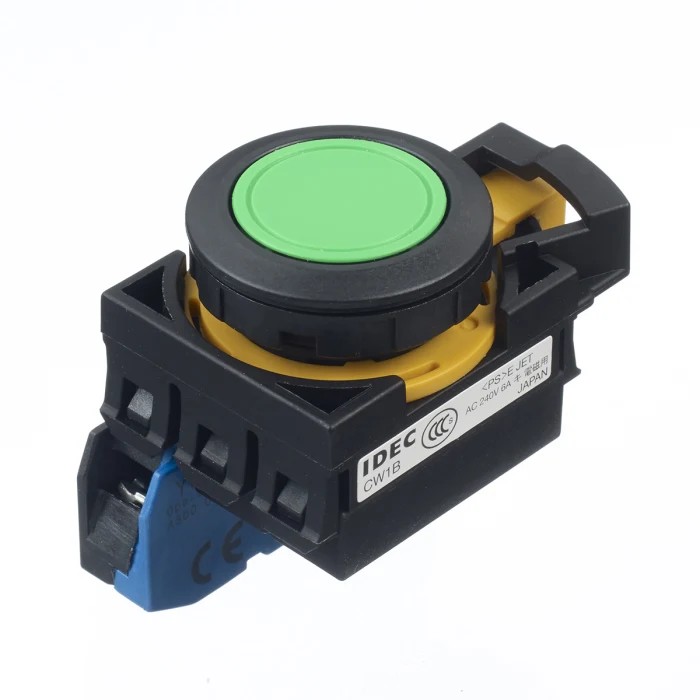

The switch actuator is green and round, providing intuitive control and easy identification on control panels. It employs screw terminals for robust and secure wiring connections.

The product supports an extensive range of ingress protection ratings (IP20, IP65, IP66, IP67), making it suited for environments from standard indoor use to harsh industrial applications requiring dust and water resistance.

Electrical specifications include a 240 V AC/DC contact voltage rating and a 10A contact current rating, enabling use in various low and medium power control circuits. Operating temperature range is from -25°C up to 60°C, assuring performance stability under different ambient conditions.

The ergonomic design features a low projection from the panel surface to reduce accidental activation and damage, along with compact dimensions (41.4 mm height, 30 mm length, 28.5 mm width) allowing integration into control panels with limited space.

The versatile CW series from Idec offers multiple configurations; this model includes a single normally open (1 NO) contact configuration suitable for many momentary switching applications in industrial automation, manufacturing, and control systems.

The actuator color is green, providing clear visibility. The switch operates with a momentary action for precise control. It features a round actuator style for ergonomic operation. Suitable for panel mounting with screw terminal connections.

The device supports multiple IP ratings, including IP20, IP65, IP66, and IP67 for robust protection. Support for contact voltages up to 240 V AC and DC. The contact current rating is 10A, suitable for various control circuits.

The panel cutout size is standardized at 22 mm diameter. Operating temperature ranges from -25°C to a maximum of 60°C ensuring reliability in diverse environments. Compact dimensions allow installation in tight spaces.

This switch is highly recommended for use in electrical panels, automation control panels, machinery, and HVAC control systems requiring durable and reliable momentary push button switches.
