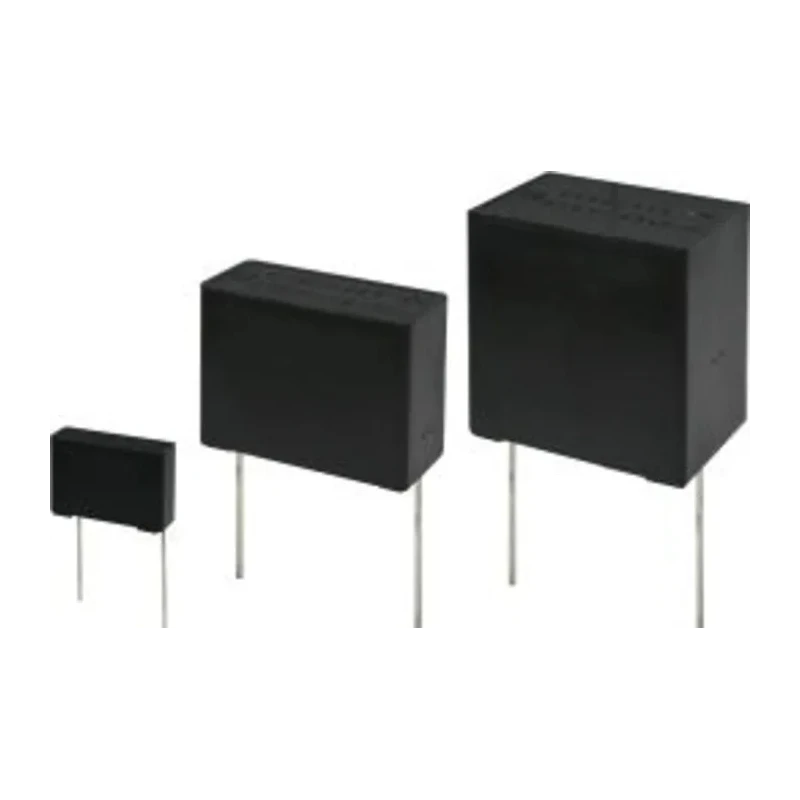

Panasonic ECQUA Film Capacitor X2 100nF ±20% 275V AC Through Hole ECQUAAF104S1

Panasonic ECQUAAF104S1 Film Capacitor X2 is a precision 100nF, ±20% tolerance passive component designed for interference suppression in automotive and industrial electronic applications. Rated for 275V AC operation, this through-hole mounted capacitor offers excellent reliability and safety features essential for modern electronics.

Constructed with a flame-retardant plastic case and non-combustible resin, it ensures secure usage under demanding conditions. It withstands high humidity environments, validated by a THB test at 85°C, 85% humidity, and 240V AC over 1000 hours, confirming its robustness against moisture.

The capacitor is highly resistant to thermal shocks, enduring temperature cycles from -40°C to 85°C for 1000 cycles without degradation, ideal for fluctuating automotive environments. The lead pitch of 15mm and 20mm lead length with solder-type terminals facilitate easy PCB mounting.

This component complies with rigorous automotive standard AEC-Q200 and suppression class X2 regulations, making it suitable for interference suppression in automotive systems. Additional compliance with EN 60384-14, CSA E60384-14, and UL 60384-14 standards attest to its quality and safety credentials.

Its compact size with dimensions of 17.5mm length, 5mm width, and 12mm height enables integration in space-constrained assemblies. The dissipation factor of 0.1% enhances energy efficiency while maintaining performance.

Applications include interference suppression in automotive electronics, power supplies, and other industrial electronic devices requiring reliable film capacitor solutions. This capacitor is manufactured in China with high safety and performance standards.

Choose Panasonic ECQUAAF104S1 for dependable, high-quality film capacitor performance in critical electronic designs. Explore the comprehensive range of electronic components and Film Capacitors available at EnvMart for your industrial and automotive project needs.

The capacitor has a capacitance of 100nF with a tolerance of ±20%. It operates at a rated AC voltage of 275V and is designed for through-hole mount installation. Features a flame-retardant plastic case with non-combustible resin enhancing safety.

High humidity resistance shown by THB test at 85°C, 85% humidity, 240V AC for 1000 hours. Thermal shock resistant, capable of enduring -40°C to 85°C across 1000 cycles. Lead pitch is 15mm with a lead length of 20mm and a lead diameter of 0.6mm for solder terminal type.

Meets automotive standard AEC-Q200 and suppression class X2. Compact dimensions: 17.5mm length, 5mm width, and 12mm height. Standards compliance includes EN 60384-14, CSA E60384-14, and UL 60384-14.
