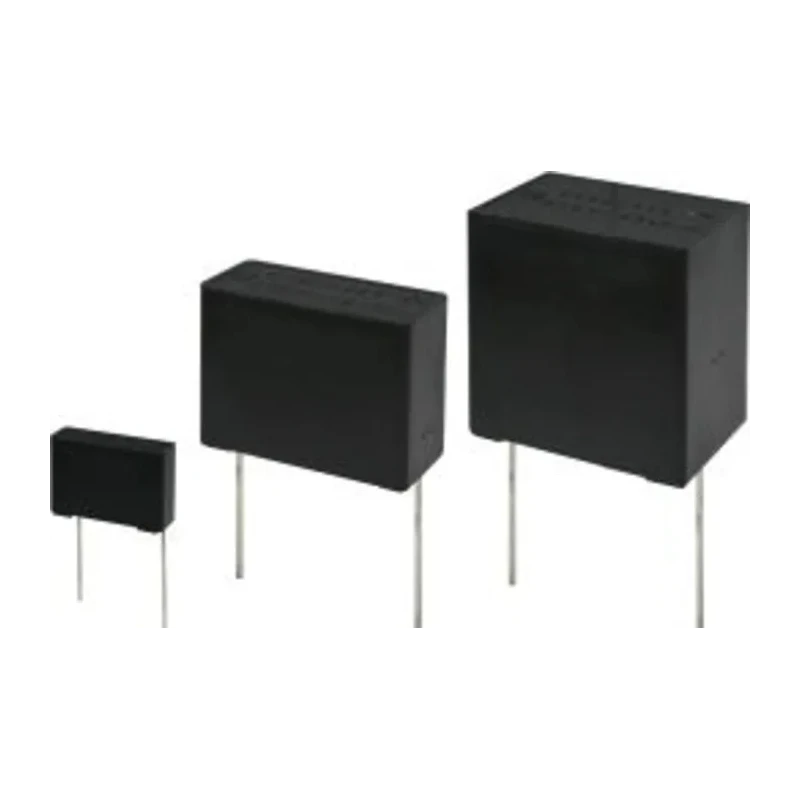

Panasonic ECQUA Film Capacitor X2 Suppression Class, ±10 % Tolerance, 470 nF Capacitance, 275V AC Rated ECQUAAF474T1
Specifications
| Country of Origin | China |
|---|---|
| Brand | Panasonic |
| Height | 15mm |
| Length | 26mm |
| Model | ECQUAAF474T1 |
| Packaging | Bag |
| Width | 8.5mm |
| Mount Type | Through Hole |
| Series | ECQUA |
| Maximum Operating Temperature | 110°C |
| Tolerance | ±10 % |
| Capacitance | 470nF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Dissipation Factor | 0.1% |
| Lead Length | 20mm |
| Rated AC Voltage | 275V ac |
| Lead Pitch | 22.5mm |
| Lead Diameter | 0.8mm |
| Automotive Standard | AEC-Q200 |
| Suppression Class | X2 |
| High humidity resistance (THB test | 85 °C, 85 %, 240 V.AC, 1000 h ) |
Key Features
- This capacitor offers high safety with an integrated safety function.
- It provides high humidity resistance tested at 85 °C, 85% humidity, and 240 V.AC for 1000 hours.
- The component withstands high thermal shock resistance, enduring -40 to 85 °C over 1000 cycles.
- Constructed with a flame-retardant plastic case and non-combustible resin for enhanced protection.
- Designed specifically for automotive interference suppression applications, meeting AEC-Q200 standards.
- Lead pitch measures 22.5 mm with solder terminal type and 20 mm lead length.
- Dissipation factor is low at 0.1% for efficient performance.
- Certified to UL 60384-14, CSA E60384-14, and EN 60384-14 electrical standards.
Product Description
Panasonic ECQUA Film Capacitor ECQUAAF474T1 is a high-reliability passive component engineered for interference suppression in automotive and industrial electronic circuits. It has a capacitance of 470 nF with a ±10 % tolerance and a rated AC voltage of 275V, ensuring stable performance in demanding environments.
This through-hole mounted capacitor features a flame-retardant plastic case and non-combustible resin, providing superior safety and durability. It achieves high humidity resistance validated by THB testing at 85 °C, 85% relative humidity, and 240 V AC voltage over 1000 hours. Its robust thermal shock resistance withstands temperature cycling from -40 °C to 85 °C across 1000 cycles, guaranteeing operational reliability in automotive and harsh industrial conditions.
Designed according to automotive standard AEC-Q200 and suppression class X2, this capacitor is ideal for filtering and noise reduction in power electronics and automotive control modules. Electrical certifications include UL 60384-14, CSA E60384-14, and EN 60384-14, ensuring compliance with international safety and performance standards.
High safety function integrated within the capacitor design. Excellent resistance to humidity and thermal shocks for enhanced longevity. Flame-retardant casing protects against fire hazards in electronics assemblies. Automotive certified, suitable for interference suppression in vehicle electrical systems.
Precision engineering supports stable capacitance and low dissipation factor of 0.1%. Through hole mounting ensures easy and reliable PCB assembly. Lead pitch of 22.5 mm and lead length of 20 mm facilitate standard installation.
Compact dimensions: 26 mm length, 15 mm height, and 8.5 mm width. Complies with global safety approvals.
This Panasonic ECQUA film capacitor is intended for use in automotive electronics, industrial machinery, and high-performance power conditioning applications, providing effective noise suppression and circuit protection. It supports engineers and designers in meeting stringent automotive and industrial specifications.
Explore more Film Capacitors and passive components at EnvMart to support your electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this model is 470 nF with a tolerance of ±10%.
It has a rated AC voltage of 275V.
The dimensions are 26 mm in length, 15 mm in height, and 8.5 mm in width.
The maximum operating temperature is 110°C.
This capacitor is designed for through-hole mounting.
The lead pitch measures 22.5 mm and the lead length is 20 mm.
The dissipation factor is low at 0.1%.
It is certified to UL 60384-14, CSA E60384-14, and EN 60384-14 electrical standards.
The minimum operating temperature is -40°C.
The capacitor features a flame-retardant plastic case and non-combustible resin for enhanced protection.
This model is designed according to the AEC-Q200 automotive standard.
It is suitable for interference suppression in automotive electronics, industrial machinery, and high-performance power conditioning applications.
