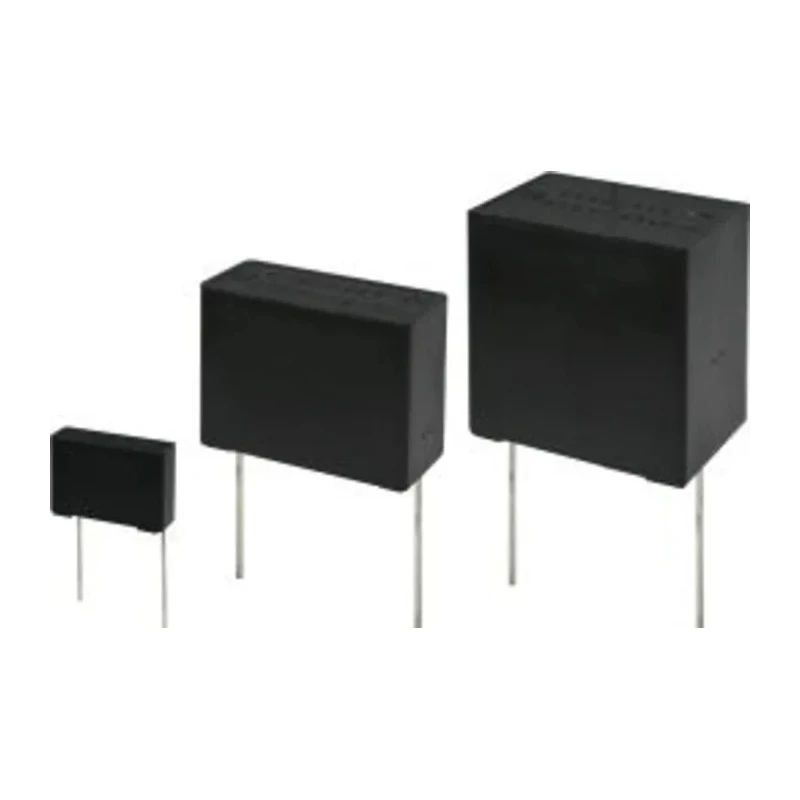

Panasonic ECQUA Film Capacitor X2, ±10 % Tolerance, 100 nF 275V AC Through Hole ECQUAAF104T1

Free Delivery in India | Lowest Global Shipping Charges

Panasonic ECQUA Film Capacitor X2, ±10 % Tolerance, 100 nF 275V AC Through Hole ECQUAAF104T1

Name: Panasonic ECQUA Film Capacitor X2, ±10 % Tolerance, 100 nF 275V AC Through Hole ECQUAAF104T1
Brand: Panasonic
SKU: 249455
Price: 0.39 USD
Availability: InStock



Category Film Capacitor Brand Panasonic Condition New

Specifications

Country of Origin	China
Brand	Panasonic
Height	12mm
Length	17.5mm
Model	ECQUAAF104T1
Packaging	Bag
Width	5mm
Mount Type	Through Hole
Series	ECQUA
Maximum Operating Temperature	110°C
Tolerance	±10 %
Capacitance	100nF
Minimum Operating Temperature	-40°C
Terminal type	Solder
Dissipation Factor	0.1%
Lead Length	20mm
Rated AC Voltage	275V ac
Lead Pitch	15mm
Lead Diameter	0.6mm
Automotive Standard	AEC-Q200
Suppression Class	X2
High humidity resistance (THB test	85 °C, 85 %, 240 V.AC, 1000 h )

Key Features

Provides high safety with built-in safety functions for reliable operation.
Offers high humidity resistance validated by THB testing at 85 °C, 85% humidity, with 240 V.AC for 1000 hours.
Designed for high thermal shock resistance through 1000 cycles between -40 °C and 85 °C.
Equipped with a flame-retardant plastic case and non-combustible resin for safety compliance.
Ideal as an interference suppressor for automotive and industrial electrical applications.
Features through hole mount type and solder terminal with 20mm lead length and 0.6mm lead diameter.
Complies with standards UL 60384-14, EN 60384-14, and CSA E60384-14.
Lead pitch measures 15mm with compact dimensions of 17.5mm length, 12mm height, and 5mm width.

Product Description

Panasonic ECQUAAF104T1 Film Capacitor is a high-quality electrical component designed for interference suppression, particularly suitable for automotive applications. Featuring a capacitance of 100 nF with ±10 % tolerance and rated for 275V AC operation, it ensures dependable performance in challenging environments.

This capacitor has a through hole mount type with a 15mm lead pitch, facilitating easy PCB integration. It is built with durability in mind, offering high humidity resistance proven by strict THB tests at 85 °C and 85% humidity, and thermal shock resistance across 1000 cycles cycling from -40 °C to 85 °C.

The capacitor is housed in a flame-retardant plastic case made from non-combustible resin, adding a layer of safety and reliability in demanding industrial and automotive settings. Its compact dimensions of 17.5mm length, 12mm height, and 5mm width support versatile installation requirements. Compliance with UL, EN, and CSA standards assures international quality and safety acceptance.

Additional features include 20mm lead length and 0.6mm lead diameter with solder terminal type, ensuring robust electrical connections. The product adheres to the AEC-Q200 automotive standard and carries an X2 suppression class rating, making it an ideal choice for interference suppression in automotive and industrial electronics.

High safety with safety function installed for fail-safe operation. High humidity resistance verified by THB test: 85 °C, 85 %, 240 V.AC, 1000 h. Capable of withstanding extensive thermal shock (-40 ⇔ 85 °C, 1000 cycles).

Flame-retardant plastic case and non-combustible resin construction. Interference suppression suitable for automotive applications. Compliance with UL 60384-14, EN 60384-14, CSA E60384-14 standards. Through hole mount with 15mm lead pitch and high-quality solder terminals.

Compact size with precise dimensions for PCB mounting.

This Panasonic ECQUA Film Capacitor is an essential component widely used in electronic circuits for power and signal integrity, serving in automotive, industrial, and commercial electronics. Explore more electronic components and Film Capacitors in EnvMart for your application needs.
