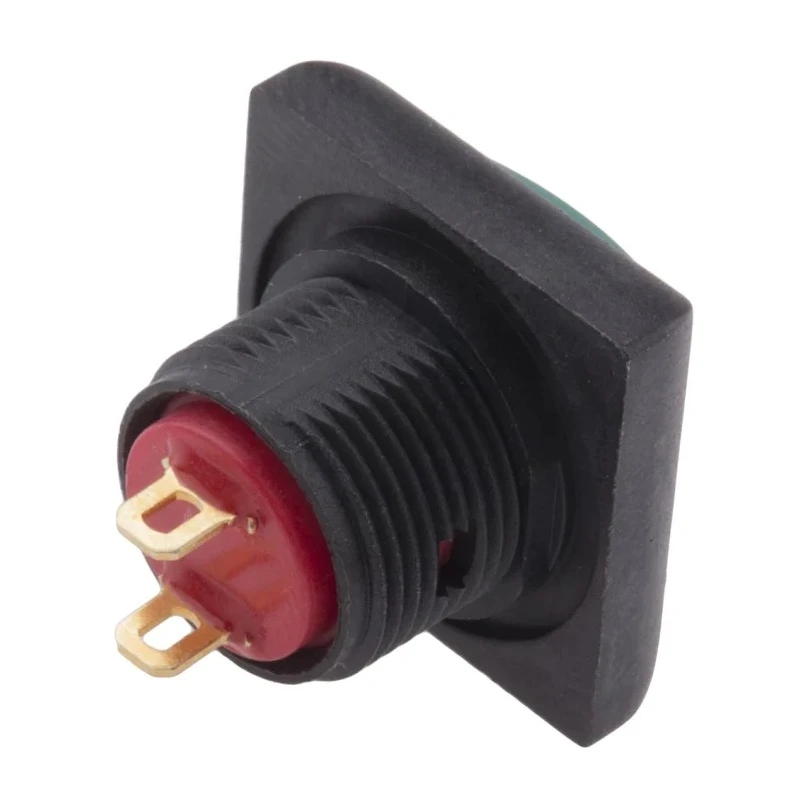

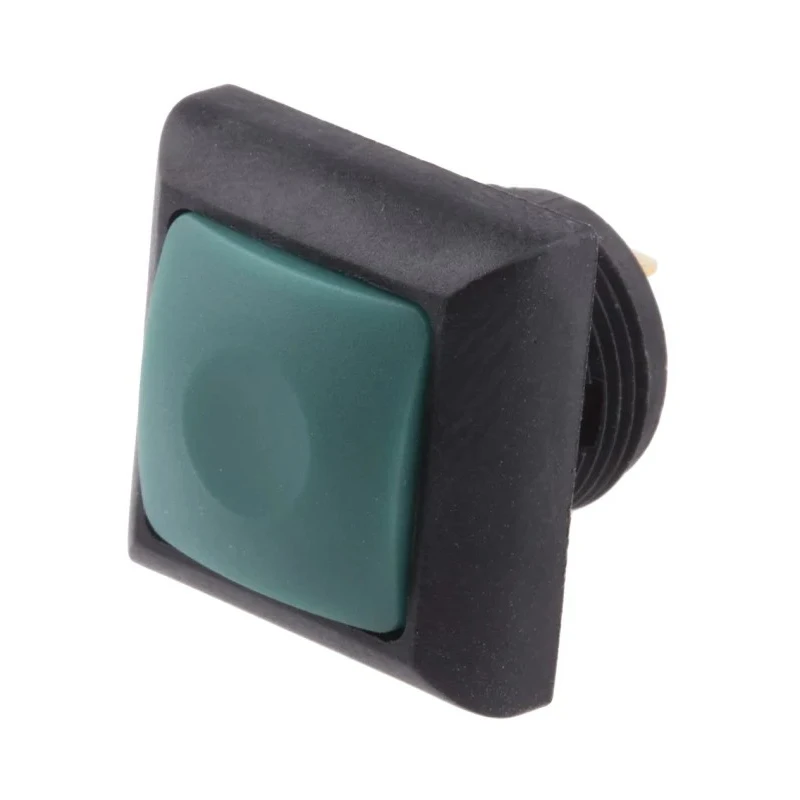

RS PRO Push Button Switch Momentary PCB Mount Green LED IP67 50V DC 125V AC 820-7571
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Model | 820-7571 |
| IP Rating | IP67 |
| Mount Type | PCB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | SPST NC |
| Panel Cutout Size | 13.6 mm |
| Terminal type | Solder Lug |
| Standards/Approvals | Lead-Free, RoHS Compliant |
| LED Colour | Green |
| Switch Operation | Momentary |
| Actuator Colour | Green |
| Contact DC Voltage | 50V dc |
| Actuator Style | Cap |
| Switch Contact Current | 400mA |
| Operating Force | 2N - 5N |
| Mechanical Life | 1000000 cycles |
| Contact AC Voltage | 125V ac |
| Contact Bounce | 10 ms |
| Soldering | 350°C maximum for 5 seconds |
Key Features
- This switch features a 13.6 mm panel cutout for easy mounting on PCB assemblies.
- Operates as a single pole single throw (SPST) momentary switch with normally closed contact configuration.
- Designed with a green LED actuator cap for clear visual indication.
- Rated for a maximum contact current of 400mA and supports operation up to 85°C.
- The IP67 rating ensures high resistance to dust and water ingress, ideal for harsh environments.
- Switch offers long mechanical life with 1,000,000 cycles and low contact bounce of 10 ms.
- Operating force ranges from 2N to 5N, with solder lug terminal type for reliable PCB connections.
- Compliant with Lead-Free and RoHS standards.
Product Description
RS PRO 820-7571 Push Button Switch is a precision momentary switch designed for PCB mounting applications. Featuring a green LED actuator cap, this switch provides reliable tactile feedback and visual status indication. With a panel cutout size of 13.6 mm, it integrates seamlessly into various control panels, electrical assemblies, and industrial devices.
Rated for 50V DC and 125V AC voltages, the switch is built to operate safely within demanding electrical parameters. The contact configuration is SPST normally closed (NC), making it suitable for interrupting circuits with a low contact current of 400mA. The switch body is designed to withstand a maximum operating temperature of 85°C.
Designed with an IP67 ingress protection rating, this push button switch is highly resistant to dust, dirt, and water immersion, making it ideal for harsh industrial, laboratory, and automation environments. The robust housing and cap style actuator deliver reliable mechanical life expectancy of 1,000,000 cycles and ensure consistent performance over long periods.
Operating force is carefully calibrated to between 2N and 5N, providing ergonomic control for users. The solder lug terminal type offers secure and durable connections to printed circuit boards, suitable for automated assembly processes. The switch is compliant with Lead-Free and RoHS environmental standards, supporting responsible manufacturing.
This switch features a 13.6 mm panel cutout. Momentary SPST NC contact configuration. Green LED actuator for clear visual indication. Rated 50V DC / 125V AC operation. IP67 ingress protection rating. Operating force from 2N to 5N.
Mechanical life of one million cycles. Solder lug terminals for PCB mounting. Lead-Free and RoHS compliant.
This push button switch is ideal for incorporation in industrial controls, automation systems, electrical machinery, and equipment requiring reliable manual user interface components. Its robust specification supports long-term maintenance-free operation even in challenging environments.
Explore more in the Push Button Switches category for related industrial electrical components and accessories on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this switch is 85°C.
This model features a single pole single throw (SPST) normally closed (NC) contact configuration.
The required panel cutout size for installation is 13.6 mm.
The switch is rated for a maximum contact current of 400mA.
This switch has an IP67 ingress protection rating, making it highly resistant to dust and water.
It uses solder lug terminals for reliable PCB connections.
The operating force for this switch ranges from 2N to 5N.
The mechanical life of this switch is rated for 1,000,000 cycles.
It supports contact voltages of 50V DC and 125V AC.
The actuator features a green LED for clear visual indication.
This model is compliant with Lead-Free and RoHS standards.
This switch operates as a momentary switch.
