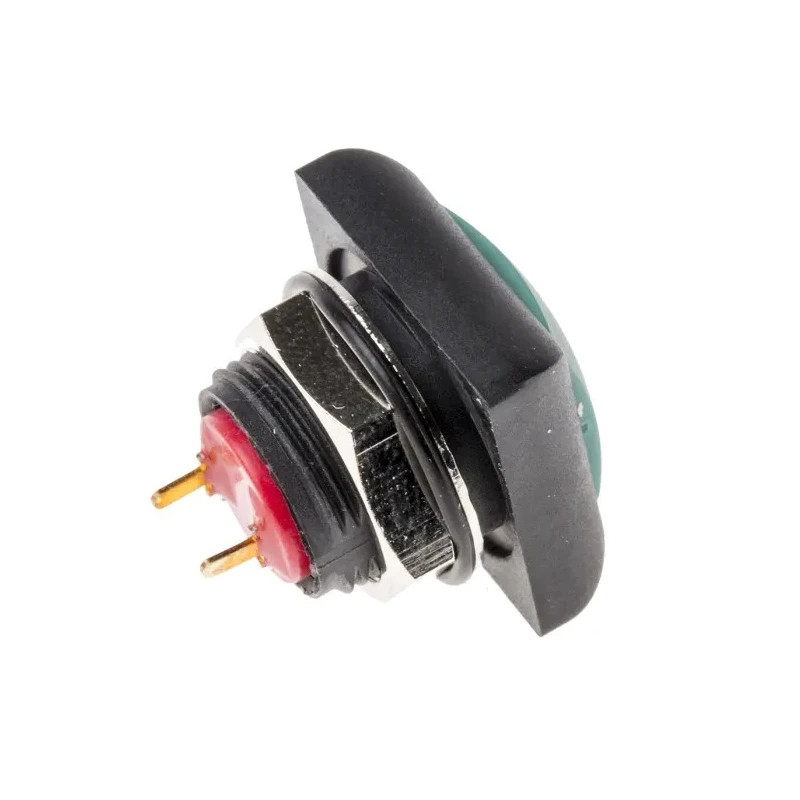

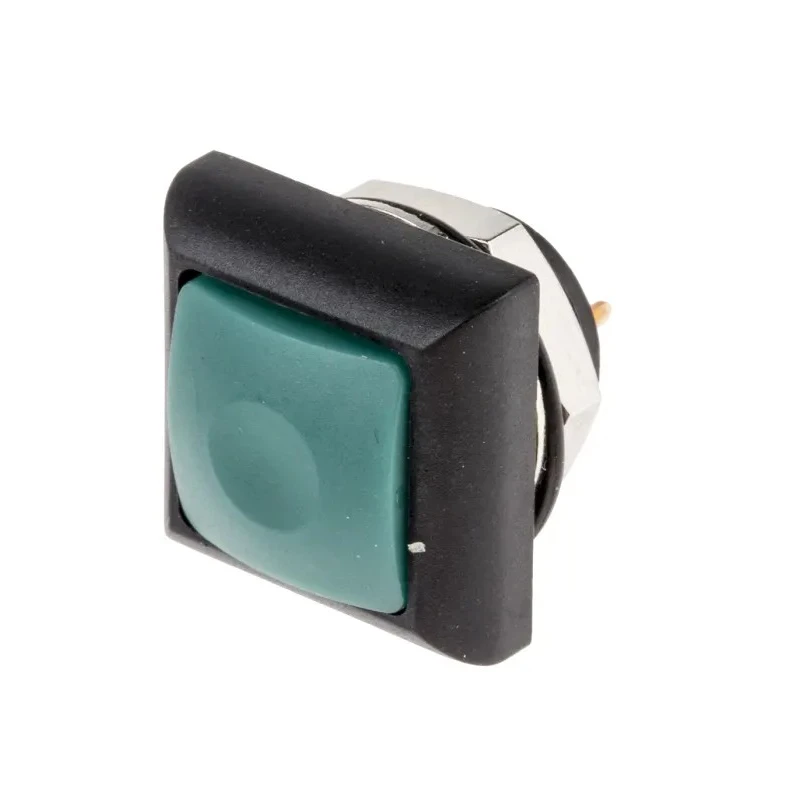

RS PRO Push Button Switch Momentary PCB Mount, 13.6 mm Cutout, SPST, Green LED, IP67, 50 V dc, 32 V ac 8207561P
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Model | 8207561P |
| IP Rating | IP67 |
| Mount Type | PCB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | SPST |
| Panel Cutout Size | 13.6 mm |
| Terminal type | PCB Pin |
| Standards/Approvals | Lead-Free, RoHS |
| LED Colour | Green |
| Switch Operation | Momentary |
| Actuator Colour | Green |
| Contact DC Voltage | 50V dc |
| Actuator Style | Cap |
| Switch Contact Current | 400mA |
| Operating Force | 2N - 5N |
| Mechanical Life | 1000000 cycles |
| Contact AC Voltage | 32V ac |
| Contact Bounce | 10 ms |
| Soldering | 350°C maximum for 5 seconds |
Key Features
- Designed for PCB mounting with a 13.6 mm panel cutout size.
- Momentary switch operation with SPST contact configuration.
- Green LED actuator color with cap style actuator.
- IP67 rated for dust-tight and water immersion protection.
- Maximum operating temperature up to 85°C ensuring durability.
- Operates with contact voltages of 50 V dc and 32 V ac.
- Switch contact current rated at 400 mA for reliable performance.
- Mechanical life of 1,000,000 cycles for extended use.
Product Description
RS PRO 8207561P Push Button Switch is a momentary single-pole single-throw (SPST) switch designed for PCB mounting with a 13.6 mm panel cutout. Featuring a green LED actuator and cap style actuator, this switch offers robust performance with an IP67 rating, making it dust-tight and protected against immersion in water.
This push button switch operates at a voltage of 50 V dc and 32 V ac with a contact current capability of 400 mA, suitable for a variety of industrial and electronic control applications. It has a mechanical life expectancy of 1,000,000 cycles and requires an operating force in the range of 2 to 5 Newtons, ensuring reliable and consistent actuation.
The switch also features a low contact bounce of 10 milliseconds, which reduces electrical noise and enhances switching reliability. It is rated for a maximum operating temperature of 85°C and supports soldering conditions up to 350°C for 5 seconds, suitable for standard PCB assembly processes.
This product is compliant with Lead-Free and RoHS standards, aligning with environmental and safety regulations for electronic components. Its green LED illumination enhances visibility for user interfaces, ideal for industrial, automation, and electrical control panel applications.
Designed for PCB mounting with a 13.6 mm panel cutout size. Momentary switch operation with SPST contact configuration. Green LED actuator color with cap style actuator. IP67 rated for dust-tight and water immersion protection.
Maximum operating temperature up to 85°C ensuring durability. Operates with contact voltages of 50 V dc and 32 V ac. Switch contact current rated at 400 mA for reliable performance. Mechanical life of 1,000,000 cycles for extended use.
Operating force between 2N to 5N for comfortable actuation. Low contact bounce time of 10 ms for smooth switching.
This RS PRO Push Button Switch is ideal for integration in industrial control systems, electrical enclosures, automation equipment, and PCB applications requiring reliable momentary switch control with LED indication.
Explore the complete range of high-quality switches and electrical components at EnvMart for your project and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this model is 85°C.
It features a single-pole single-throw (SPST) contact configuration.
This switch requires a panel cutout size of 13.6 mm for proper installation.
It operates with contact voltages of 50 V dc and 32 V ac.
The switch has a rated contact current of 400 mA.
This model has a mechanical life expectancy of 1,000,000 cycles.
It has an IP67 rating, making it dust-tight and protected against water immersion.
The operating force for actuation is between 2 to 5 Newtons.
The contact bounce time is 10 milliseconds, which helps reduce electrical noise.
It supports soldering conditions up to 350°C for a maximum of 5 seconds.
It is compliant with Lead-Free and RoHS standards, aligning with environmental regulations.
This switch is designed for PCB mounting with PCB pin terminals.
