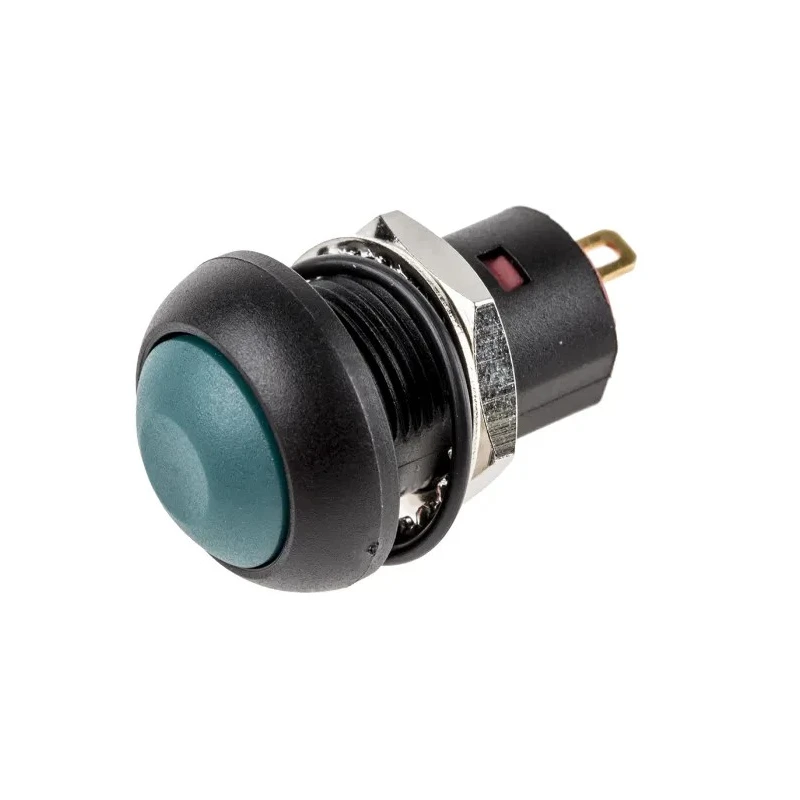

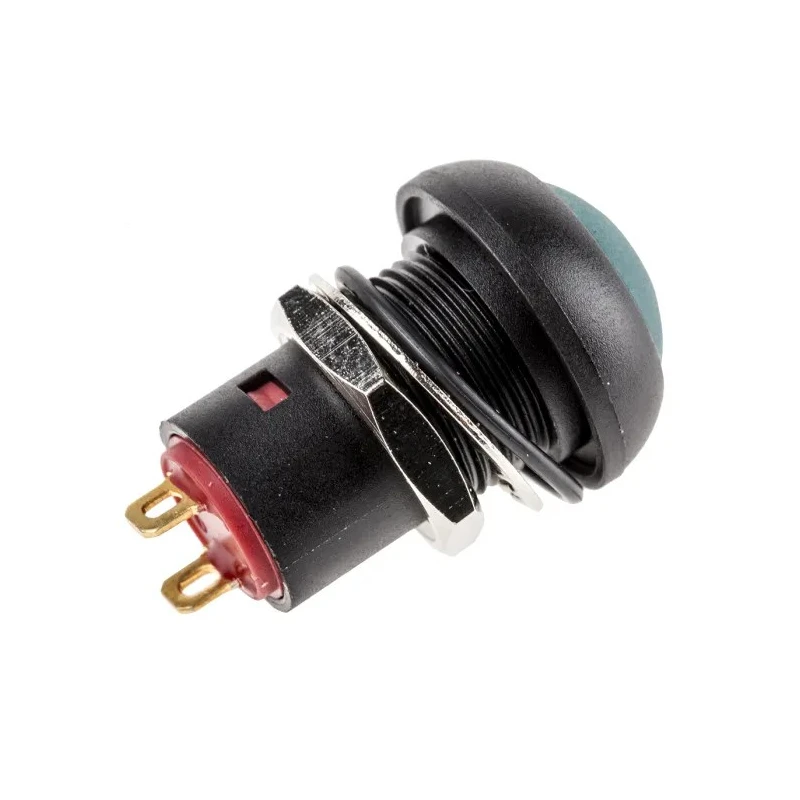

RS PRO Miniature Push Button Switch, Latching, PCB Mount, SPST, Green LED, IP67, 24 V dc 30 V ac 820-7552
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Model | 820-7552 |
| IP Rating | IP67 |
| Mount Type | PCB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | SPST |
| Panel Cutout Size | 13.6 mm |
| Terminal type | Solder Lug |
| LED Colour | Green |
| Switch Operation | Latching |
| Actuator Colour | Green |
| Contact DC Voltage | 24V dc |
| Actuator Style | Cap |
| Switch Contact Current | 100mA |
| Operating Force | 2N-5N |
| Mechanical Life | 1000000 cycles |
| Contact AC Voltage | 30V ac |
| Contact Bounce | 10 ms |
| Soldering | 350°C maximum for 5 seconds |
Key Features
- The switch has a 13.6 mm panel cutout size for precise installation.
- Single Pole Single Throw (SPST) contact configuration ensures reliable on/off control.
- The actuator is cap-style with green illumination for clear status indication.
- Rated for 24 V dc and 30 V ac contact voltage, suitable for various DC and AC applications.
- The switch is designed to operate at a maximum temperature of 85°C, ensuring durability.
- IP67 rating provides dust-tight and waterproof protection for harsh environments.
- Terminal type is solder lug, facilitating easy PCB connection.
- Mechanical life expectancy is 1,000,000 cycles with operating force between 2N to 5N.
Product Description
RS PRO 820-7552 miniature push button switch is a high-quality latching switch designed for PCB mounting with a 13.6 mm panel cutout. Featuring a green LED indicator and cap actuator style, this SPST switch offers reliable on/off control for various electronic applications.
Rated for 24 V dc and 30 V ac, the switch handles contact currents up to 100mA with a robust mechanical life of 1,000,000 cycles. It operates reliably at temperatures up to 85°C and is protected by an IP67 rating, making it suitable for dust-tight and waterproof uses.
The solder lug terminal type allows secure and straightforward PCB integration. The contact system uses gold over silver plating to ensure excellent electrical conductivity and durability. Operating forces range from 2N to 5N with a contact bounce time of 10 ms, delivering precise switching action.
This sub-miniature Push Button Switch is ideal in industries such as test equipment manufacturing, telecommunications, networking hardware, and handheld appliances. Its compact size and rugged design help improve production efficiency in demanding environments.
The switch provides latching actuation for maintained on/off control. Protected by IP67 rating against dust and water ingress for industrial reliability. Durable mechanical life and high-quality contact plating enhance longevity and performance.
Designed for PCB mounting with solder lug terminals for ease of assembly. Operates effectively in temperatures up to 85°C for versatile applications. Explore RS PRO products on EnvMart for premium industrial components trusted worldwide.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 85°C.
This switch requires a panel cutout size of 13.6 mm for precise installation.
It features a Single Pole Single Throw (SPST) contact configuration for reliable on/off control.
The switch is rated for 24 V dc and 30 V ac contact voltage.
The mechanical life expectancy of this switch is 1,000,000 cycles.
It uses solder lug terminals, facilitating easy PCB connection.
The operating force for this model ranges from 2N to 5N.
Yes, it features a green LED indicator for clear status indication.
This model has an IP67 rating, providing dust-tight and waterproof protection.
The contact bounce time for this switch is 10 ms.
The actuator style is cap, and it is colored green.
This switch is suitable for various electronic applications, including test equipment manufacturing and telecommunications.
