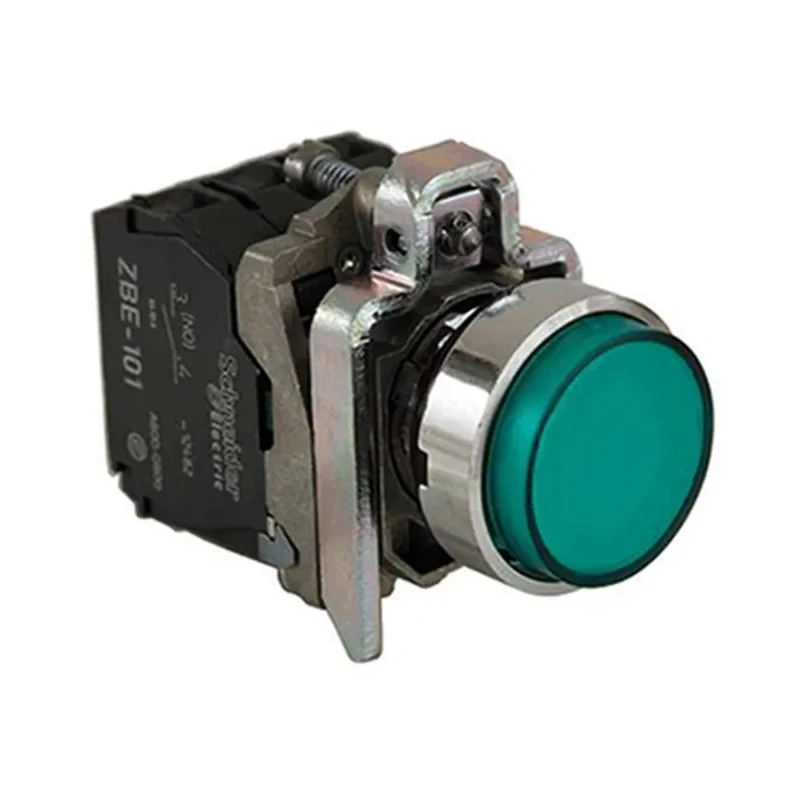

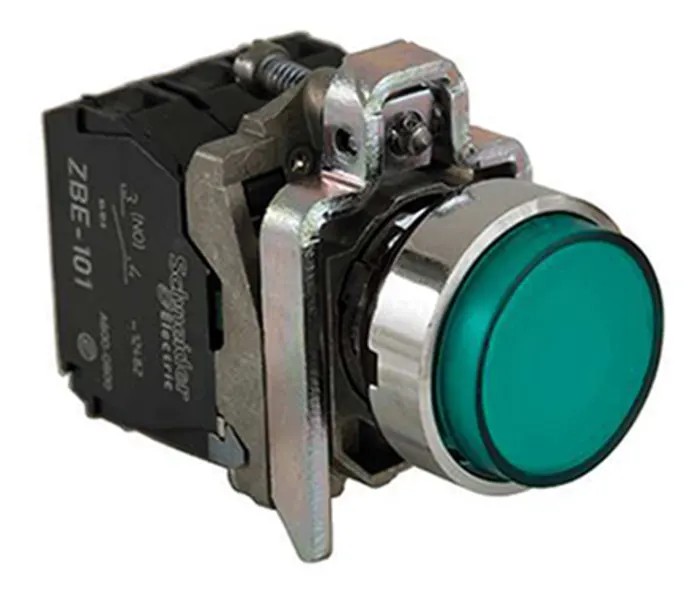

Schneider Electric Harmony XB4 Series Illuminated Push Button Switch Spring Return Panel Mount 22 mm Cutout SPDT XB4BW13G5

Schneider Electric XB4BW13G5 Harmony XB4 Series illuminated push button switch is designed for panel mounting in industrial automation systems. It provides a spring return switch operation with a visually distinct, ergonomically rounded green actuator to facilitate efficient machine control interfaces. This push button switch integrates a universal LED illumination powered by 110-120 V AC/DC supply and features a rugged chromium-plated metal bezel ensuring durability in harsh environments.

The switch installs easily into standard 22 mm diameter panel cutouts and uses screw terminals for secure wiring connections. Its SPDT contact configuration supports up to 10 A contact current at 120 V AC, making it well suited for reliable switching in control circuits.

Operating reliably in extreme temperatures from -40°C to 70°C, this push button is also compliant with several international standards such as EN/IEC 60947 series, UL 508, CSA C22.2 and JIS, ensuring broad safety approval and performance. The push button's robust design achieves IP66, IP67, IP69, and IP69K ingress protection ratings, providing excellent resistance against dust, water jets, and mechanical vibration, ideal for industrial, manufacturing, and automation applications.

This Better World product is repairable by the end user, contributing to sustainable maintenance practices. The clear green LED illumination provides a bright and long-lasting visual interface enhancing operator precision and safety during machine controls.

Suitable for a wide range of industrial, electrical automation, HVAC, and manufacturing control panel applications, the Schneider Electric XB4BW13G5 push button switch integrates reliability, safety, and ergonomic design in one compact switch unit.

The push button features a green actuator color with illumination for enhanced visibility. Designed for standard 22 mm panel cutouts with SPDT contact configuration. The switch is equipped with a screw terminal type for secure electrical connections.

Operates reliably within a wide temperature range from -40°C to 70°C. Certified to multiple international standards including EN/IEC 60947 and UL 508 for safety and durability. Includes a metal bezel for robust mounting and enhanced mechanical protection.

Illumination driven by a universal LED with green color for intuitive status indication. Supports a contact AC voltage rating of 120 V AC and switch contact current of 10 A. Constructed to be impact, dust, water, and vibration resistant with IP66/IP67/IP69/IP69K ratings.

Ergonomic design enables easy operation and clear visual feedback on machine controls. Explore the Schneider Electric products in EnvMart for comprehensive electrical automation solutions and reliable Push Button Switches for your industrial control panels.
