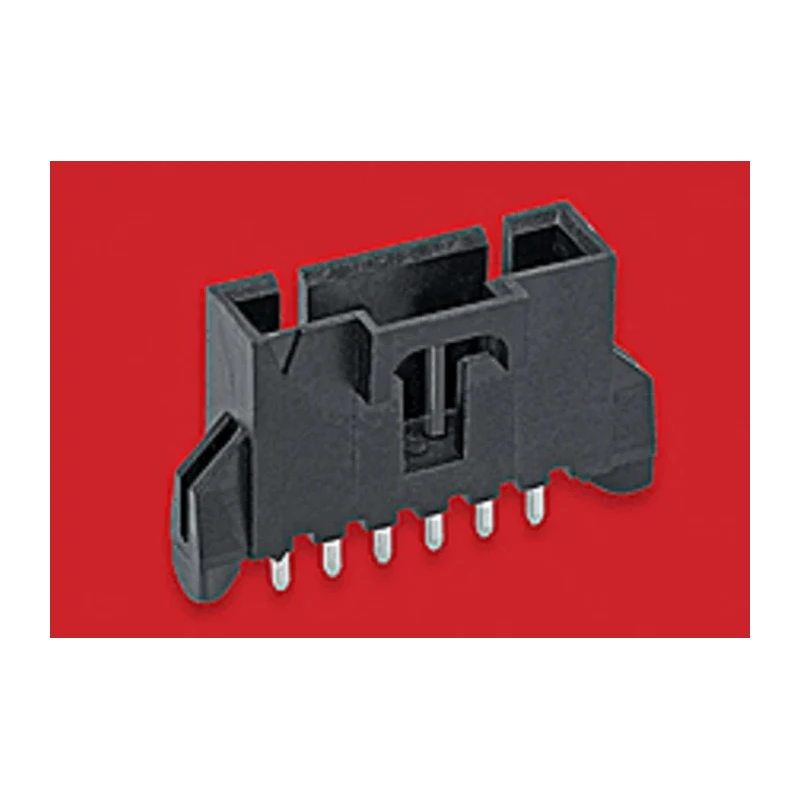

Molex SL Series Straight Through Hole PCB Header 6 Contacts 2.54mm Pitch 1 Row Shrouded 70545-0075

Molex 70545-0075 SL Series Straight Through Hole PCB Header features a 2.54 mm pitch and single row of 6 gold-plated brass contacts housed in thermoplastic. This shrouded connector offers a reliable, wire-to-board connection suitable for various industrial and electronic applications.

Its through-hole mount and solder termination provide durable mechanical and electrical connection on printed circuit boards. Rated for 3 amps current and 250 volts, it is capable of operating in temperatures ranging from -40°C to 105°C, making it suitable for harsh environments.

The 3.3 mm tail pin length ensures secure PCB insertion and solder joint quality. The shrouded design protects contacts during handling and mating, reducing damage risk. This header is widely used in electronics manufacturing, telecommunications equipment, instrumentation, and industrial controllers requiring robust and precise connections.

Additional features include selective gold contact plating for corrosion resistance, high conductivity, and a thermoplastic housing that provides electrical insulation while maintaining mechanical strength.

Constructed with thermoplastic housing for durability and insulation. Brass contacts with 0.76 μm gold plating for corrosion resistance. Single row, 6 contacts with 2.54 mm pitch for standard PCB configurations. Through-hole mount type with solder termination ensures reliable connections.

Operating range from -40°C to 105°C suits varied industrial environments. Rated for 3A current and 250V voltage applications. Shrouded design protects mating contacts and enhances durability.

Choose Molex SL Series PCB Headers for consistent performance in demanding electronics and electrical assemblies. Explore more PCB connectors and components in the Electronics & Electricals category at EnvMart.
