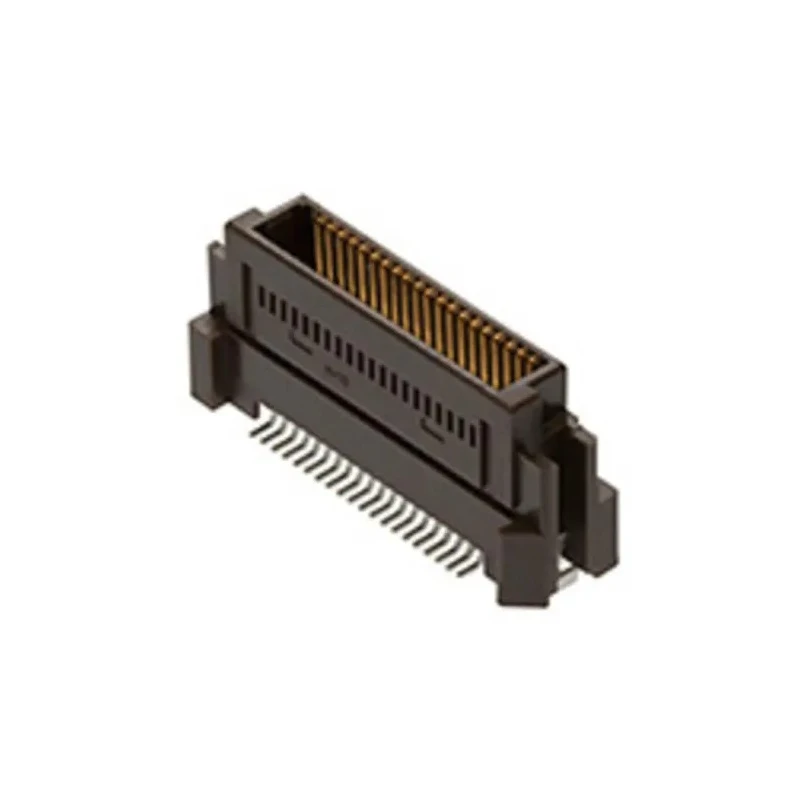

Molex SlimStack Series Straight Surface PCB Header 20 Contact, 0.64 mm Pitch, 2 Row, Shrouded 53627-0274
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 100V |
| Brand | Molex |
| Orientation | Straight |
| Current | 500mA |
| Mount Type | Surface |
| Contact Material | Copper Alloy |
| Series | SlimStack |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.64mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- Offers a compact 0.64 mm pitch spacing for high-density PCB designs.
- Features 20 gold-plated copper alloy contacts for reliable electrical connectivity.
- Designed for surface mount applications with straight orientation.
- Supports operating voltage of 100 V and current up to 500 mA for moderate power requirements.
- Built with a shrouded housing to protect contacts and enhance mechanical stability.
- Operates within the temperature range of -55°C to 105°C for industrial use.
- Mounting system supports vertical stacking heights of 10.00 mm and 16.00 mm.
- Suitable for board-to-board connector systems in electronics manufacturing.
Product Description
Molex 53627-0274 SlimStack Series Straight Surface PCB Header is a high-performance connector designed for electronic applications requiring compact and reliable board-to-board connections. This model features 20 male contacts arranged in 2 rows with a 0.64 mm pitch ensuring space-saving and precise alignment on printed circuit boards (PCBs).
Its surface mount construction and straight orientation facilitate easy placement and soldering in automated assembly processes. The shrouded design provides protection to contact elements, preventing accidental damage and ensuring mechanical durability in demanding environments.
The connector is constructed from copper alloy contacts plated with gold for optimal conductivity and corrosion resistance. Rated for a maximum current of 500 mA and voltage of 100 V, it supports typical electronic control, instrumentation, and communication equipment requirements.
Operating temperature tolerance ranges from -55°C up to 105°C, making this PCB header suitable for varied industrial, telecommunications, and instrumentation applications requiring reliability under temperature stress.
Compact 0.64 mm pitch dual-row layout maximizes PCB real estate efficiency. Gold-plated copper alloy contacts provide excellent conductivity and longevity. Shrouded surface mount design enhances protection and mechanical strength.
Supports board-to-board connector systems with vertical stacking options. Wide operating temperature range allows use in harsh industrial environments. Rated for 100 V and 500 mA to meet moderate power circuit demands. Manufactured in Japan ensuring high quality and consistency.
This Molex SlimStack series PCB Header is ideally suited for electronics manufacturing, telecommunications equipment, industrial control systems, and laboratory instrumentation requiring precise, reliable connector solutions. Discover more PCB connector and header options in the Electronics & Electricals category at EnvMart for comprehensive component sourcing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch size of this PCB header is 0.64 mm, allowing for high-density PCB designs.
This model features 20 male contacts arranged in 2 rows.
It is rated for a maximum operating voltage of 100 V and a current of up to 500 mA.
The operating temperature range for this model is from -55°C to 105°C, suitable for industrial applications.
This model supports surface mount applications with a straight orientation.
The contacts are made of copper alloy and are gold-plated for improved conductivity and corrosion resistance.
The shrouded design protects the contacts from accidental damage and enhances mechanical stability.
It is designed for board-to-board connector systems, facilitating efficient connections between PCBs.
The termination type for this model is solder, allowing for secure connections on the PCB.
This model is manufactured in Japan, ensuring high quality and consistency.
It is suitable for electronics manufacturing, telecommunications equipment, industrial control systems, and laboratory instrumentation.
The mounting system supports vertical stacking heights of 10.00 mm and 16.00 mm, providing flexibility in design.
