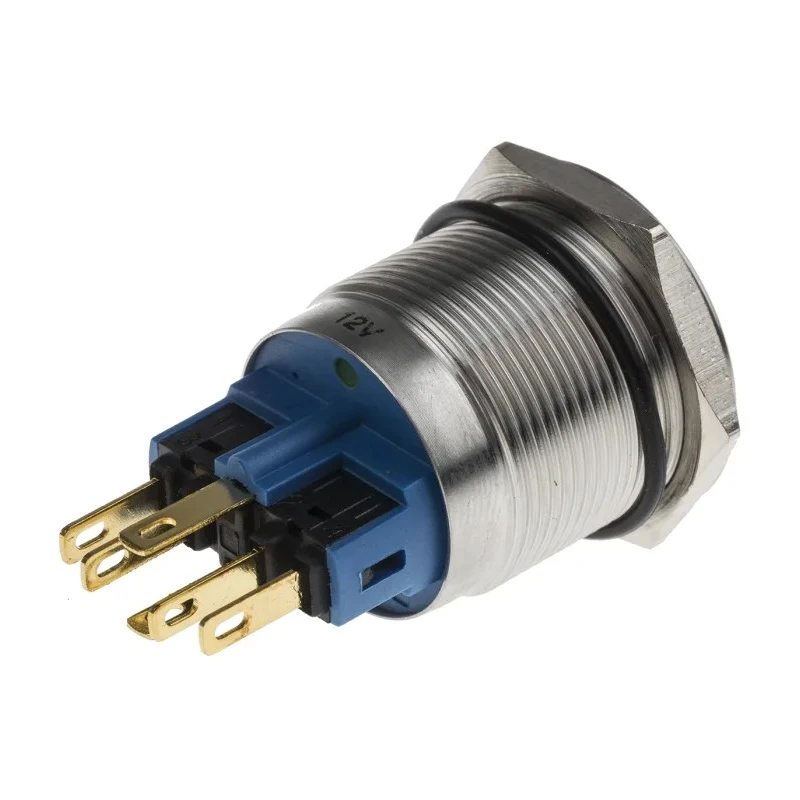

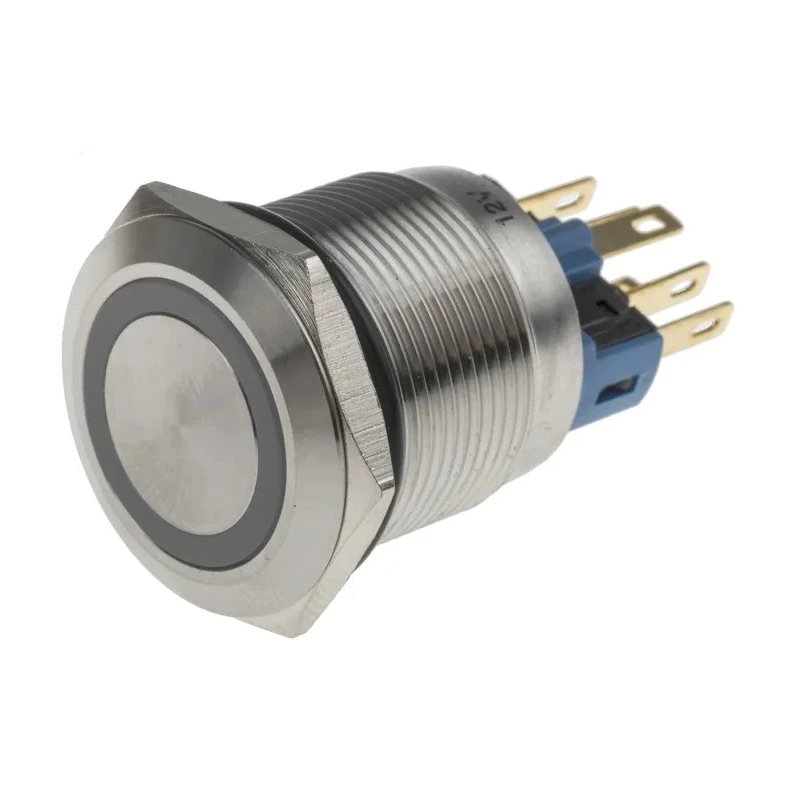

RS PRO Illuminated Latching Push Button Switch, Panel Mount, 22 mm Cutout, SPDT, Green LED, IP65/IP67, 250 V AC, 5A 811-8499

RS PRO 811-8499 is a high-quality illuminated latching push button switch designed for panel mounting applications requiring durability and environmental protection. The switch is engineered to withstand physical abuse with its anti-vandal stainless steel construction, making it ideal for use in public kiosks, outdoor panels, and open dashboards.

This push button switch incorporates a 22 mm cutout size with a flat silver actuator and green LED illumination for clear status indication. It features SPDT contact configuration with quick connect terminals, allowing flexible wiring versatility in various industrial and electrical systems.

Rated for 250 V AC operation and a contact current of 5A, the RS PRO switch provides reliable electrical performance with copper alloy, silver plated contacts and brass terminals. The device has an operational life expectancy of 50,000 cycles and requires a maximum operating force of 4N, ensuring longevity and ease of use.

The product is protected against ingress with IP65 and IP67 front panel ratings, making it resistant to water and dust, suitable for tough environmental conditions with a minimum operating temperature of -20°C. The compliance with RoHS standards further assures environmentally friendly manufacturing.

Originating from Taiwan, Province Of China, this push button switch is a dependable choice for automation, control panels, public infrastructure, and industrial equipment where weatherproof and vandal-resistant switches are essential.

The switch features a 22 mm panel cutout for easy integration. It has a silver flat actuator with green LED illumination. Configured as SPDT with quick connect terminals for versatile use. Designed for a contact current of 5A and operates up to 250 V AC voltage.

Constructed with stainless steel for anti-vandal durability and water/dust resistance. Minimum operating temperature is -20°C, suitable for challenging environments. Offers an operating life of 50,000 cycles with a max operating force of 4 N.

Copper alloy silver plated contacts and brass silver plated terminals ensure conductivity. Complies with RoHS standards and originates from Taiwan, Province Of China. Explore the extensive range of RS PRO Push Button Switches on EnvMart for industrial and automation solutions.
