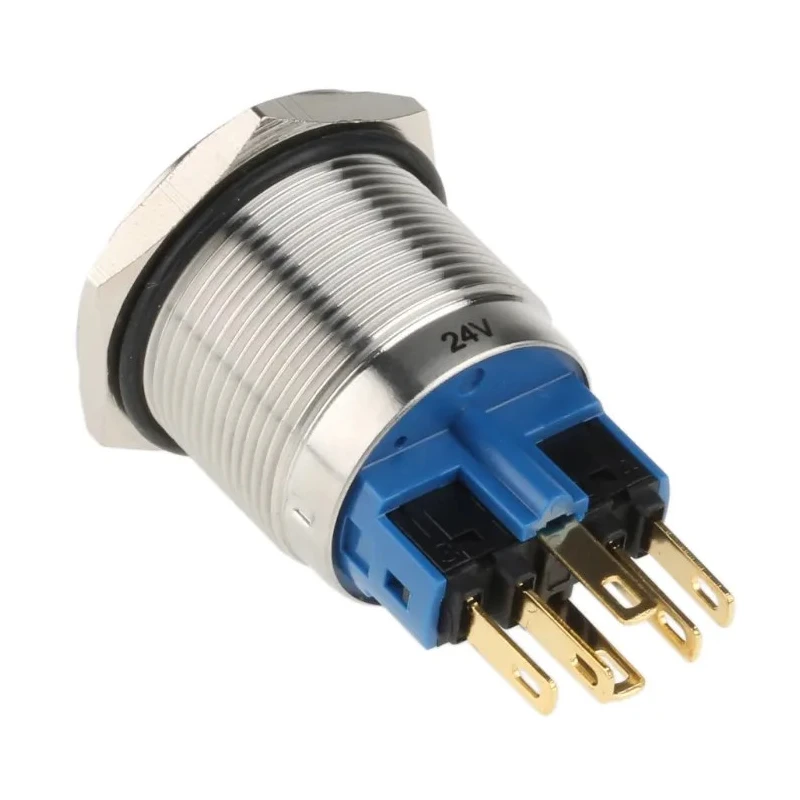

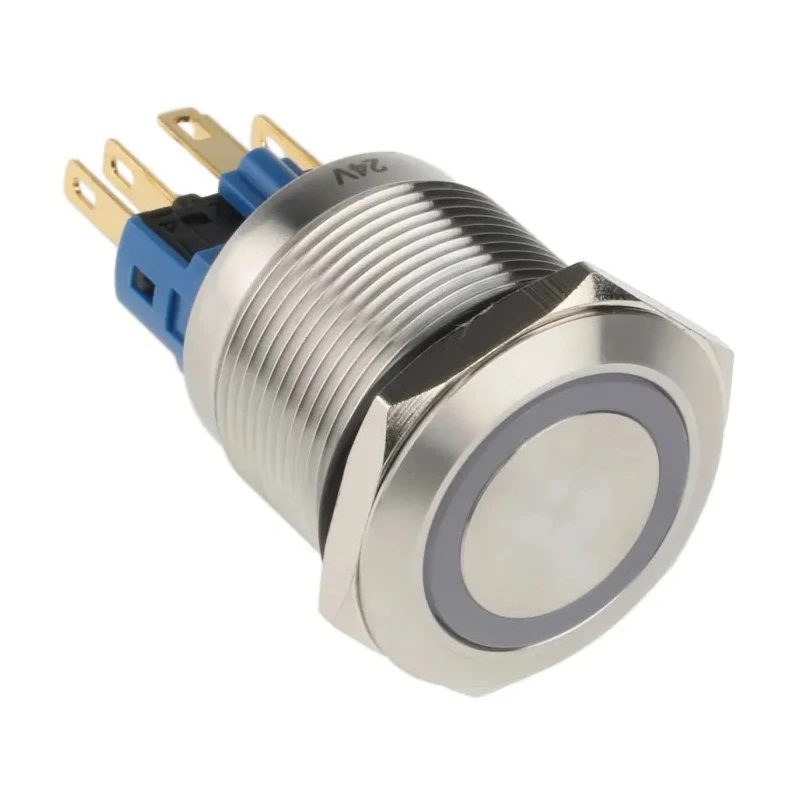

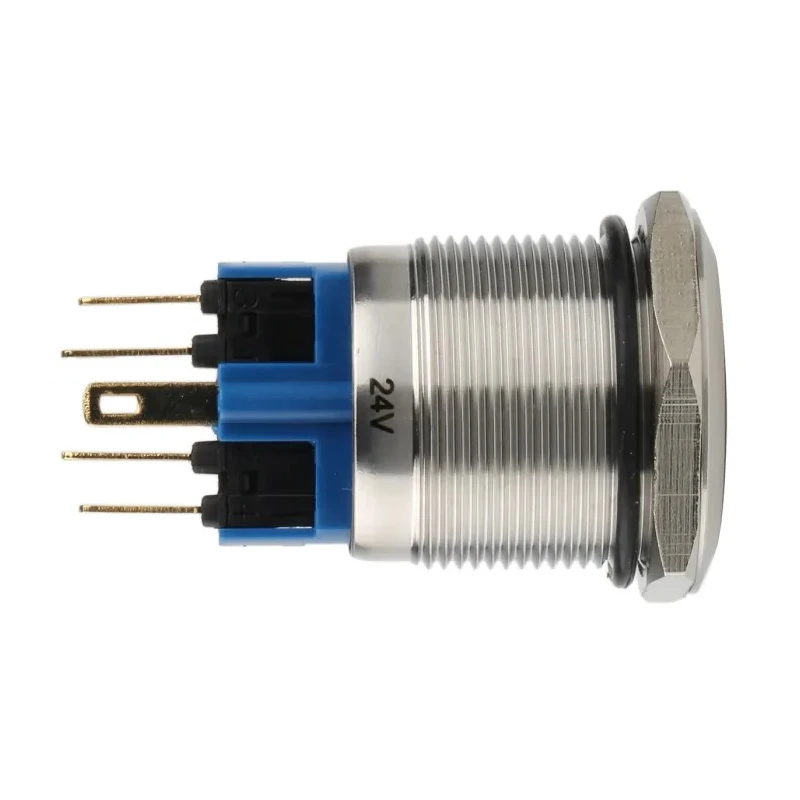

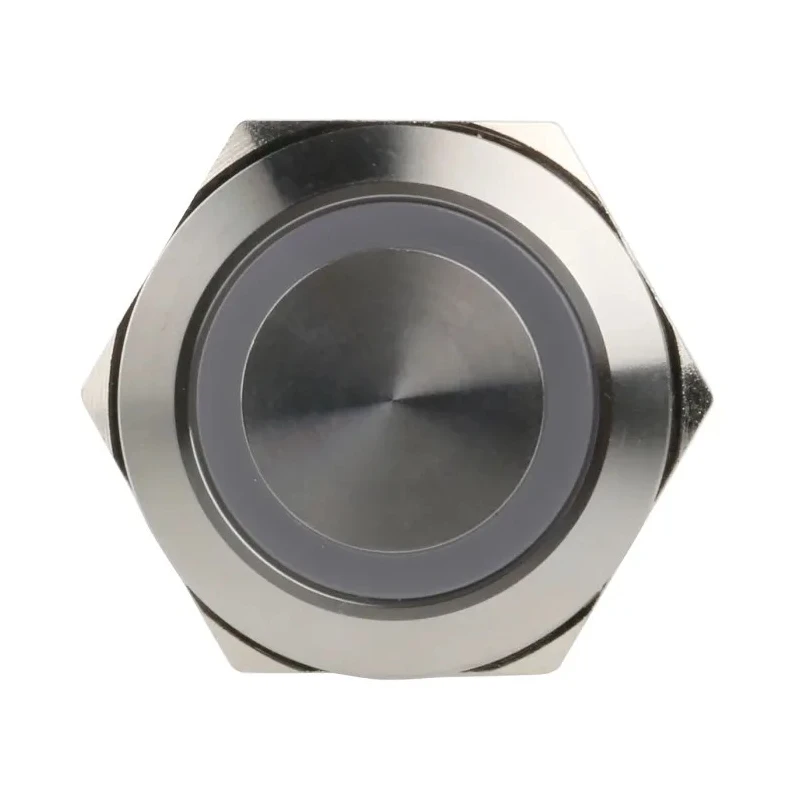

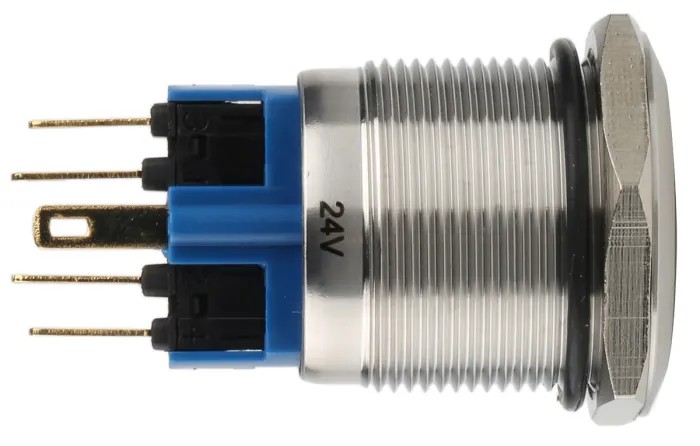

RS PRO Illuminated Push Button Switch, Latching, Panel Mount, 22 mm Cutout, SPDT, Blue LED, IP65, IP67, 250 V AC 5A 811-8496
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Model | 811-8496 |
| IP Rating | IP65, IP67 |
| Mount Type | Panel |
| Contact Configuration | SPDT |
| Switch Configuration | SPDT |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 22 mm |
| Terminal type | Quick Connect |
| Standards/Approvals | RoHS |
| LED Colour | Blue |
| Switch Operation | Latching |
| Actuator Colour | Silver |
| Contact DC Voltage | 250V |
| Actuator Style | Flat |
| Switch Contact Current | 5A |
| Contact AC Voltage | 250V ac |
Key Features
- High-quality anti vandal design suitable for public kiosks and external panels.
- Operating life of 50,000 cycles ensuring durable usage.
- Constructed with stainless steel for maximum robustness and copper alloy silver plated contacts.
- Front panel protection rated to IP67 for enhanced ingress protection.
- Quick connect terminals provide ease of installation and maintenance.
- Flat actuator style with silver actuator color for a sleek appearance.
- Certified RoHS compliance ensuring environmental safety.
- Minimum operating temperature of -20°C for reliable operation in diverse conditions.
Product Description
RS PRO 811-8496 Illuminated Push Button Switch is a latching type switch designed for panel mounting applications requiring high ingress protection and durability. Featuring a 22 mm cutout, this switch supports SPDT (Single Pole Double Throw) contact configuration with a blue LED illumination for clear visual indication.
Constructed with robust stainless steel housing and silver plated copper alloy contacts, the switch offers reliable operation with an operating life of up to 50,000 cycles. It provides excellent resistance to physical damage and environmental factors, with front panel protection rated to IP67 and an overall IP65/IP67 rating ensuring dust-tight and waterproof performance.
The switch supports a contact voltage of 250 V AC and a current rating of 5A, making it suitable for a wide range of industrial, automation, and electrical panel control tasks. The quick connect terminal type simplifies wiring and supports efficient installation.
Environmentally friendly and compliant with RoHS standards, this switch performs reliably even in harsh conditions down to -20°C. Its flat silver actuator with an anti-vandal design is optimized for public installations such as kiosks, outdoor panels, and control dashboards.
Typical applications include industrial machinery control panels, HVAC systems, manufacturing automation controls, and public use electrical interfaces requiring a secure and durable push button switch.
High-quality anti vandal design suitable for public kiosks and external panels. Operating life of 50,000 cycles ensuring durable usage. Constructed with stainless steel for maximum robustness and copper alloy silver plated contacts.
Front panel protection rated to IP67 for enhanced ingress protection. Quick connect terminals provide ease of installation and maintenance. Flat actuator style with silver actuator color for a sleek appearance. Certified RoHS compliance ensuring environmental safety.
Minimum operating temperature of -20°C for reliable operation in diverse conditions. Latching switch operation allowing for stable on/off functionality. Explore more high-quality, reliable Push Button Switches and components in the Electronics & Electricals category at EnvMart to suit your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Single Pole Double Throw (SPDT) contact configuration, allowing it to control multiple circuits with a single switch.
The switch has an IP rating of IP65 and IP67, providing excellent protection against dust and water ingress.
The minimum operating temperature for this unit is -20°C, ensuring reliable performance in various environmental conditions.
It supports a contact current rating of 5A, making it suitable for a variety of electrical applications.
This model features quick connect terminals, which facilitate easier installation and maintenance.
The switch requires a panel cutout size of 22 mm for proper installation.
The switch is equipped with a blue LED, providing clear visual indication when it is activated.
It is constructed with stainless steel for the housing and features silver plated copper alloy contacts for reliable operation.
This model operates as a latching switch, allowing it to maintain its on/off state until pressed again.
Yes, it is certified for RoHS compliance, ensuring it meets environmental safety standards.
Typical applications include industrial machinery control panels, HVAC systems, and public use electrical interfaces.
The actuator style is flat, and it features a silver color for a sleek appearance.
