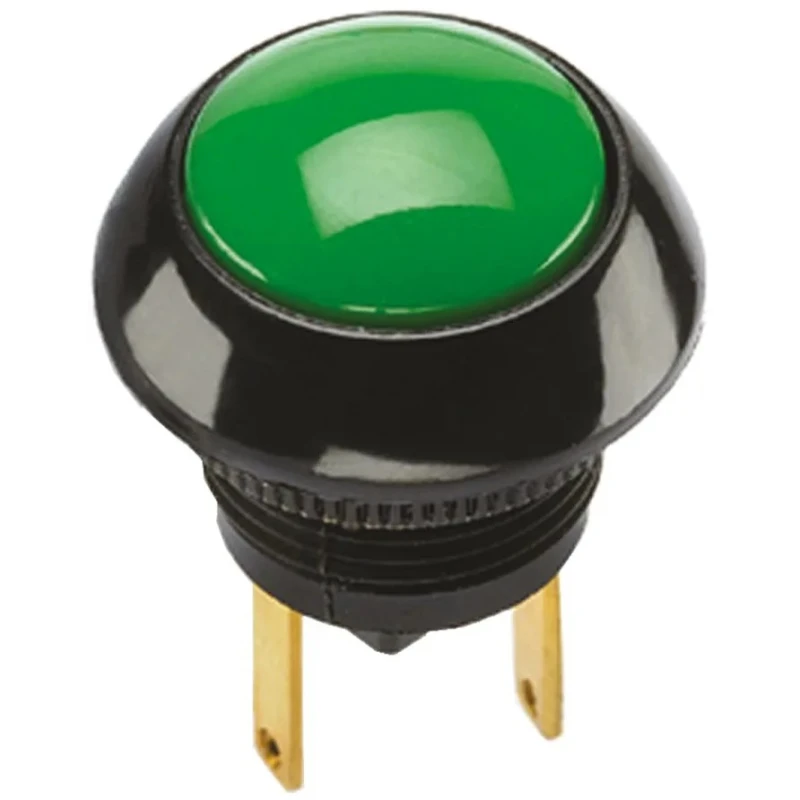

Otto P9 Series Push Button Switch Momentary Panel Mount SPDT Green LED IP68S 28V dc 115V ac P9-513125W

Otto P9-513125W is a high-quality push button switch designed for industrial and commercial panel control applications. It features a momentary on-on switch operation with a SPDT contact configuration and a green LED for clear visual status indication. The switch is built into a black contoured dome style push button with a low profile, housed in a threaded case for hex nut panel mounting. The compact size with a 0.5 x 0.5 inch panel cutout facilitates easy installation in a variety of control panels.

Rated for reliable performance, this switch supports a contact rating of 5 amps resistive at 28 V dc or 115 V ac and 2.5 amps at 250 V ac. It is sealed to IP68S standards, making it watertight and suitable for applications exposed to moisture or harsh environments. The operating temperature range extends from -55 to +85 degrees Celsius, guaranteeing operation in demanding industrial conditions.

The P9 series switches have a mechanical life expectancy of approximately one million operations and an electrical life of 25,000 operations, ensuring long-lasting durability. The low contact resistance provides excellent low-level switching capabilities. This switch series is widely used in applications including panel controls, heavy machinery, instrumentation, computer equipment, and control grips.

The switch is supplied with a nut and panel seal gasket for secure mount installation, and its small black bezel and body design allows for compact and aesthetic panel assemblies. The product conforms to RoHS directives, ensuring reduced hazardous substances and environmental compliance.

This P9-513125W switch is manufactured in the United States, representing high-quality construction and reliability expected in industrial and automation applications. The switch operates with momentary on-on action and includes 1 N/O plus 1 N/C momentary contacts (form Z).

It features a contoured dome style push button, available in flush and raised dome button options. The IP68 watertight sealing protects the switch from submersion up to 1 meter water pressure. Contact rating supports 5A at 28V dc and 115V ac, suitable for resistive and inductive loads.

Threaded body design with a 12.827mm panel knock out size provides secure mounting options. The switch is built for demanding industrial, laboratory, manufacturing, and heavy equipment use cases. Explore more products in the Push Button Switches & Components category on EnvMart for diverse industrial switching solutions.
