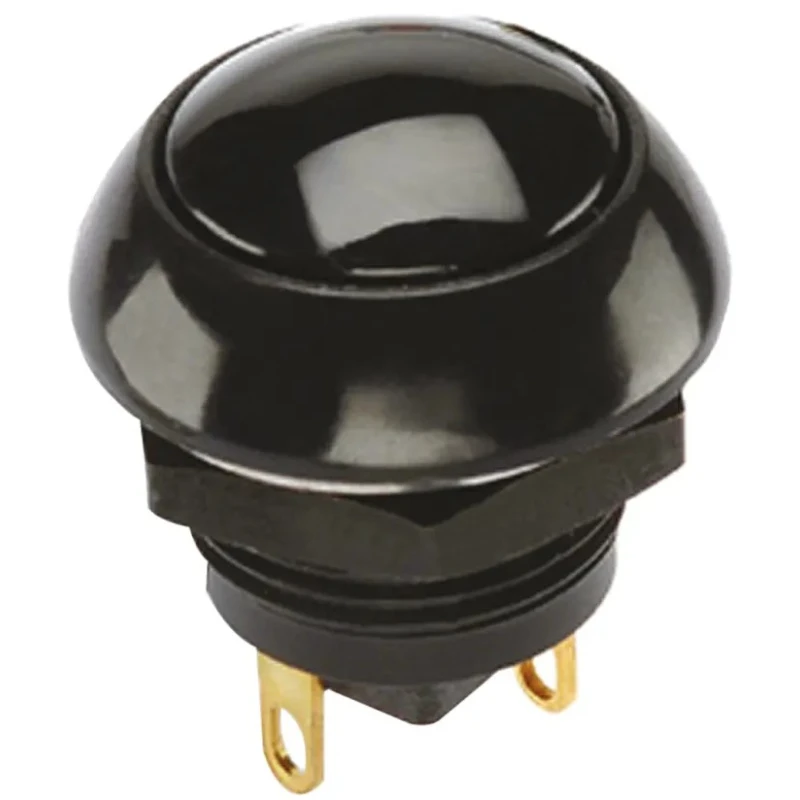

Otto P9 Series Push Button Switch Momentary Panel SPDT Black LED IP68S 28V dc 115V ac P9-513122W
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Otto |
| Operating Temperature | -55 to +85°C |
| Model | P9-513122W |
| IP Rating | IP68S |
| Mount Type | Panel |
| Series | P9 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -55°C |
| Panel Cutout Size | 0.5 x 0.5 in |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| LED Colour | Black |
| Switch Operation | Momentary |
| Actuator Colour | Black |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 4A |
| Contact AC Voltage | 115V ac |
Key Features
- The switch features a compact 0.5 x 0.5 in panel cutout size for easy mounting.
- Momentary action with On-On switch configuration ensures precise control.
- Rated contact current is 4A with a durable mechanical life of approximately one million operations.
- Operates reliably between -55°C to 85°C, suitable for harsh environments.
- Designed with a black actuator color and a solder terminal type for secure electrical connections.
- Built to IP68 watertight standard, submersible to 1 meter water pressure for enhanced protection.
- Constructed with a threaded case and supplied with nut and panel seal gasket.
- Complies with RoHS standards for environmental safety.
Product Description
Otto P9-513122W is a high-quality momentary push button switch from the P9 series, designed for panel mounting with a panel cutout size of 0.5 x 0.5 inches. It features a durable SPDT contact configuration and a black LED actuator, providing clear visual indication and rugged performance in demanding industrial applications.
This switch operates efficiently at contact voltages of 28V dc and 115V ac with a contact current rating of 4A, making it suitable for a broad range of electrical and electronic systems. The momentary action with an On-On configuration delivers precise momentary switching control.
Constructed with a molded black body and a contoured dome-style push button, the device features a threaded body for hex nut mounting, ensuring a secure fit in the panel. It is sealed to IP68S standards, allowing submersion in water up to 1 meter, thus protecting the internal components against moisture and dust ingress.
The operating temperature range from -55°C to 85°C permits use in harsh environmental conditions typically encountered in industrial, manufacturing, and heavy equipment control panels.
Compact 0.5 x 0.5 in panel cutout size for versatile installation. Momentary On-On configuration provides reliable momentary action switching. Low contact resistance aids in low-level switching applications. Robust mechanical life of over one million operations and electrical life of 25,000 cycles.
Threaded body design includes nut and panel seal gasket for easy, secure mounting. Compliant with RoHS environmental standards. Constructed for use in commercial, industrial, laboratory, and heavy machinery control systems.
Waterproof to IP68S, suitable for demanding operations requiring protection from water and dust. Ideal for use in control grips, computers, instruments, and other control panels requiring reliable momentary switches.
This Otto push button switch combines high reliability, environmental sealing, and compact design to meet diverse industrial automation and control requirements. Choose the P9-513122W model for robust switching solutions in electrical panels and equipment.
Browse more Push Button Switches and related components on EnvMart to find the best switches tailored for your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Otto P9-513122W switch features a Single Pole Double Throw (SPDT) contact configuration.
This model operates efficiently within a temperature range of -55°C to +85°C.
The required panel cutout size for the Otto P9-513122W is 0.5 x 0.5 inches.
The maximum contact current rating for this switch is 4A.
It operates at contact voltages of 28V dc and 115V ac.
The switch has an IP68S rating, making it waterproof and suitable for submersion in water up to 1 meter.
This switch is designed for panel mounting with a threaded body for secure installation.
The switch configuration is momentary with an On-On action.
The actuator of this switch is black in color, designed for clear visual indication during operation.
This switch complies with RoHS standards for environmental safety.
The switch has a mechanical life of approximately one million operations.
It features solder terminals for secure electrical connections.
