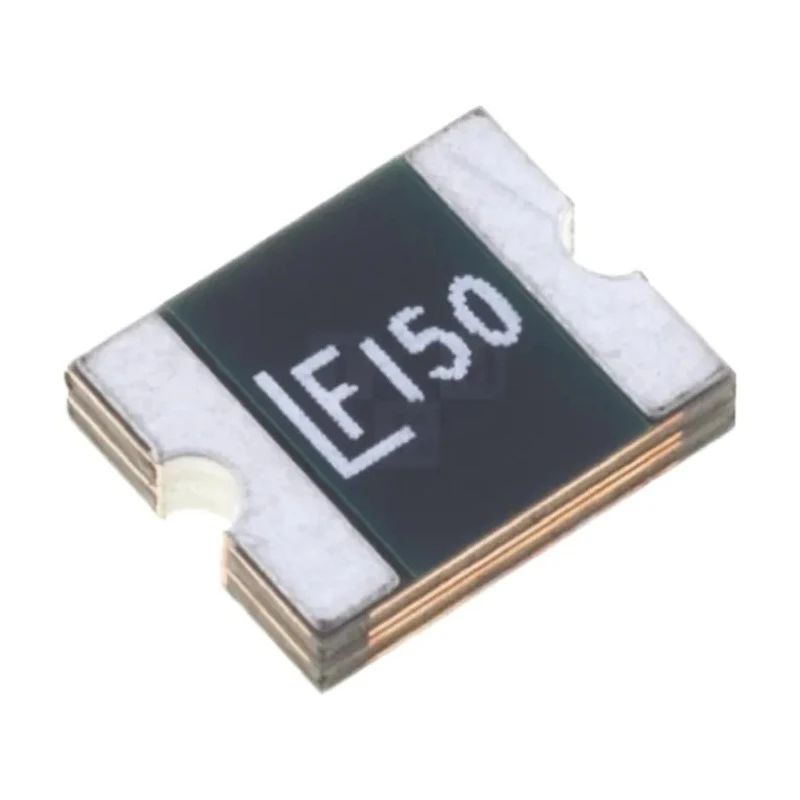

Littelfuse 0.3 A Resettable Fuse, 6 V dc, 60 V dc 2016L030DR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 6, 60V dc |
| Brand | Littelfuse |
| Height | 1.25mm |
| Length | 5.44mm |
| Model | 2016L030DR |
| Width | 4.43mm |
| Series | 2016L |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Package Size | 0.20 x 0.16 in |
| Trip Current | 600mA |
| Power Dissipation | 1.4W |
| Terminal Material | Tin Plated Copper |
| Standards/Approvals | E183209R50119118 |
| Time to Trip | 3s |
| Hold Current | 0.3A |
| Minimum Resistance | 0.5Ω |
| Maximum Resistance | 2.3Ω |
Key Features
- Provides automatic resettable overcurrent protection for electrical circuits.
- Operates at 6 V dc nominal and withstands up to 60 V dc maximum voltage.
- Surface mount package with compact dimensions of 5.44 mm length, 4.43 mm width, and 1.25 mm height.
- Trip current rating of 600 mA with a time to trip of 3 seconds.
- Power dissipation rating of 1.4 W ensuring reliable performance.
- Terminal material made of tin plated copper for effective connectivity.
- Minimum resistance of 0.5 ohms and maximum resistance of 2.3 ohms.
- Operates safely within temperature range from -40°C to 85°C maximum.
Product Description
Littelfuse 2016L030DR resettable fuse is a surface mount PolySwitch (PTC) device designed to provide reliable overcurrent protection with automatic reset capability. It features a hold current rating of 0.3 A and a trip current of 600 mA, optimized for electronics requiring compact circuit protection at voltages of 6 V dc nominal and 60 V dc maximum.
The small package size measuring 5.44 mm in length, 4.43 mm in width, and 1.25 mm in height allows efficient use of board space. Tin plated copper terminals ensure robust electrical connections. This resettable fuse maintains circuit integrity by switching rapidly from a low resistance state to a high resistance state during overload conditions and resets when the fault is removed.
Its power dissipation rating of 1.4 W and operating temperature range from -40°C to 85°C make it suitable for a wide range of applications including security systems, power supplies, transformers, automotive and medical electronics, instrumentation and control systems, as well as computers and telecommunications equipment. The device is maintenance free and supports thousands of automatic reset cycles without replacement.
Automatic resettable overcurrent protection with maintenance free design. Surface mount technology reduces assembly complexity and saves space. Wide operating temperature range ensures performance in harsh environments. Tin plated copper terminals deliver reliable connectivity and corrosion resistance.
Low profile dimensions optimize circuit board real estate. Suitable for a variety of industries including industrial, automotive, medical, and telecommunications. Power dissipation rating of 1.4 W supports moderate circuit loads.
Complies with standards indicated by approvals: E183209R50119118. Series 2016L for easy identification and interoperability.
This Littelfuse resettable fuse offers an excellent solution for protecting sensitive electrical and electronic equipment across industrial and commercial sectors. Browse more Resettable Fuses in EnvMart's extensive electronics and electrical components catalogue for compatible circuit protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The hold current rating of this resettable fuse is 0.3 A.
It can withstand a maximum voltage of 60 V dc.
The dimensions are 5.44 mm in length, 4.43 mm in width, and 1.25 mm in height.
The trip current rating is 600 mA, and the time to trip is 3 seconds.
The power dissipation rating is 1.4 W.
It operates within a temperature range from -40°C to 85°C.
The terminals are made of tin plated copper, ensuring effective connectivity.
Yes, it is suitable for a variety of applications including automotive, medical, and telecommunications.
The minimum resistance is 0.5 ohms and the maximum resistance is 2.3 ohms.
It complies with the standard indicated by approvals: E183209R50119118.
It comes in a surface mount package, which helps reduce assembly complexity.
This resettable fuse supports thousands of automatic reset cycles without replacement.
