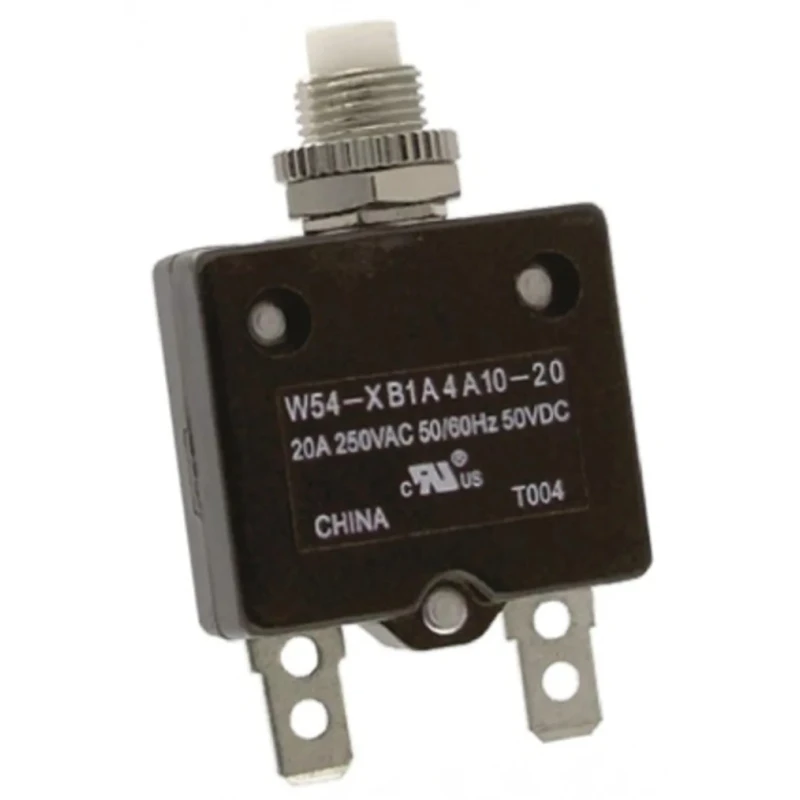

TE Connectivity Thermal Circuit Breaker 20A Current Rating 1-Pole Direct Mount W54-XB1A4A10-20
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Model | W54-XB1A4A10-20 |
| Width | 14.6mm |
| Mount Type | Direct |
| Current Rating | 20A |
| Series | W54 |
| Terminal type | Screw |
| Breaking Capacity | 1000A |
| Number of Poles | 1 |
| Standards/Approvals | RoHS, CE |
| Rated AC Voltage | 250V ac |
| Rated DC Voltage | 50V dc |
| Tripping Characteristics | Thermal, Series Trip, Trip at 135% within 1 hour at +25°C |
| Tripping Mechanism | Thermal |
| Reset Actuator Type | Toggle Switch |
| Mount Hole Size | 18.8 mm |
| Break Time | Medium |
Key Features
- Rated AC voltage of 250V and DC voltage of 50V for versatile electrical applications.
- Breaking capacity of 1000A ensuring reliable circuit protection.
- Thermal tripping mechanism with series trip characteristics for precise overload response.
- Toggle switch reset actuator allows easy manual reset after tripping.
- Compact width of 14.6mm and mount hole size of 18.8mm for direct mounting.
- Screw terminal type ensures secure electrical connections.
- Break time classified as medium, suitable for general protection needs.
- Compliance with RoHS and CE standards guaranteeing quality and safety.
Product Description
TE Connectivity W54-XB1A4A10-20 Thermal Circuit Breaker is a high-quality electrical protection device designed for industrial and commercial electrical systems. Featuring a 20A current rating and single-pole configuration, this circuit breaker provides dependable interruption of electrical current to prevent damage and enhance safety.
The direct mount design with a width of 14.6mm and mount hole size of 18.8mm facilitates straightforward installation in compact panels and enclosures. It features a toggle switch reset actuator allowing manual reset after the device trips, improving operational convenience.
Equipped with a thermal tripping mechanism and series trip characteristics, it reliably trips at 135% current within one hour at 25 degrees Celsius, protecting circuits from sustained overloads. Rated for 250V AC and 50V DC use, this breaker offers flexibility across various voltage systems.
The device supports a robust breaking capacity of 1000A and uses screw terminals ensuring solid and secure wire connections. Its medium break time balances protection speed and prevent nuisance tripping in typical industrial settings.
Certified with RoHS and CE standards, this thermal breaker meets international conformity and environmental regulations. It is manufactured in China and supplied in new condition. Rated AC voltage of 250V and DC voltage of 50V for versatile electrical applications.
Breaking capacity of 1000A ensuring reliable circuit protection. Thermal tripping mechanism with series trip characteristics for precise overload response. Toggle switch reset actuator allows easy manual reset after tripping.
Compact width of 14.6mm and mount hole size of 18.8mm for direct mounting. Screw terminal type ensures secure electrical connections. Break time classified as medium, suitable for general protection needs. Compliance with RoHS and CE standards guaranteeing quality and safety.
Country of origin China, with new product condition for assured reliability.
This Thermal Circuit Breaker is ideal for use in electrical automation, control panels, HVAC systems, and industrial machinery applications. Find more products from TE Connectivity and related electrical safety devices in EnvMart's comprehensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This thermal circuit breaker has a current rating of 20A.
It is rated for 250V AC and 50V DC, making it suitable for various electrical applications.
The breaking capacity is 1000A, ensuring reliable circuit protection.
The thermal tripping mechanism trips the breaker at 135% of the rated current within one hour at 25 degrees Celsius, providing precise overload protection.
It features a toggle switch reset actuator, which allows for easy manual reset after tripping.
This model has a compact width of 14.6mm and a mount hole size of 18.8mm for direct mounting.
It uses screw terminals, ensuring secure electrical connections.
The break time is classified as medium, suitable for general protection needs in industrial settings.
Yes, it complies with RoHS and CE standards, ensuring quality and safety.
It is manufactured in China.
This thermal circuit breaker is ideal for use in electrical automation, control panels, HVAC systems, and industrial machinery applications.
This model belongs to the W54 series of thermal circuit breakers.
