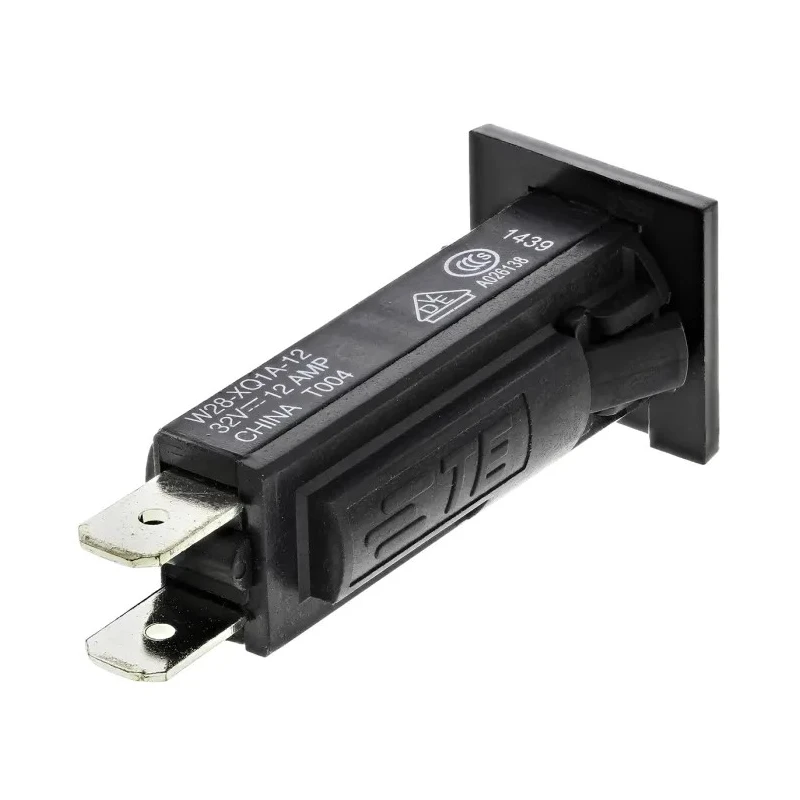

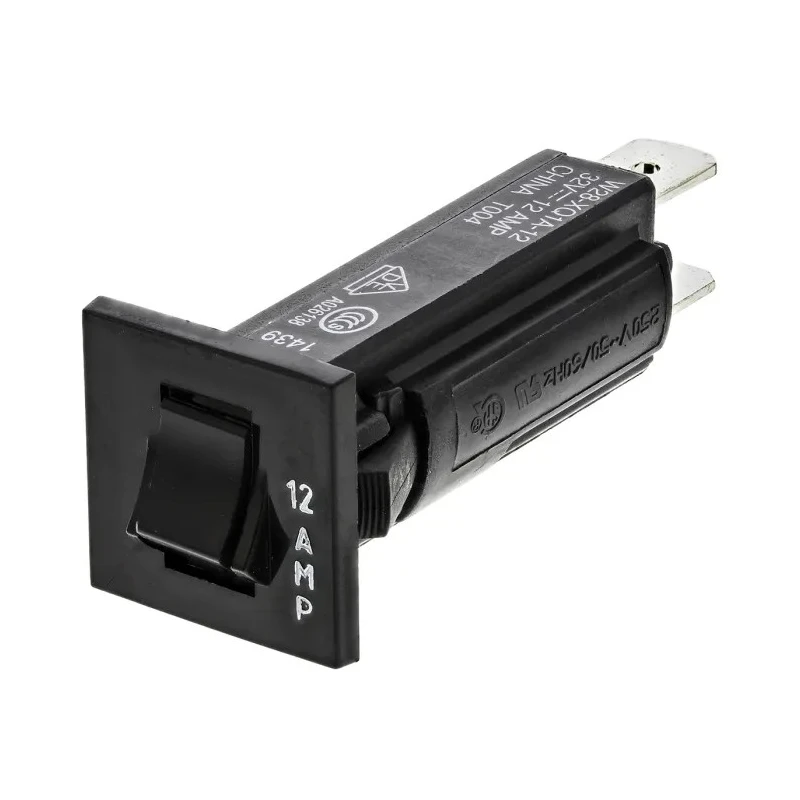

TE Connectivity Thermal Circuit Breaker 12A Current Rating 1-Pole Direct Mount W28-XQ1A-12
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 53.22mm |
| Model | W28-XQ1A-12 |
| Depth | 19.31mm |
| Width | 19.3mm |
| Mount Type | Direct |
| Current Rating | 12A |
| Series | W28 |
| Terminal type | Screw |
| Breaking Capacity | 1000A |
| Number of Poles | 1 |
| Standards/Approvals | CE, RoHS |
| Rated AC Voltage | 240V ac |
| Rated DC Voltage | 50V dc |
| Tripping Characteristics | but must trip at 135% of rating within one hour at +25°C, May trip between 101% and 134% |
| Tripping Mechanism | Thermal |
| Reset Actuator Type | Toggle Switch |
| Mount Hole Size | 3.33 mm |
| Break Time | Medium |
Key Features
- Operates with a thermal tripping mechanism ensuring accurate circuit protection.
- Designed to trip at 135% of rated current within one hour at 25°C.
- Equipped with a toggle switch reset actuator for easy manual reset.
- Supports rated AC voltage up to 240V and DC voltage up to 50V.
- Features a breaking capacity of 1000A for safe interruption of circuits.
- Compact dimensions with a width of 19.3mm, height of 53.22mm, and depth of 19.31mm.
- Mount type is direct with screw terminal connections for secure installation.
- Includes a mount hole size of 3.33 mm for fixing purposes.
Product Description
TE Connectivity W28-XQ1A-12 Thermal Circuit Breaker is a versatile electrical protection device rated at 12A current capacity with 1-pole configuration designed for direct mounting. This breaker operates using a precise thermal tripping mechanism, ensuring the circuit trips at 135% of the rated current within one hour at ambient temperature of 25°C, with potential tripping between 101% and 134%, guaranteeing robust protection against overloads.
The unit includes a toggle switch actuator for manual reset actions. It is suitable for applications requiring rated AC voltage of up to 240V and DC voltage up to 50V. With a breaking capacity of 1000A, it safely interrupts fault currents to protect electrical circuits from damage. The compact dimensions (width 19.3 mm, height 53.22 mm, depth 19.31 mm) facilitate installation in constrained electrical panels.
The device mounts directly with screw-type terminals securing reliable electrical connections and includes a mount hole size of 3.33 mm. It complies with CE and RoHS standards, confirming its adherence to safety and environmental protocols, making it suitable for industrial, automation, electrical distribution, and general-purpose circuit protection environments.
Operates with a thermal tripping mechanism ensuring accurate circuit protection. Designed to trip at 135% of rated current within one hour at 25°C. Equipped with a toggle switch reset actuator for easy manual reset. Supports rated AC voltage up to 240V and DC voltage up to 50V.
Features a breaking capacity of 1000A for safe interruption of circuits. Compact dimensions with direct mounting and screw terminals. Mount hole size 3.33 mm for secure installation. Complies with CE and RoHS standards for safety and environmental concerns.
Medium break time compatible with industrial electrical applications.
This thermal circuit breaker is ideal for electrical distribution panels, automation systems, and industrial control panels, providing reliable overload protection while supporting reset and reuse after tripping. Explore more products in the Thermal Circuit Breaker category on EnvMart for a comprehensive range of electrical protection devices.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 12A.
It features a breaking capacity of 1000A, allowing for safe interruption of fault currents.
The dimensions are 19.3mm in width, 53.22mm in height, and 19.31mm in depth.
It operates with a thermal tripping mechanism, designed to trip at 135% of the rated current within one hour at 25°C.
It supports a rated AC voltage of up to 240V and a DC voltage of up to 50V.
It is equipped with a toggle switch reset actuator for easy manual reset.
This unit features a direct mount type with screw terminal connections for secure installation.
The mount hole size is 3.33 mm, allowing for secure fixing during installation.
It complies with CE and RoHS standards, confirming adherence to safety and environmental protocols.
This model is configured as a 1-pole thermal circuit breaker.
It is suitable for industrial, automation, electrical distribution, and general-purpose circuit protection environments.
It is designed to trip between 101% and 134% of the rated current, in addition to the specified 135% trip point.
