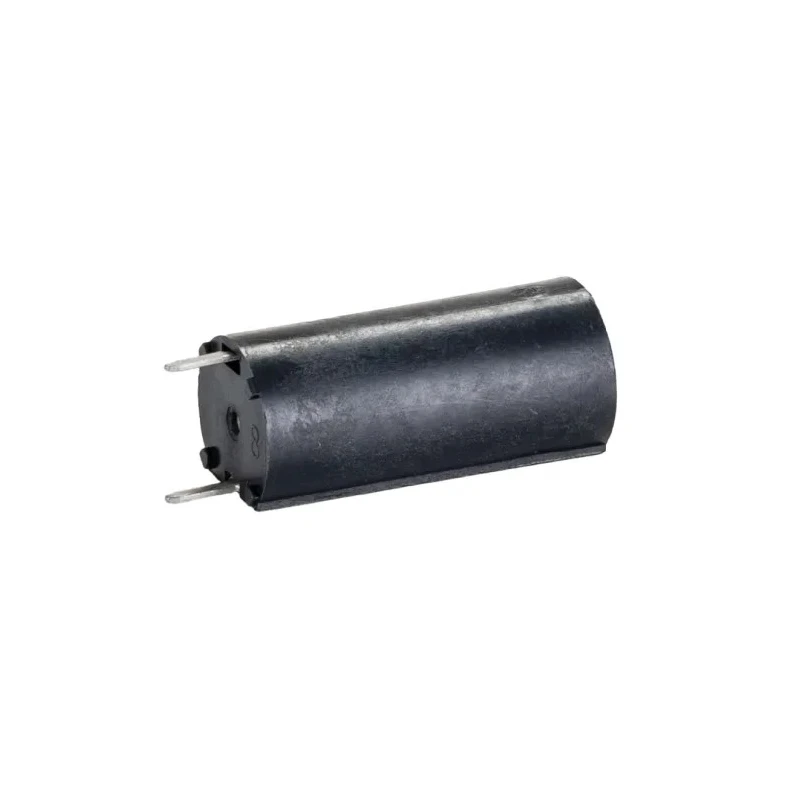

Eaton 10A PCB Mount Fuse Holder for 5 x 20 mm, 250V AC H15-V-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Eaton |
| Body Material | Thermoplastic |
| Model | H15-V-1 |
| Contact Material | Tin Plated, Copper |
| Series | H15 |
| Maximum Operating Temperature | 41°C |
| Minimum Operating Temperature | 24°C |
| Terminal type | Solder |
| Standards/Approvals | cULusVoltage Rating |
| Compatible Fuse Size | 5 x 20 mm |
| Cap Style | Carrier, Threaded Cap |
Key Features
- Compatible with 5 x 20 mm standard fuses for broad application use.
- Thermoplastic high-temperature body material with UL 94V0 rating ensures durability.
- Spring-loaded bayonet style cap allows easy fuse replacement.
- Available in vertical and horizontal mounting options for installation flexibility.
- Contact terminals are tin plated copper ensuring excellent conductivity.
- Meets cULus standards for electrical safety and compliance.
- Suitable for electrical and mechanical industry control panels and consumer electronics.
- Solder terminals designed for wave immersion up to 260°C ensuring secure installation.
Product Description
Eaton H15-V-1 PCB Mount Fuse Holder is a robust electrical component designed for mounting on printed circuit boards and compatible with 5 x 20 mm fuses. It supports a 10A current rating and a maximum voltage rating of 250V AC, making it ideal for reliable fuse protection in diverse electronic and electrical systems.
The fuse holder body is made from a high-temperature thermoplastic material compliant with UL 94V0 flammability standards, ensuring safe operation even under elevated ambient temperatures up to 24°C and temperature rises up to 41°C during usage. The spring-loaded bayonet type carrier allows for easy and quick fuse replacement, minimizing maintenance downtime.
The H15 series offers interchangeable fuse carriers available in both vertical and horizontal mounting styles, providing flexibility for various industrial and consumer electronic applications. The contact material consists of copper plated with tin, optimizing electrical conductivity and corrosion resistance. The terminal type is solderable, with recommended wave immersion soldering at temperatures up to 260°C for no more than 10 seconds, ensuring consistent and reliable solder joints.
This fuse holder is cULus certified, reflecting compliance with stringent North American safety standards, making it suitable for use in automation control panels, electrical equipment in the mechanical industry, and consumer electronics where dependable fuse protection is critical.
Compatible with 5 x 20 mm standard fuses for broad application use. Thermoplastic high-temperature body material with UL 94V0 rating ensures durability. Spring-loaded bayonet style cap allows easy fuse replacement. Available in vertical and horizontal mounting options for installation flexibility.
Contact terminals are tin plated copper ensuring excellent conductivity. Meets cULus standards for electrical safety and compliance. Suitable for electrical and mechanical industry control panels and consumer electronics.
Solder terminals designed for wave immersion up to 260°C ensuring secure installation.
Set your projects and industrial applications up for safety and reliability with Eaton fuse holders. Browse our comprehensive selection under the Fuse Holders category at EnvMart for competitive options.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this fuse holder is 250V AC.
This model has a current rating of 10A.
It is compatible with 5 x 20 mm standard fuses.
The body is made from high-temperature thermoplastic material, and the contact terminals are made of tin plated copper.
This model is available in both vertical and horizontal mounting options for installation flexibility.
The solder terminals are designed for wave immersion soldering at temperatures up to 260°C for no more than 10 seconds.
The minimum operating temperature is 24°C, and the maximum operating temperature is 41°C.
Yes, it meets cULus standards for electrical safety and compliance.
The cap style is a spring-loaded bayonet type carrier with a threaded cap for easy fuse replacement.
It is suitable for use in electrical and mechanical industry control panels and consumer electronics.
This fuse holder belongs to the H15 series.
The country of origin for this fuse holder is India.
