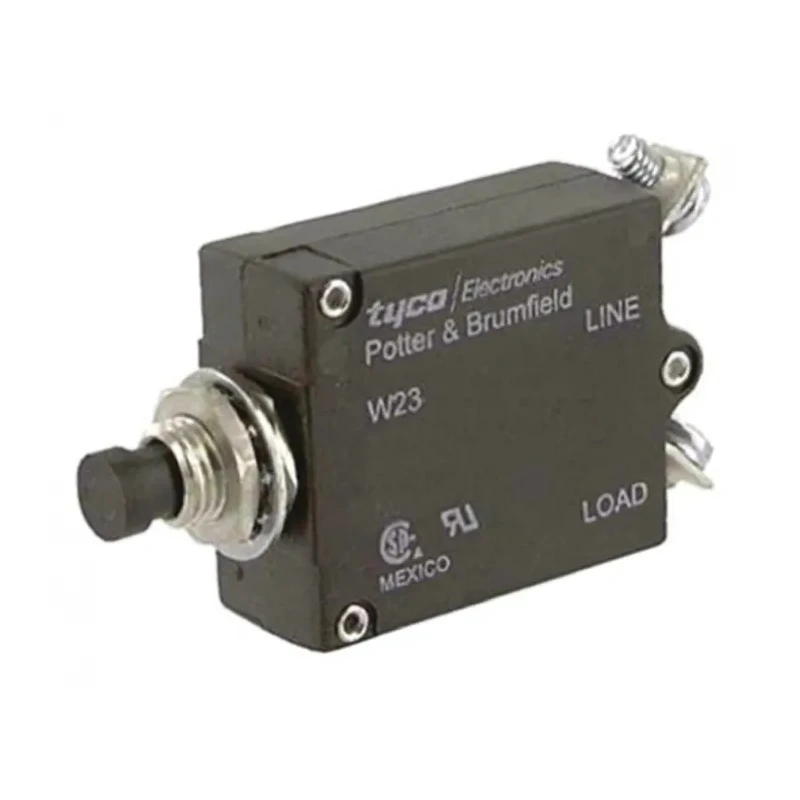

TE Connectivity Thermal Circuit Breaker 0.5 to 50 A Range 7.5A Current Rating 1-Pole Direct Mount W23-X1A1G-7.50
Specifications
| Country of Origin | India |
|---|---|
| Range | 0.5 to 50 A |
| Brand | TE Connectivity |
| Model | W23-X1A1G-7.50 |
| Width | 17.52mm |
| Mount Type | Direct |
| Current Rating | 7.5A |
| Series | W23 |
| Terminal type | Screw |
| Breaking Capacity | 1000A |
| Number of Poles | 1 |
| Standards/Approvals | CE, RoHS |
| Rated AC Voltage | 240V ac |
| Rated DC Voltage | 50V dc |
| Tripping Characteristics | Trip-free operation, Trip at 135% in one hour |
| Tripping Mechanism | Thermal |
| Reset Actuator Type | Toggle Switch |
| Mount Hole Size | 3.33 mm |
| Break Time | Medium |
Key Features
- Suitable for 0.5 to 50 A current range applications.
- Single-pole design optimizes control and protection of circuits.
- Direct mount type with a 3.33 mm mounting hole size for easy installation.
- Screw-type terminal ensures secure and reliable electrical connection.
- Toggle switch reset actuator provides manual control and reset capability.
- Thermal tripping mechanism with trip-free operation for safety.
- Rated for 240V AC and 50V DC voltages to suit different circuit requirements.
- Breaking capacity of 1000A to safely interrupt fault currents.
Product Description
TE Connectivity W23-X1A1G-7.50 is a thermal circuit breaker designed for electrical protection applications with current ratings from 0.5 to 50 A. It features a single pole configuration and is intended for direct mounting, making it suitable for compact and secure electrical panels in industrial, commercial, and automation systems.
This circuit breaker operates on a thermal tripping mechanism and provides trip-free operation, which means it trips at 135% of rated current within one hour to ensure circuit protection without nuisance trips. The reset actuator is a toggle switch that allows for manual resetting of the breaker after a trip event.
The device is rated for 240V AC and 50V DC, supporting a wide range of electrical installations. With a breaking capacity of 1000A, it is capable of interrupting high fault currents safely. The screw terminal type ensures reliable electrical connections, while the direct mount and 3.33 mm mounting hole provide ease of installation.
Compliant with CE and RoHS standards, this thermal circuit breaker meets essential safety and environmental requirements. Its compact width of 17.52 mm allows efficient use of panel space, making it an ideal choice for electrical automation, industrial control, and power distribution circuits.
Suitable for 0.5 to 50 A current range applications. Single-pole design for precise circuit control and protection. Direct mount type with 3.33 mm mounting hole size for secure installation. Screw terminal type for reliable connectivity.
Toggle switch reset actuator. Trip-free thermal tripping mechanism for safety. Rated for 240V AC and 50V DC voltages. 1000A breaking capacity for high fault current interruption. CE and RoHS compliant for quality and environmental standards.
Compact width of 17.52 mm for space-efficient panel mounting.
This Thermal Circuit Breaker is suitable for use in industrial automation, electrical distribution panels, machinery protection, HVAC systems, and other electrical control systems that demand reliable overcurrent protection. TE Connectivity’s W23 series is recognized for robust construction, consistent performance, and compliance with international standards.
Discover the full range of TE Connectivity circuit breakers and electrical components on EnvMart to enhance your industrial electrical projects with quality and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 7.5 A, suitable for applications within the 0.5 to 50 A range.
It has a breaking capacity of 1000 A, allowing it to safely interrupt high fault currents.
This unit is rated for 240V AC and 50V DC, accommodating various electrical installations.
It features a direct mount type with a mounting hole size of 3.33 mm for easy installation.
The circuit breaker operates on a thermal tripping mechanism, providing trip-free operation.
It uses a toggle switch reset actuator, which allows for manual control and reset capability after a trip event.
The circuit breaker has a compact width of 17.52 mm, making it suitable for efficient panel space usage.
This model is compliant with CE and RoHS standards, ensuring it meets essential safety and environmental requirements.
It has a trip characteristic of tripping at 135% of the rated current within one hour, ensuring protection without nuisance trips.
It features a screw terminal type, ensuring secure and reliable electrical connections.
This thermal circuit breaker is suitable for industrial automation, electrical distribution panels, machinery protection, and HVAC systems.
This model is part of the W23 series of thermal circuit breakers by TE Connectivity.
