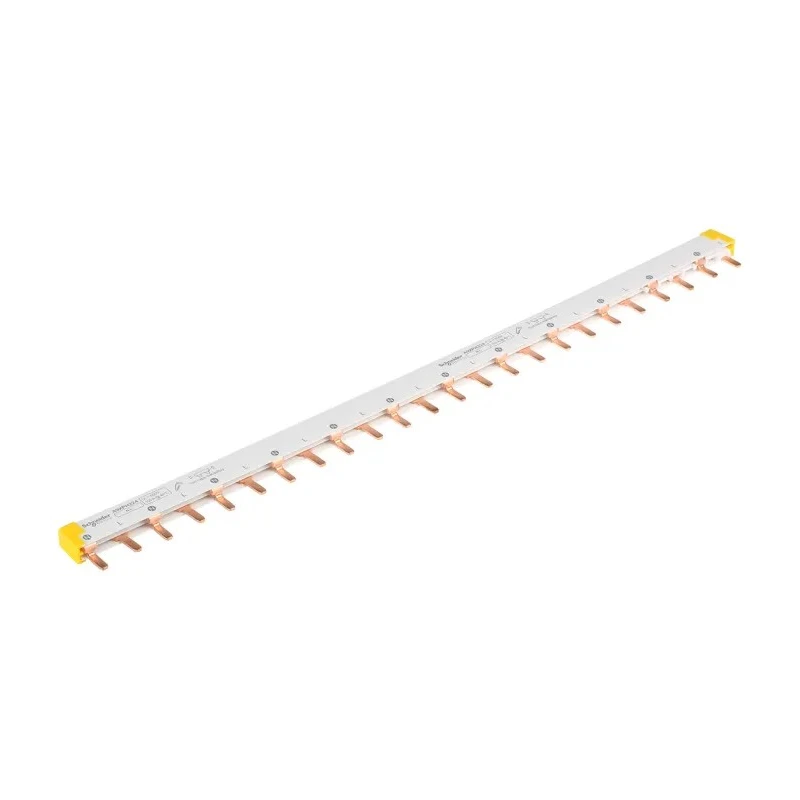

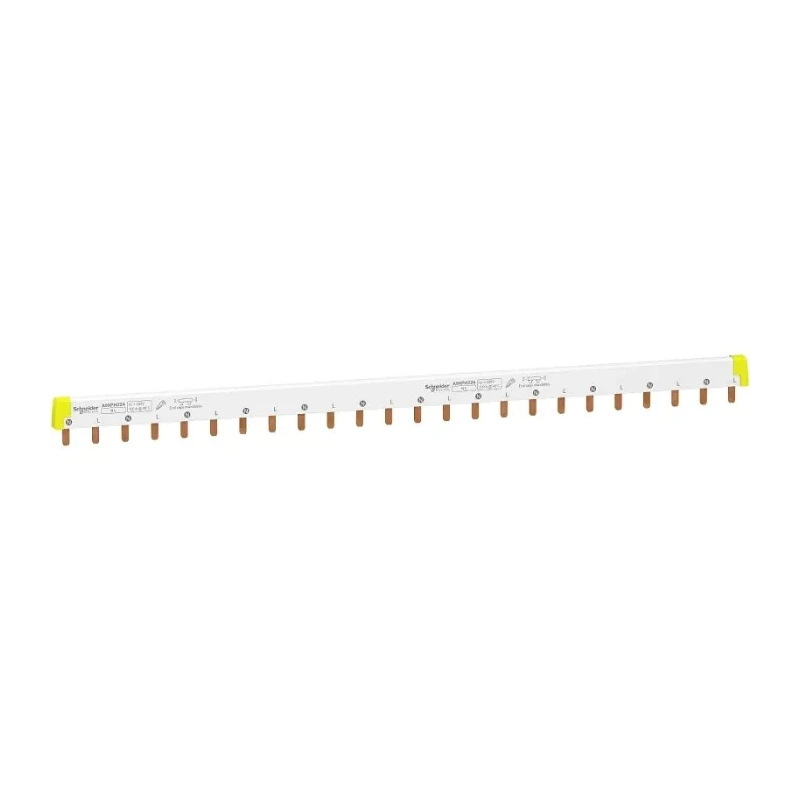

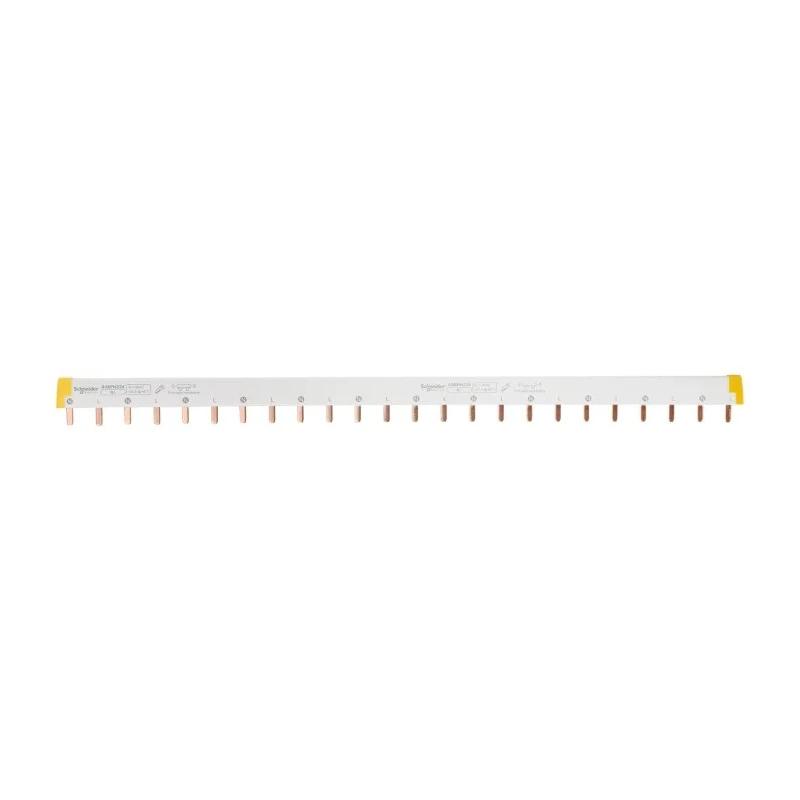

Schneider Electric Acti9 2 Phase Busbar, 415 V ac, 100A Current Rating, 18 mm Pitch, 24 Modules

Schneider Electric A9XPH224 2 Phase Busbar offers reliable power distribution with a rated operational voltage of 415 V ac and a current rating of 100A, designed to energize switch disconnectors safely and efficiently. This busbar features a pitch of 18 mm and supports up to 24 modules, enabling the linking of live and neutral terminals for up to 12 electrical devices.

Manufactured to meet IEC 61439-2 and IEC 60947-7-1 standards, it ensures compliance with international safety requirements. The white insulated body provides IP20 ingress protection when fitted with end-pieces and tooth covers, preventing accidental contact and providing a touch-proof solution.

Its robust construction includes fire resistance up to +960°C for 30 seconds, making it suitable for use in hazardous industrial environments such as process and packaging equipment, control panels, and material handling machinery. The busbar's metal components offer excellent conductivity and secure connection integrity.

The design allows the busbar length (430 mm) to be trimmed to fit smaller switchboard setups, enhancing application flexibility. Its compatibility range includes ISW-NA, ISW, IID K, IK60, IC60, and iID series devices.

Compatible with wide range of Schneider Electric devices for versatile installation. Meets stringent IEC standards for industrial use. Fire resistant material increases safety in extreme conditions. IP20 rating prevents ingress of solid objects and contact protection.

Flexible length supports custom switchboard design. High current rating supports demanding electrical loads. Manufactured in Germany following precise quality standards.

This product is ideal for industrial, HVAC, manufacturing, and automation sectors requiring dependable power distribution solutions. Explore more industrial electrical components and Busbars on EnvMart to support your next project.
