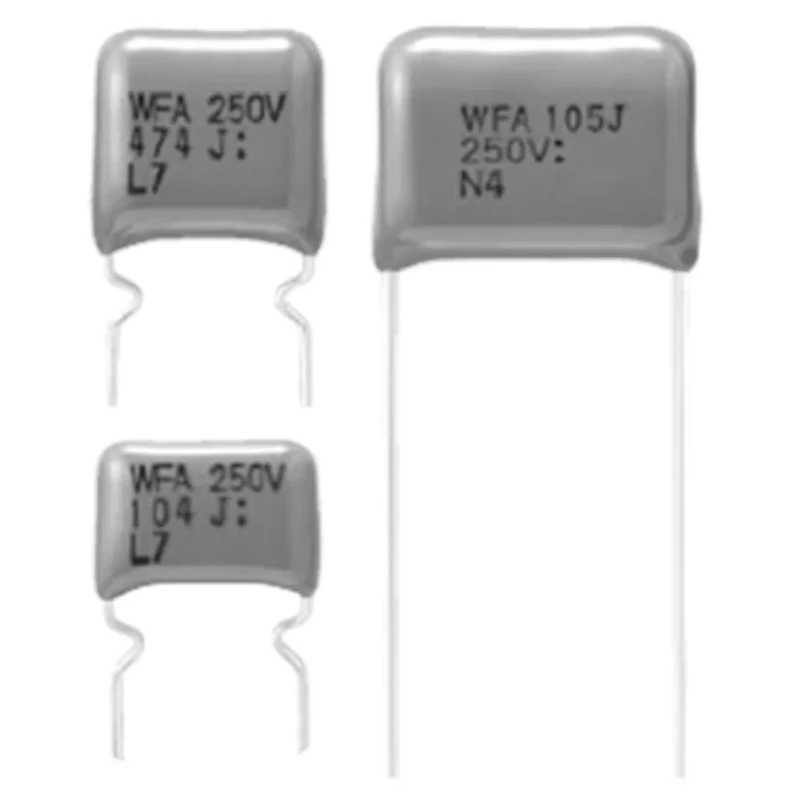

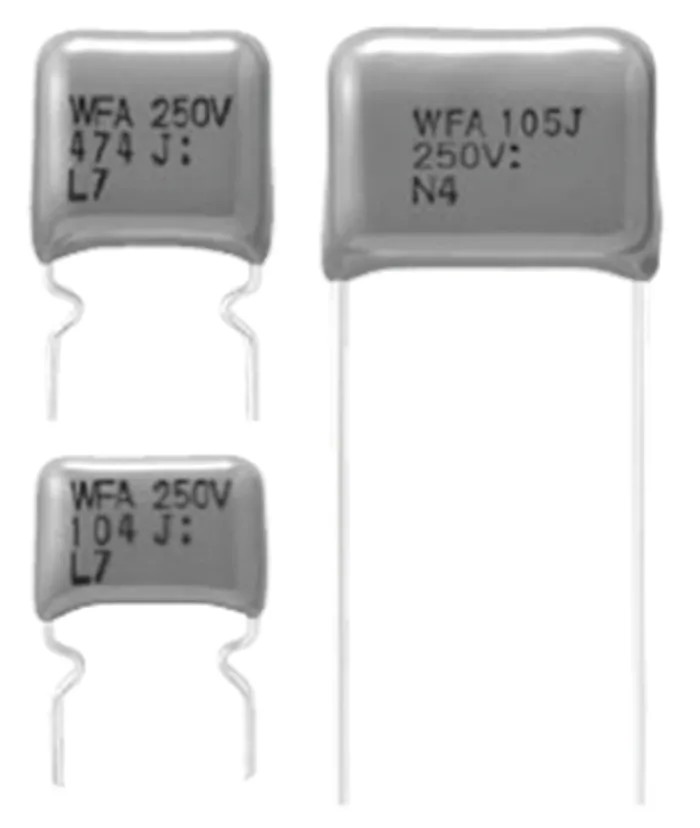

Panasonic ECWF(A) Film Capacitor, 330 nF, ±5 % Tolerance, 250 V DC, Through Hole Mount, Lead Pitch 10mm ECWF2334JAQ

Panasonic ECWF2334JAQ is a metallised polypropylene film capacitor designed for demanding high current and high frequency electronic circuit applications. It provides a capacitance of 330 nF with a tight tolerance of ±5 %, ensuring stable and reliable performance in circuits requiring signal filtering and energy storage.

This through-hole mount capacitor features a lead pitch of 10 mm for secure PCB installation and is encapsulated in a self-extinguishing material compliant with UL94V-0 requirements, enhancing safety in electronic devices.

Its operating temperature range from -40°C to 105°C makes it suitable for use in industrial, automotive, and consumer electronics environments where temperature resilience is crucial. The capacitor complies with key international safety standards including CSA E60384-14, EN 60384-14, and UL 60384-14.

The compact size - length 13 mm, width 7.3 mm, and height 20.9 mm - enables it to fit into densely packed circuit boards. It features a low dissipation factor of 0.1 %, minimizing energy loss in active filter circuits and high frequency applications.

This component is ideal for high current circuits, active filter circuits rated 250 V DC, and automotive grade applications certified to AEC-Q200 standards. Capacitance of 330 nanofarads suitable for precise filtering applications.

Mount type is through hole with a lead pitch of 10 mm for stable PCB mounting. Tolerance of ±5 % ensures consistent capacitance within specification limits. Rated for a continuous DC voltage of 250 V suitable for various electronic circuits.

Operating temperature ranges from -40°C to 105°C for reliable performance in harsh conditions. Compact dimensions: length 13 mm, width 7.3 mm, height 20.9 mm suitable for dense PCB layouts. Certified to CSA E60384-14, EN 60384-14, and UL 60384-14 safety and quality standards.

Features low dissipation factor of 0.1% enabling efficient energy use in circuits. Lead diameter of 0.6 mm and encapsulated in self-extinguishing UL94V-0 compliant material. Meets automotive standard AEC-Q200 ensuring suitability for automotive electronic applications.

This Panasonic film capacitor suits industrial electronics manufacturing, automotive electronic systems, telecommunication equipment, and high-performance active filter circuits. Explore the broad range of Film Capacitors at EnvMart for reliable and premium capacitor solutions tailored to your industrial and commercial electronic design needs.
