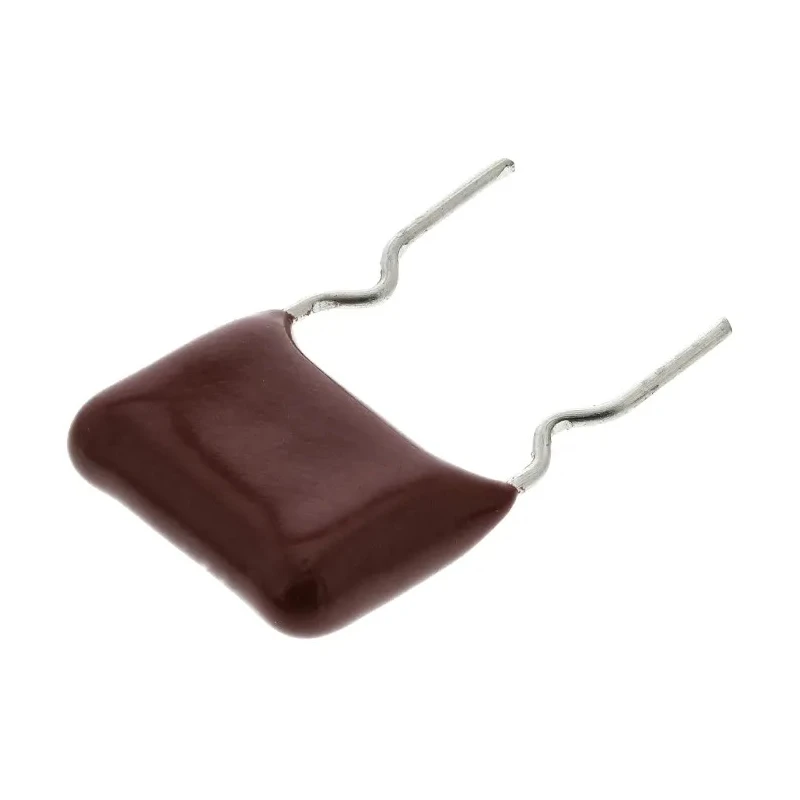

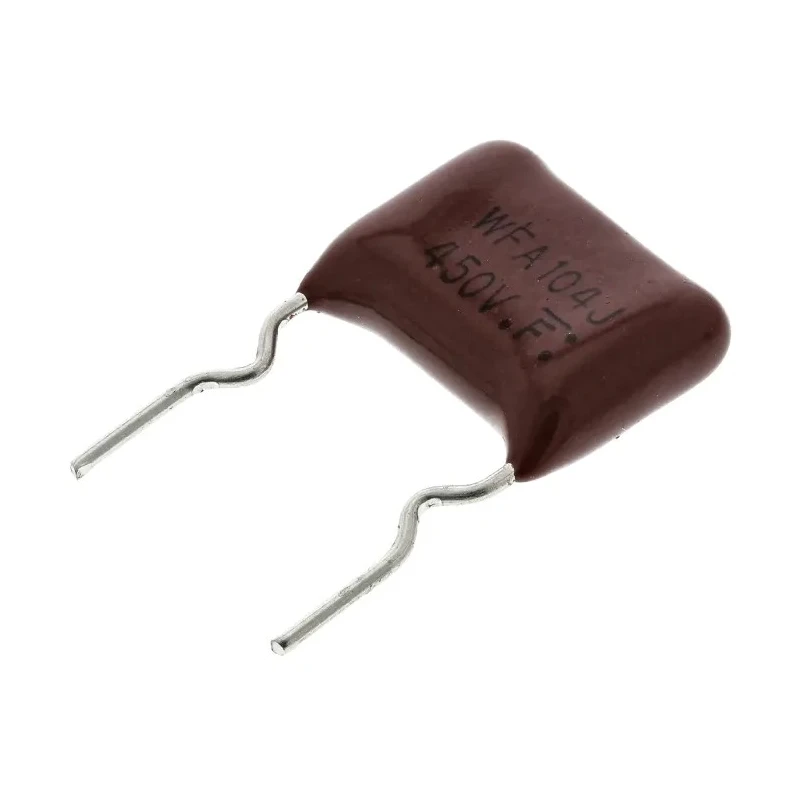

Panasonic ECWF(A) Film Capacitor 100nF 450 V dc Through Hole Mount ECWF2W104JAQ

Panasonic ECWF2W104JAQ is a high-quality metallised polypropylene film capacitor designed for demanding electronic applications requiring high frequency and high current performance. It offers a capacitance of 100nF and operates reliably at a rated DC voltage of 450 V. This capacitor is mounted using through hole techniques on circuit boards, allowing stable and durable installation.

The product features a tolerance of ±5 %, ensuring high precision in active filter circuits and power applications. Its compact dimensions of 18.8mm height, 13mm length, and 5.1mm width make it suitable for space-constrained designs. Certified to the stringent automotive standard AEC-Q200, it is ideal for automotive electronics and other high-reliability uses.

Designed to operate effectively across a temperature range from -40°C to 105°C, this capacitor withstands challenging environmental conditions. The low dissipation factor of 0.1% reduces energy losses, enhancing circuit efficiency. Lead pitch of 10mm and diameter of 0.6mm provide secure mechanical and electrical connections.

Safety approvals include CSA E60384-14, UL 60384-14, and EN 60384-14, ensuring compliance with international standards. The capacitor's powder resin coating and encapsulation in self-extinguishing material meeting UL94V-0 requirements add a layer of protection and reliability.

Capacitance value of 100nF suitable for various electronic applications. Rated voltage of 450 V dc ensures reliable performance under high voltage conditions. Manufactured with ±5 % tolerance for precision filtering tasks.

Encapsulated in a compact package with dimensions 18.8mm (H) x 13mm (L) x 5.1mm (W). Compliant with automotive standard AEC-Q200, suitable for automotive electronic systems. Operating temperature range from -40°C to +105°C extends usability in harsh environments.

Features low dissipation factor of 0.1% minimizing energy loss in circuits. Leads are through hole type with 10mm pitch and 0.6mm diameter for secure PCB mounting. Meets safety and quality standards CSA E60384-14, UL 60384-14, and EN 60384-14.

Offers compact size with powder resin coating for durability and safety.

This Panasonic ECWF2W104JAQ film capacitor is well-suited for industrial, automotive, electronic manufacturing, and high-frequency circuit applications. It ensures reliability, precision, and safety compliance for advanced circuit designs. Explore more Film Capacitors and components on EnvMart for your electronics projects.
