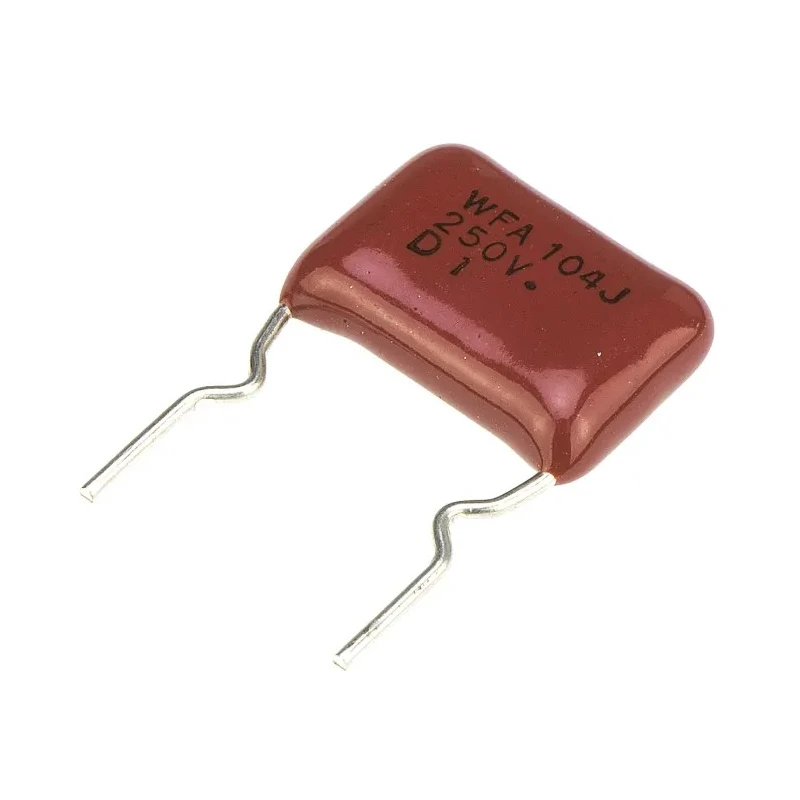

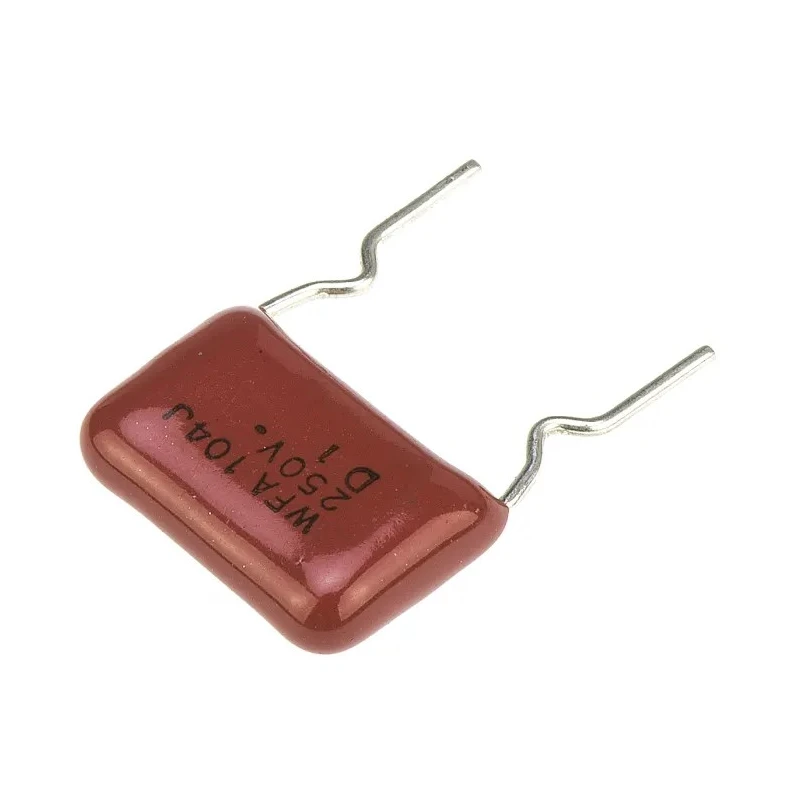

Panasonic ECWF(A) Film Capacitor 100nF 250V dc ±5% Tolerance Through Hole ECWF2104JAQ

Panasonic ECWF2104JAQ film capacitor is a metallized polypropylene film capacitor designed for demanding high frequency and high current circuit applications. It offers a capacitance of 100nF with a rated DC voltage of 250V and a capacitance tolerance of ±5%, ensuring precision in electronic circuits.

This capacitor features a robust through hole mounting design with a lead pitch of 10mm and lead diameter of 0.6mm, making it suitable for secure PCB installations. Its compact dimensions of 18.6mm height, 13mm length, and 5mm width provide space-efficient integration into electronic assemblies.

Manufactured to meet automotive industry standard AEC-Q200, this capacitor guarantees reliability in harsh operating environments. Additionally, it carries safety approvals CSA E60384-14, UL 60384-14, and EN 60384-14, demonstrating compliance with international safety standards.

Encapsulated in a self-extinguishing resin meeting UL94V-0, the capacitor ensures safe operation and protection against ignition risks. It functions reliably across a wide temperature range from -40°C up to 105°C, making it ideal for automotive and industrial electronics.

The Panasonic ECWF series capacitors are engineered for low noise and low losses, providing excellent frequency characteristics which are critical in active filter circuits and other high-performance electronic applications.

Offers a tight ±5% capacitance tolerance for precision applications. Constructed with metallized polypropylene film for low loss and excellent frequency response. Features a compact size with dimensions of 18.6mm height, 13mm length, and 5mm width.

Meets automotive standard AEC-Q200 and safety approvals CSA E60384-14, UL 60384-14, and EN 60384-14. Operates reliably in temperature range from -40°C to 105°C. Designed with 10mm lead pitch and 0.6mm lead diameter for through hole mounting.

Encapsulated in self-extinguishing material complying with UL94V-0 standard for safety. Suitable for use in active filter circuits, high current, and high frequency environments.

This film capacitor finds applications in industrial, automotive, and electronic manufacturing sectors, particularly in circuits requiring stable capacitance and high current handling capability. It supports efficient power electronic designs with minimal noise interference and enhanced reliability.
