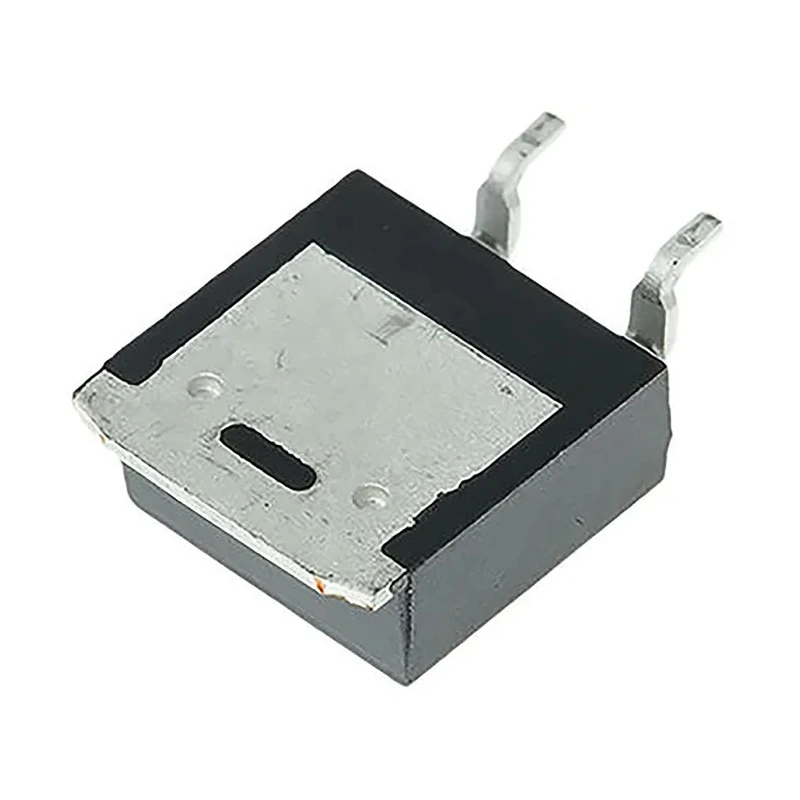

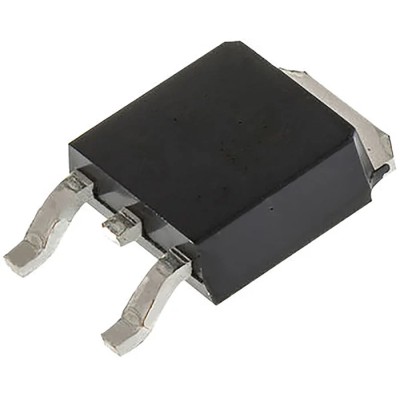

STMicroelectronics 200V 8A Surface Mount Switching Diode TO-252 3-Pin DPAK STTH1002CB

STMicroelectronics STTH1002CB is a high-performance switching diode designed for demanding electronic and industrial power applications. This surface mount diode is housed in a TO-252 3-pin DPAK package, enabling efficient heat dissipation and ease of PCB mounting.

The diode supports a maximum continuous forward current of 8 amperes, making it suitable for circuits requiring reliable high current handling. Its peak reverse repetitive voltage rating of 200 volts enables operation in high-voltage switching scenarios, including rectification and power conversion systems.

STTH1002CB features a fast recovery time of 25 nanoseconds, which makes it ideal for switching applications where rapid diode turn-off is critical to reduce switching losses and improve system efficiency. The device exhibits a low peak reverse current of 5 microamperes, minimizing leakage and power loss during operation.

This diode is specified to operate across a wide temperature range from -65 degrees Celsius up to 175 degrees Celsius, ensuring stable performance in harsh industrial environments, including automotive and power electronics systems. Its compact package size of 6.6 mm length, 6.2 mm width, and 2.4 mm height offers space-saving advantages for dense PCB layouts.

The STTH1002CB diode is configured with a common cathode and designed to withstand peak non-repetitive forward surge currents up to 50 amperes, providing robustness during transient load conditions. These specifications make it suitable for use in power supplies, inverters, motor drivers, and other power switching circuits.

Intended for industrial, electronic component manufacturing, and power management applications, this diode delivers dependable switching performance while facilitating efficient integration due to its surface mount package.

Maximum continuous forward current of 8A for robust performance. Peak reverse repetitive voltage rated at 200V to handle high voltage switching. Low peak reverse current at 5μA ensuring minimal leakage. Compact TO-252 package with 3-pin DPAK configuration for surface mounting.

Operating temperature range from -65°C to 175°C suitable for harsh environments. Fast peak reverse recovery time of 25ns for high-speed switching applications. Maximum forward voltage of 1.25V at rated current ensuring efficiency.

Designed with common cathode diode configuration optimizing circuit design. Peak non-repetitive forward surge current of 50A for transient tolerance. Dimensions: Length 6.6mm, Width 6.2mm, Height 2.4mm for compact circuit layouts.
