| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 0.6mm |
| Length | 1.2mm |
| Model | BAT54KFILM |
| Width | 0.8mm |
| Mount Type | Surface |
| Series | BAT54 |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-523 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 300mA |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1A |
| Maximum Forward Voltage Vf | 900mV |
| Peak Reverse Recovery Time trr | 5ns |

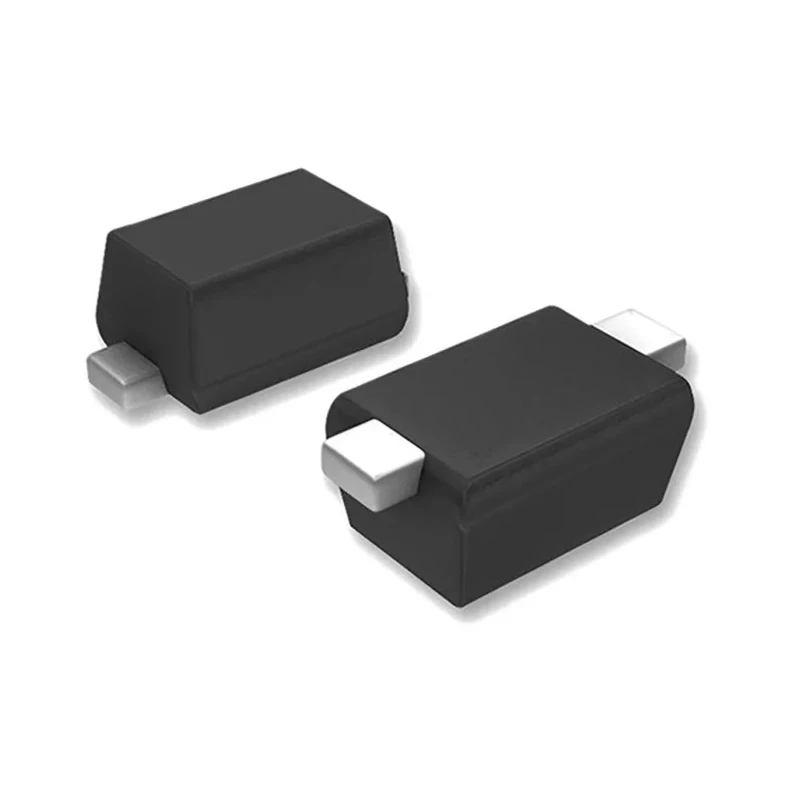

STMicroelectronics BAT54KFILM is a high-performance Schottky barrier diode designed for applications requiring low power loss and fast switching capabilities. It is housed in a compact 2-pin SOD-523 surface mount package measuring 1.2 mm in length, 0.8 mm in width, and 0.6 mm in height. This diode supports a maximum continuous forward current of 300 mA and a peak reverse repetitive voltage of 40 V.
Designed for industrial, electronic, and power control applications, it offers a peak non-repetitive forward surge current of up to 1 A and a minimal peak reverse current leakage of 1 μA, ensuring reliable operation and low power dissipation. It operates efficiently over a temperature range from -40°C to 150°C, making it suitable for harsh operating environments.
The BAT54KFILM features a fast peak reverse recovery time of only 5 nanoseconds, enabling applications in high-speed switching circuits such as power supplies, solar battery chargers, and RF circuits. It belongs to the BAT54 series of Schottky diodes, which are well-regarded for their high power density and efficiency.
High efficiency Schottky barrier diode. Maximum continuous forward current of 300 mA. Peak reverse repetitive voltage of 40 V. Compact 2-pin SOD-523 surface mount package. Operating temperature range -40°C to 150°C. Peak non-repetitive forward surge current of 1 A.
Peak reverse current of 1 μA. Fast reverse recovery time of 5 ns. Single diode configuration. No automotive standard compliance.
This Schottky diode is ideal for use in industrial electronics, power conversion devices, and high-frequency switching circuits. Its low forward voltage and transient tolerance make it suitable for applications demanding efficiency and compactness.
EnvMart offers this STMicroelectronics BAT54KFILM diode along with a wide range of semiconductor components, catering to your industrial and manufacturing needs.
Explore more products in our Schottky Diodes & Rectifiers category.
