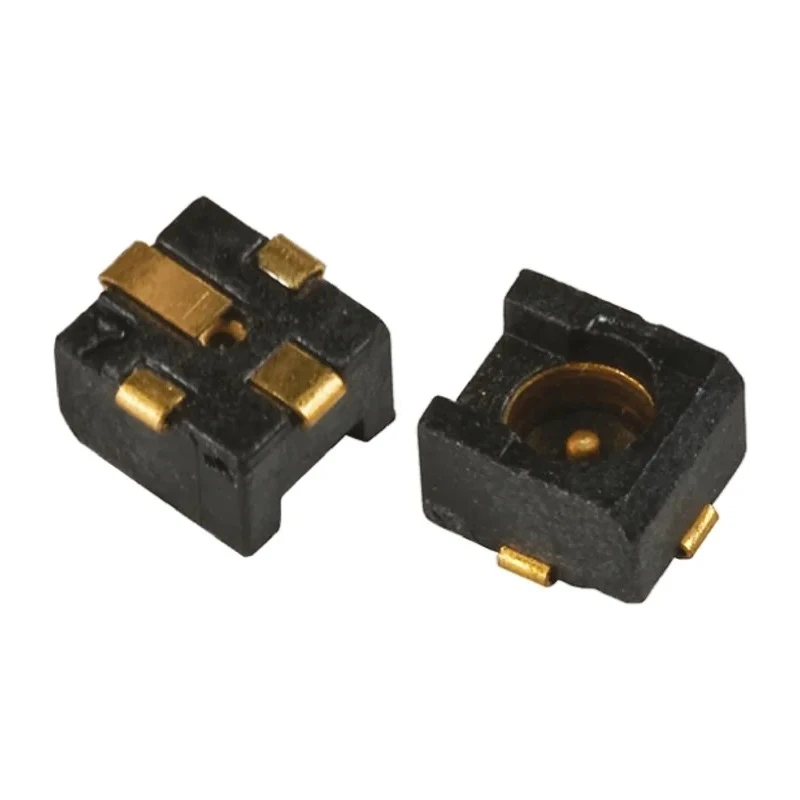

TE Connectivity OSMT Series Coaxial Connector Surface Mount Male 50 Ω Straight Body Solder 1055687-1
Specifications
| Country of Origin | United States |
|---|---|
| Size | Standard |
| Brand | TE Connectivity |
| Orientation | Straight |
| Mount Type | Surface |
| Operating Frequency | 6GHz |
| Contact Material | Copper Alloy |
| Series | OSMT |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold over Nickel |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | OSMT |
| Body Plating | Gold |
Key Features
- Complies with OSMT series specifications for reliable performance.
- Gold plated body and copper alloy contacts ensure durability and corrosion resistance.
- Operates up to 6 GHz frequency with stable impedance matching.
- Wide operating temperature range from -65°C to 125°C suitable for various environments.
- Termination type is solder, providing secure electrical connection.
- Standard size with normal polarity and male contact gender.
- Ideal for telecommunications, GPS, consumer and automotive electronics.
- Provides reliable grounding and PCB retention with microstrip mounting pattern.
Product Description
TE Connectivity 1055687-1 OSMT Series Coaxial Connector is designed for surface mount applications requiring high reliability and precision. It features a male connector with a standard size and straight orientation, optimized for impedance matching at 50 Ω.
Constructed with a copper alloy contact material plated with gold over nickel and a gold-plated body, this connector offers excellent conductivity and corrosion resistance suitable for industrial, telecommunication, GPS, consumer electronics, and automotive uses.
This connector supports operating frequencies up to 6 GHz and functions effectively across a temperature range of -65°C to 125°C, ensuring durable performance in harsh and varying environments.
The connector employs a solder termination type that guarantees secure connection on PCB surfaces. It maintains a normal polarity and is part of the OSMT series known for microstrip mounting patterns that provide reliable grounding and retention on PCBs.
The TE Connectivity OSMT Series Coaxial Connector enables effective signal transmission with a fully mated height off PCB of 4.20 mm, suitable for applications requiring compact and efficient RF coaxial connections.
Complies with OSMT series specifications for reliable performance. Gold plated body and copper alloy contacts ensure durability and corrosion resistance. Operates up to 6 GHz frequency with stable impedance matching. Wide operating temperature range from -65°C to 125°C suitable for various environments.
Termination type is solder, providing secure electrical connection. Standard size with normal polarity and male contact gender. Ideal for telecommunications, GPS, consumer and automotive electronics. Provides reliable grounding and PCB retention with microstrip mounting pattern.
Explore more Coaxial Connectors and accessories from TE Connectivity in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a maximum frequency of 6 GHz, ensuring stable impedance matching for various applications.
It functions effectively across a wide temperature range from -65°C to 125°C, making it suitable for diverse environments.
The connector employs a solder termination type, providing a secure electrical connection on PCB surfaces.
It is designed for a standard impedance of 50 Ω, which is optimal for various RF applications.
The connector features a copper alloy contact material that is plated with gold over nickel, ensuring excellent conductivity and corrosion resistance.
This model has a straight orientation, which is standard for coaxial connectors.
It is classified as a standard size connector, making it compatible with various mounting applications.
It features a microstrip mounting pattern that provides reliable grounding and retention on printed circuit boards.
The connector has a male contact gender, suitable for mating with female connectors in various applications.
The country of origin for this connector is the United States.
It is ideal for telecommunications, GPS, consumer electronics, and automotive applications, providing reliable signal transmission.
The body of the connector is plated with gold, which enhances its durability and corrosion resistance.
