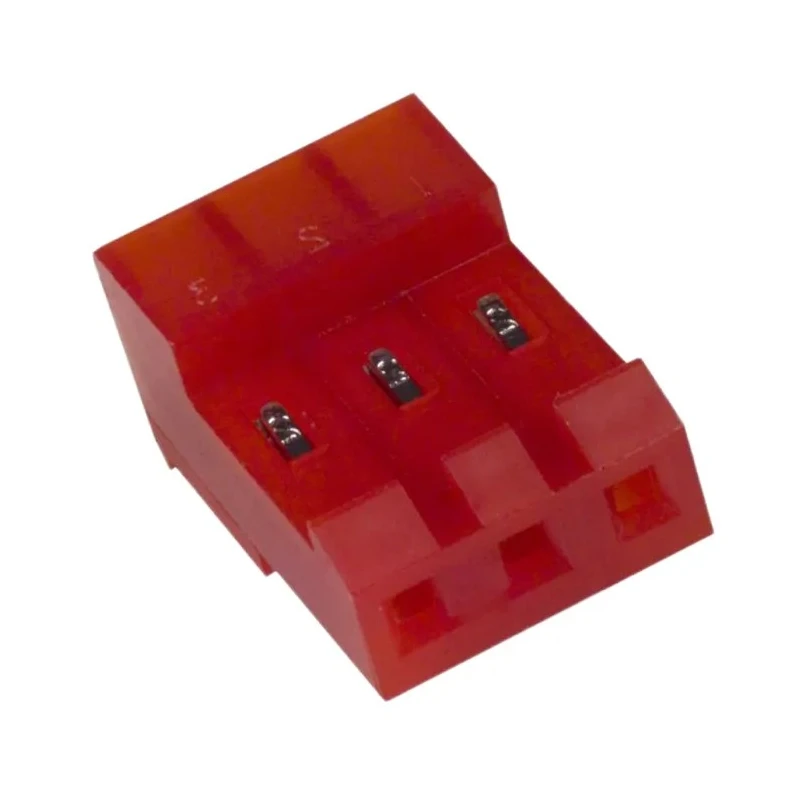

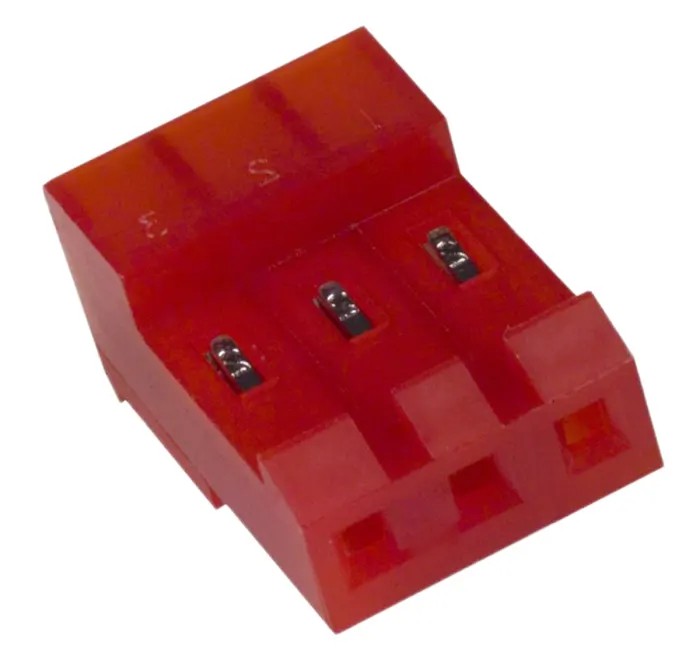

TE Connectivity 3-Way IDC Connector Female for Cable 1 Row 3.96mm Pitch 7A 600V AC MTA-156 3-640428-3
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V ac |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 7A |
| Mount Type | Cable |
| Housing Material | Nylon |
| Contact Material | Copper |
| Series | MTA-156 |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 3.96mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 3 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Shrouded |
Key Features
- The connector features 3 contacts in a single row and supports currents up to 7 A.
- It is rated for 600V AC voltage and constructed with a shrouded female housing made from durable nylon material.
- The IDC termination technology allows quick assembly without wire stripping, compatible with 18 to 26 AWG wire sizes.
- Contacts are tin plated over nickel and made from copper, ensuring optimal conductivity and corrosion resistance.
- The connector operates reliably in temperatures ranging from -55°C to 105°C.
- Its right-angle cable mount orientation facilitates space-saving configurations in compact applications.
- The MTA-156 system includes locking ramps and polarization tabs to prevent reverse mating and ensure secure connections.
- This connector is suitable for industrial, electronic, and power applications requiring robust and easy-to-install connectors.
Product Description
TE Connectivity 3-640428-3 3-Way IDC Connector Female for Cable, part of the MTA-156 series, offers a high-performance interconnection solution designed for industrial and electronic applications. With a 3.96 mm pitch and single row format, it supports 3 contacts rated at 7 A current and 600V AC voltage, suited for reliable signal and power transmission.
Constructed with a shrouded female connector housing made from white nylon 6/6 UL94V-2 material, this connector provides excellent mechanical strength and electrical insulation. The IDC (insulation displacement contact) termination type enables fast and cost-effective assembly by eliminating the need for wire stripping, supporting stranded discrete wire sizes from 18 to 26 AWG.
The contacts are copper-based with a matte tin plating over nickel, ensuring durability and resistance to corrosion. The connector's operating temperature range of -55°C to 105°C makes it ideal for harsh environments and varied industrial use cases.
Designed with right angle cable mount orientation, the connector saves space on PCBs or wiring assemblies. Locking ramps and polarization tabs enhance connection security by preventing accidental disconnection and improper mating.
This TE Connectivity IDC Connector is widely used in electronic components, power connectors, and other wire-to-wire and wire-to-board applications, supporting efficient manufacturing and maintenance in sectors including industrial automation, HVAC, communication equipment, and consumer electronics.
The connector's 3 contacts with a pitch of 3.96 mm allow compact and precise mating. Current rating of 7 A and voltage of 600 V AC guarantee safe and stable electrical performance. Durable nylon housing and copper contacts with tin plating assure long service life.
Broad temperature range from -55°C to 105°C provides versatility across environments. IDC termination technology streamlines assembly and lowers production cost. Discover a wide range of TE Connectivity products and connectors at EnvMart for all your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This IDC connector has a current rating of 7 A.
It is rated for 600V AC voltage.
The contacts in this connector have a pitch of 3.96 mm.
This model supports stranded discrete wire sizes from 18 to 26 AWG.
The housing is constructed from nylon, specifically white nylon 6/6 UL94V-2 material.
It operates reliably in temperatures ranging from -55°C to 105°C.
This connector features 3 contacts in a single row.
It uses insulation displacement contact (IDC) termination technology.
The connector has a right-angle cable mount orientation.
The contacts are made from copper and are plated with tin over nickel.
It includes locking ramps and polarization tabs to prevent reverse mating and ensure secure connections.
It is suitable for industrial, electronic, and power applications requiring robust and easy-to-install connectors.
