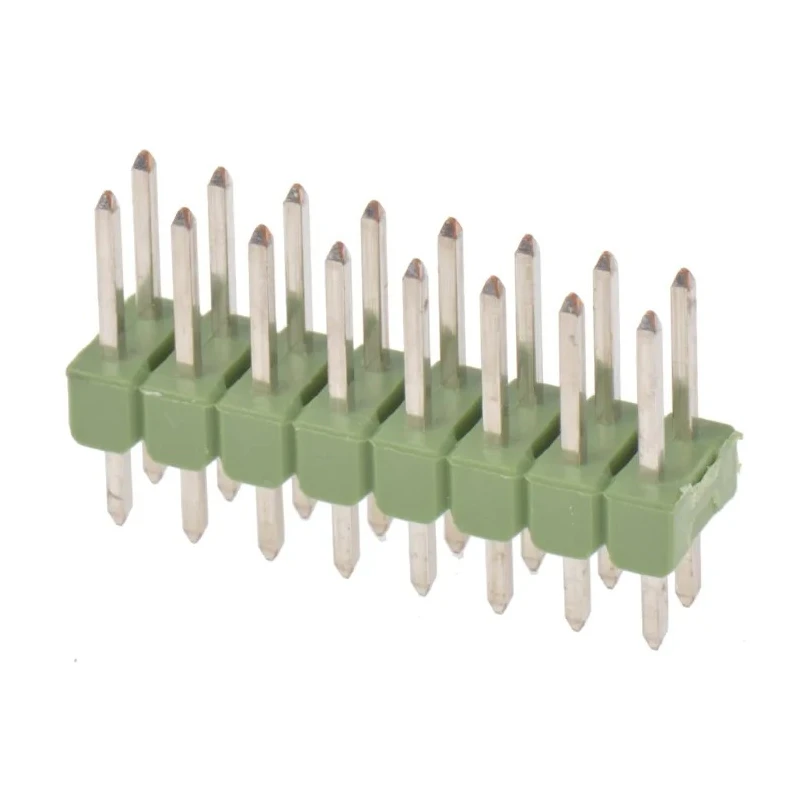

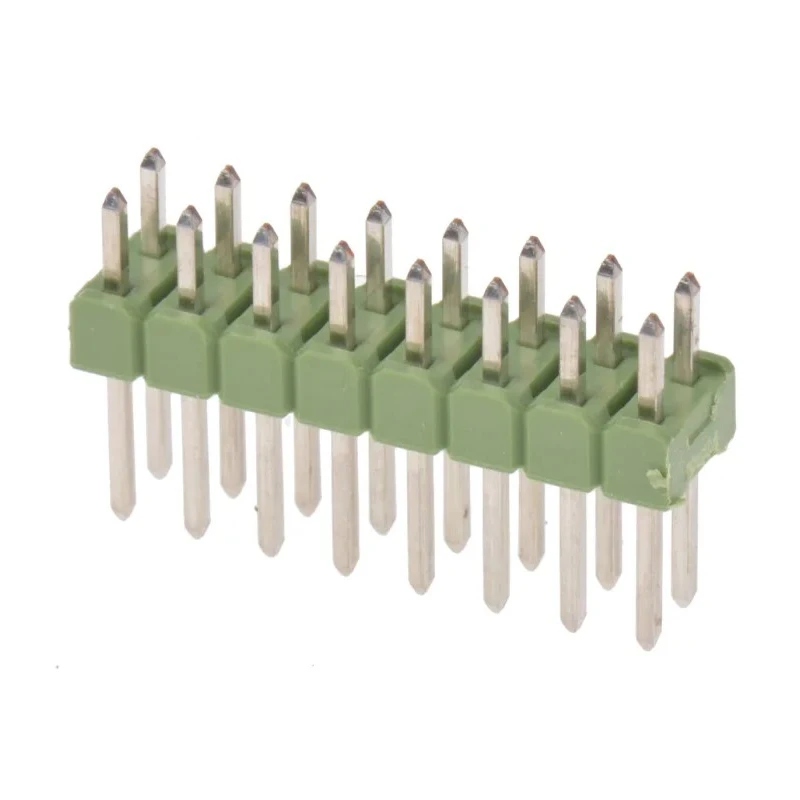

TE Connectivity AMPMODU MOD II Series 16 Contact Straight Through Hole Pin Header, 2.54 mm Pitch, 2 Row, Unshrouded 826942-8

TE Connectivity 826942-8 AMPMODU MOD II Series Straight Through Hole Pin Header offers a reliable and economical interconnect solution with 16 contacts arranged in a 2-row, 2.54 mm pitch configuration. The unshrouded design allows for easy soldering and adaptability to various PCB layouts.

Constructed with brass contacts featuring tin plating for excellent electrical performance and corrosion resistance, and a Polybutylene Terephthalate housing for mechanical strength and insulation, this connector is engineered for demanding industrial environments.

Rated at 3A current and a maximum voltage of 750V, it operates reliably within temperatures ranging from -65°C to 105°C. The pin header utilizes a through hole mount type with a straight orientation and is equipped with male contacts, featuring a tail pin length of 3.2mm and a mating pin length of 5.8mm.

This pin header series allows for breakaway customization to the needed size, enhancing installation efficiency and labor cost savings. Its versatile applications include automotive controls, industrial and test equipment, telecommunications, medical instruments, computer hardware, and storage solutions.

The pin header is constructed with brass contacts plated in tin for reliable conductivity. Housing is made of durable Polybutylene Terephthalate ensuring stability and insulation. Rated for 3A current and 750V voltage maximum for safe high-performance operation.

Wide temperature range enables use in extreme environmental conditions. Through hole mounting and straight orientation optimize PCB assembly. Unshrouded design allows flexible wiring and assembly options. Breakaway capability permits size customization to fit various project requirements.

Widely used in automotive, industrial, telecommunications, medical, and computing applications.

This product is ideal for industrial, electronic manufacturing, laboratory testing, and telecommunications applications requiring robust and adaptable PCB interconnections. Explore more TE Connectivity PCB headers and connectors at EnvMart for your electronic component needs.
