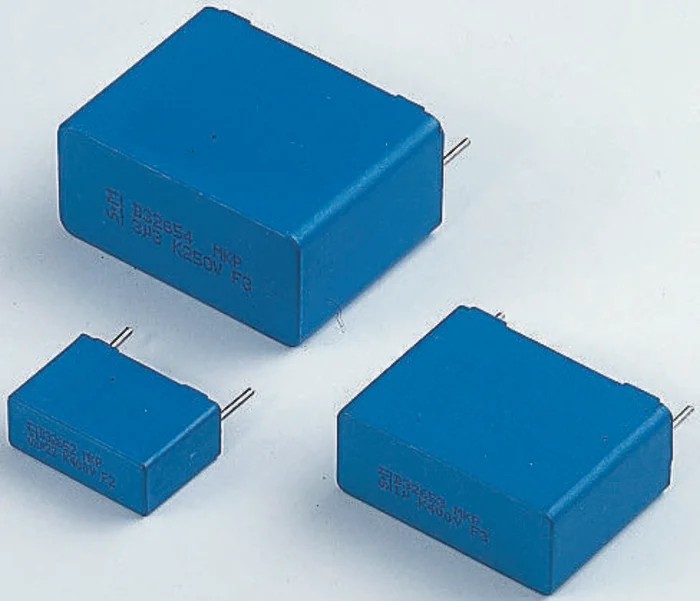

TDK Film Capacitor 68nF 250V AC 1kV DC Through Hole Wound Plastic Case Epoxy Resin B32653A0683K189

Free Delivery in India | Lowest Global Shipping Charges

TDK Film Capacitor 68nF 250V AC 1kV DC Through Hole Wound Plastic Case Epoxy Resin B32653A0683K189



Category Film Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Height	15mm
Length	26.5mm
Model	B32653A0683K189
Width	6mm
Mount Type	Through Hole
Series	B32653
Maximum Operating Temperature	100°C
Capacitance	68nF
Standards/Approvals	RoHS, UL
Pin Count	2
Rated AC Voltage	250V ac
Rated DC Voltage	1kV dc
Lead Pitch	22.5mm
Lead Diameter	0.8mm
Automotive Standard	AEC-Q200 Rev D

Key Features

Constructed with wound capacitor technology featuring internal series for voltage ratings ≥1250V DC.
Encased in flame retardant plastic case compliant with UL 94 V-0 standards and sealed with epoxy resin.
Rated AC voltage of 250V and DC voltage of 1kV ensuring application versatility.
Compact dimensions with length 26.5mm, height 15mm, width 6mm, and 22.5mm lead pitch for PCB mounting.
Operates reliably at maximum temperature of 100°C with 0.8mm lead diameter and 2-pin configuration.
Complies with RoHS and UL standards and meets automotive standard AEC-Q200 Rev D.
Ideal for TV S-correction, TV flyback circuits, and electronic ballast applications.

Product Description

TDK B32653A0683K189 Film Capacitor is a high-quality passive electronic component designed to provide stable capacitance of 68nF with a rated AC voltage of 250V and a rated DC voltage of 1kV. The capacitor is constructed using wound capacitor technology that incorporates an internal series connection, suitable for voltage ratings of 1250V DC and above. Its plastic casing, compliant with UL 94 V-0 flame retardant standards, is sealed using epoxy resin to ensure durability and safety during operation.

This through-hole mount capacitor features a lead pitch of 22.5mm, a lead diameter of 0.8mm, and a 2-pin configuration, making it suitable for secure PCB assembly. Its compact physical dimensions are 26.5mm in length, 15mm in height, and 6mm in width, enabling integration into densely packed electronic circuits.

Designed to withstand high pulse strength and ensure reliable electrical contact, it operates efficiently at temperatures up to 100°C. The TDK B32653 series capacitor adheres to stringent RoHS and UL standards and fulfills the automotive industry standard AEC-Q200 Rev D, validating its reliability in automotive and industrial environments.

Common applications include high-frequency correction in television sets (TV S-correction), TV flyback transformers, and electronic ballast circuits, where stability and pulse endurance are critical. This capacitor supports demanding industrial, commercial, and electronic manufacturing uses, emphasizing quality and long operational life.

Wound capacitor technology with internal series connection for voltage ≥1250V DC. Plastic case flame retardant to UL 94 V-0 and epoxy resin sealing for robustness. Rated AC voltage of 250V and rated DC voltage of 1kV for versatile applications.

Lead pitch 22.5mm with 0.8mm lead diameter and 2 pins for through-hole mounting. Dimensions: 26.5mm length, 15mm height, and 6mm width for compact PCB layout. High pulse strength and contact reliability, suitable for TV and ballast circuits.
